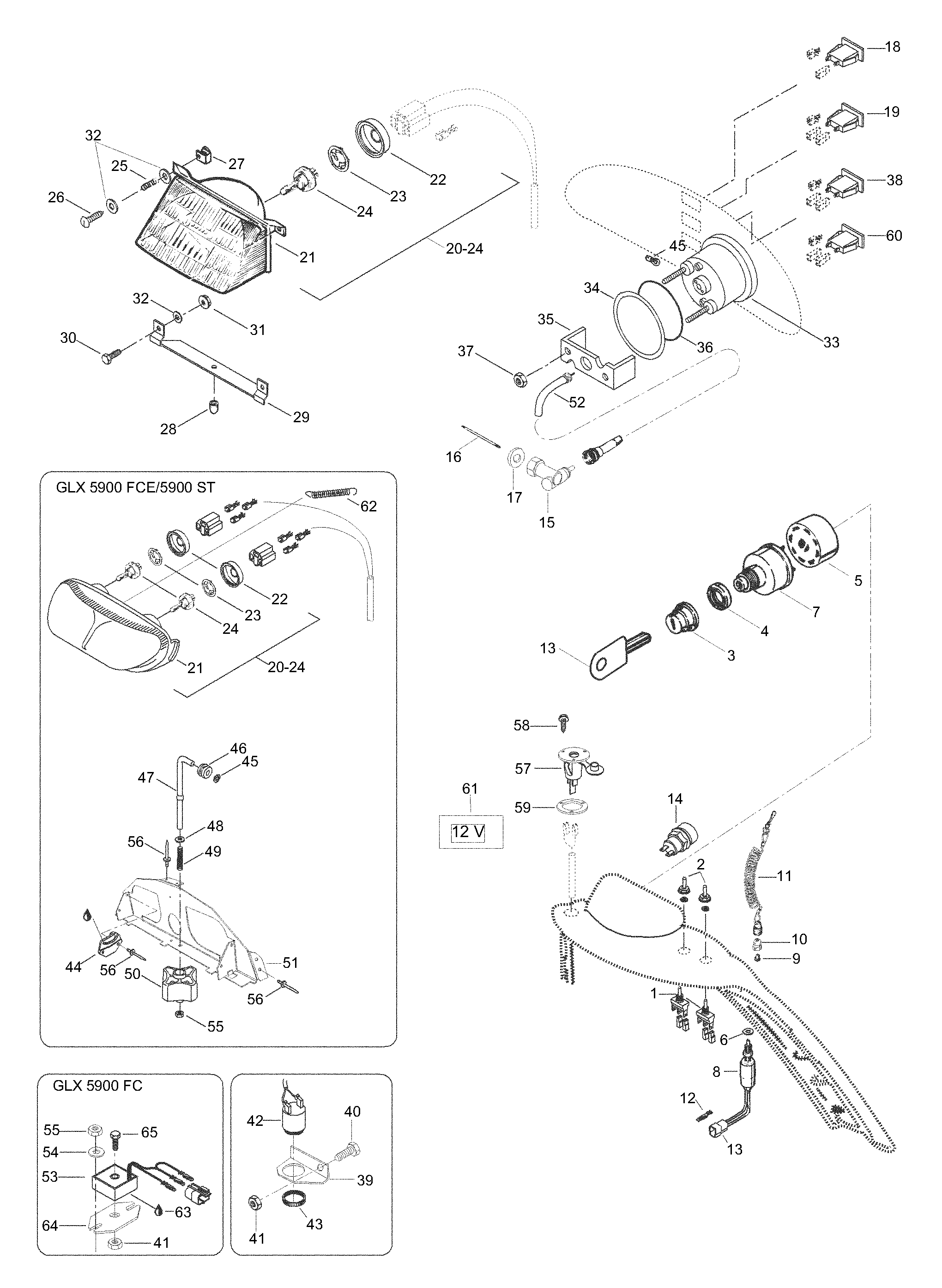

10- Electric для BRP Lynx 5900 ST - 2001
-
№АртикулНазвание
-
1410110700 SwitchSwitch
-
2515175281 CoverCover
-
3570013700 BootBoot
-
4410112100 Face nutFace nut
-
5572150700 Ignition blockIgnition block
-
620005 WasherWasher
-
742019 Ignition switchIgnition switch
-
8410106700 Brake switchBrake switch
-
9570151100 Plunger capPlunger cap
-
10515145900 Switch nutSwitch nut
-
11515151500 Cap assyCap assy
-
1242031 ConnectorConnector
-
1342122 Connector housingConnector housing
-
1535021 Angle gear 1:1.4Angle gear 1:1.4
-
1645075 Square pin 75mmSquare pin 75mm
-
175444186 GasketGasket
-
18410109600 Pilot lamp (HeadlamPilot lamp (Headlam
-
19410109500 Pilot lamp (Oil level)Pilot lamp (Oil level)
-
21515175158 HeadlampHeadlamp
-
22410607100 Protector capProtector cap
-
23410608300 Bulb holderBulb holder
-
2442263 Halogen bulb HS1Halogen bulb HS1
-
33515175335 Speedometer, whiteSpeedometer, white
-
34517258500 WasherWasher
-
35414806500 SupportSupport
-
36414807100 O-ringO-ring
-
3733062 Nut elastic M5Nut elastic M5
-
44517289400 L.H.Headlamp supp.L.H.Headlamp supp.
-
44517289300 R.H.Headlamp supp.R.H.Headlamp supp.
-
45732610072 Nut pushNut push
-
46415100800 GrommetGrommet
-
475446849 Adjuster rodAdjuster rod
-
48234061410 WasherWasher
-
49415100600 SpringSpring
-
50515175548 HandleHandle
-
515246671 Support plateSupport plate
-
525344162 Speedometer cableSpeedometer cable
-
5533010 Nut elastic M6Nut elastic M6
-
5636005 RivetRivet
-
5742023 Flush Mounted SockFlush Mounted Sock
-
5840856 Screw 2,9x13Screw 2,9x13
-
595443941 FlangeFlange
-
60410109700 Pilot lamp, heatPilot lamp, heat
-
625445737 SpringSpring
