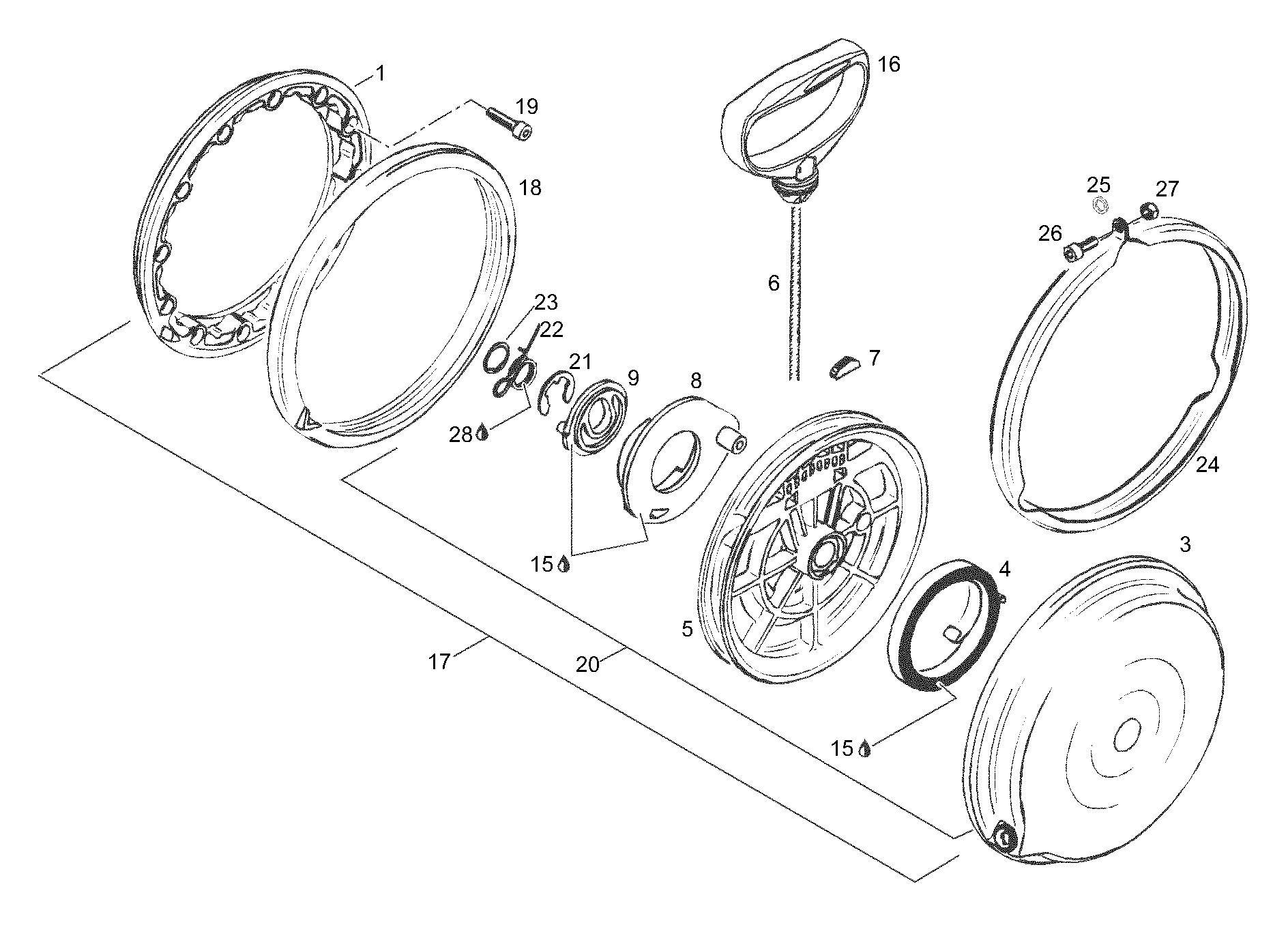

04- Rewind Starter для BRP Lynx 5900 ST - 2001
-
№АртикулНазвание
-
1420810860 Connecting flangeConnecting flange
-
3420810876 Starter housing assyStarter housing assy
-
4420939115 Rewind spring assyRewind spring assy
-
5420852284 Rope sheaveRope sheave
-
6420852491 Starter rope 2,2mStarter rope 2,2m
-
6412500100 Starting rope 30mStarting rope 30m
-
7420852070 Key clampKey clamp
-
8420852296 PawlPawl
-
9420852302 Pawl lockPawl lock
-
16572084400 Starter gripStarter grip
-
17420887444 Rewind starter assyRewind starter assy
-
18420860950 Damper ringDamper ring
-
19420840861 Allen screw M6x25Allen screw M6x25
-
20420887443 Rewind starter assyRewind starter assy
-
21420845300 Retaining ringRetaining ring
-
22420938986 Locking springLocking spring
-
23420945770 Retaining ringRetaining ring
-
24420851330 ClampClamp
-
25420944310 Distance washerDistance washer
-
26420241236 Allen screw M6x16Allen screw M6x16
-
27420842040 Nut elastic M6Nut elastic M6
-
28420297433 Slide pasteSlide paste
