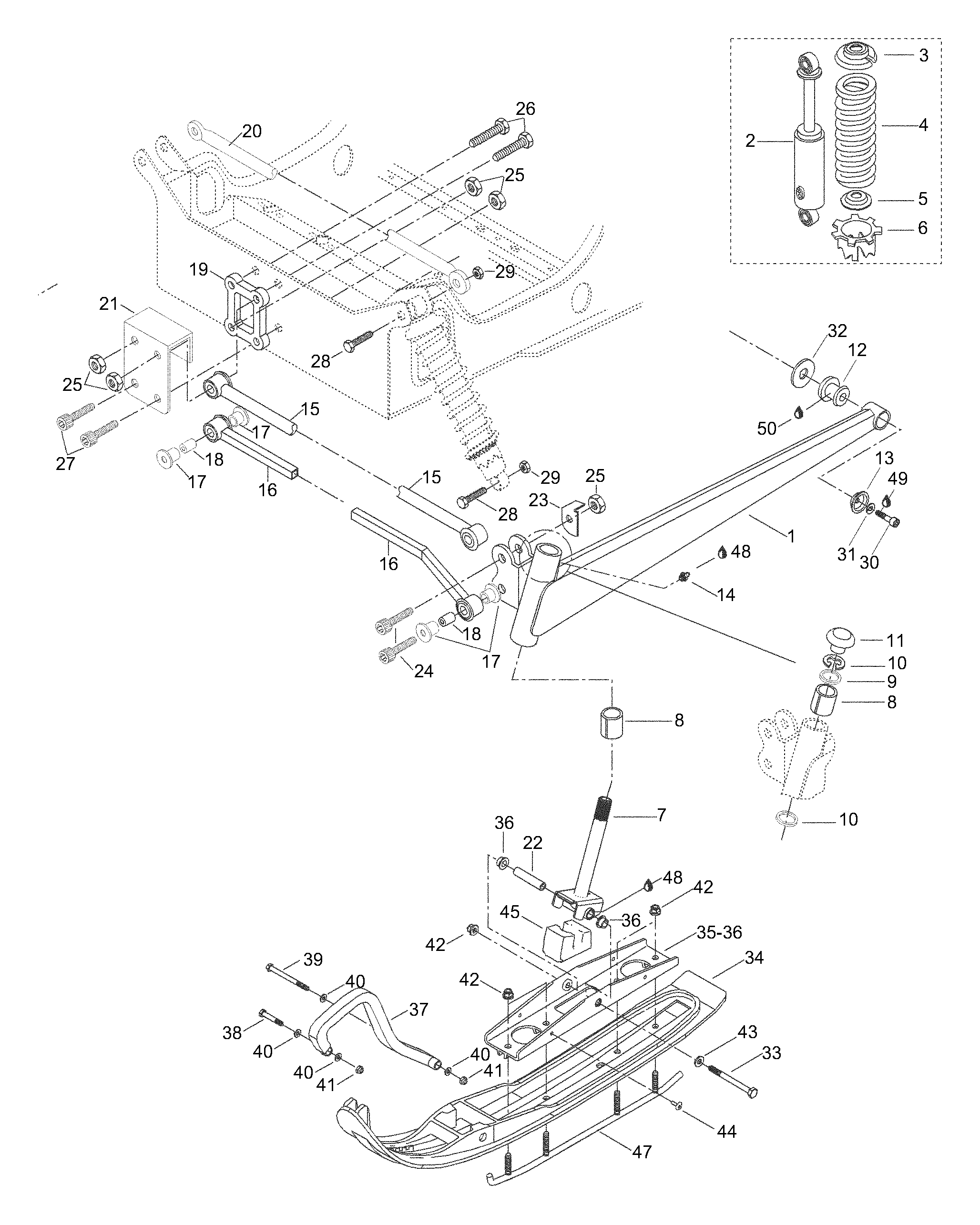

08- Front Suspension для BRP Lynx 5900 ST - 2001
-
№АртикулНазвание
-
15246403 R.H. Swing armR.H. Swing arm
-
15246402 L.H. Swing armL.H. Swing arm
-
223225 ShockShock
-
35340862 Spring stopperSpring stopper
-
4250252 SpringSpring
-
523177001 Spring guideSpring guide
-
623176001 CamCam
-
7506151234 Ski legSki leg
-
8572069900 CushionCushion
-
920091 WasherWasher
-
10371910400 CirclipCirclip
-
11572091300 CapCap
-
12506151233 DamperDamper
-
13506115800 CupCup
-
1434011 Grease fittingGrease fitting
-
155345902 Arm assyArm assy
-
165245228 Arm Lower WeldArm Lower Weld
-
17506149100 SleeveSleeve
-
18506149200 SleeveSleeve
-
195345384 SpacerSpacer
-
205345741 BarBar
-
215345716 PlatePlate
-
22506133300 SleeveSleeve
-
235445914 R.H LimiterR.H Limiter
-
235445915 L.H LimiterL.H Limiter
-
2440371 Allen screw M12x55Allen screw M12x55
-
2533013 Nut elastic M12Nut elastic M12
-
2640185 Screw M12x75Screw M12x75
-
2740370 Allen screw M12x75Allen screw M12x75
-
2840186 Screw M10x55Screw M10x55
-
2933012 Nut elastic M10Nut elastic M10
-
3040810 Allen screw M8x20Allen screw M8x20
-
3120014 Spring washerSpring washer
-
3231013 ShimShim
-
3340814 Allen screw M10x110Allen screw M10x110
-
34505070190 Flexible ski linerFlexible ski liner
-
35505070055 Bridge assy. Includes items 35 thru 36Bridge assy. Includes items 35 thru 36
-
36505070001 SleeveSleeve
-
37572101000 Plastic handlePlastic handle
-
3840009 Screw M8x50Screw M8x50
-
3940869 Screw M8x100Screw M8x100
-
4020004 WasherWasher
-
4133011 Nut elastic M8Nut elastic M8
-
4233074 Elastic flanged nut MElastic flanged nut M
-
4320105 WasherWasher
-
4440814 RivetRivet
-
45570062200 Ski stopperSki stopper
-
47860501900 Runner assyRunner assy
-
48413711500 Synthetic greaseSynthetic grease
-
49293800060 Loctite 243, 10mlLoctite 243, 10ml
-
50293550014 Grease, super lubeGrease, super lube
