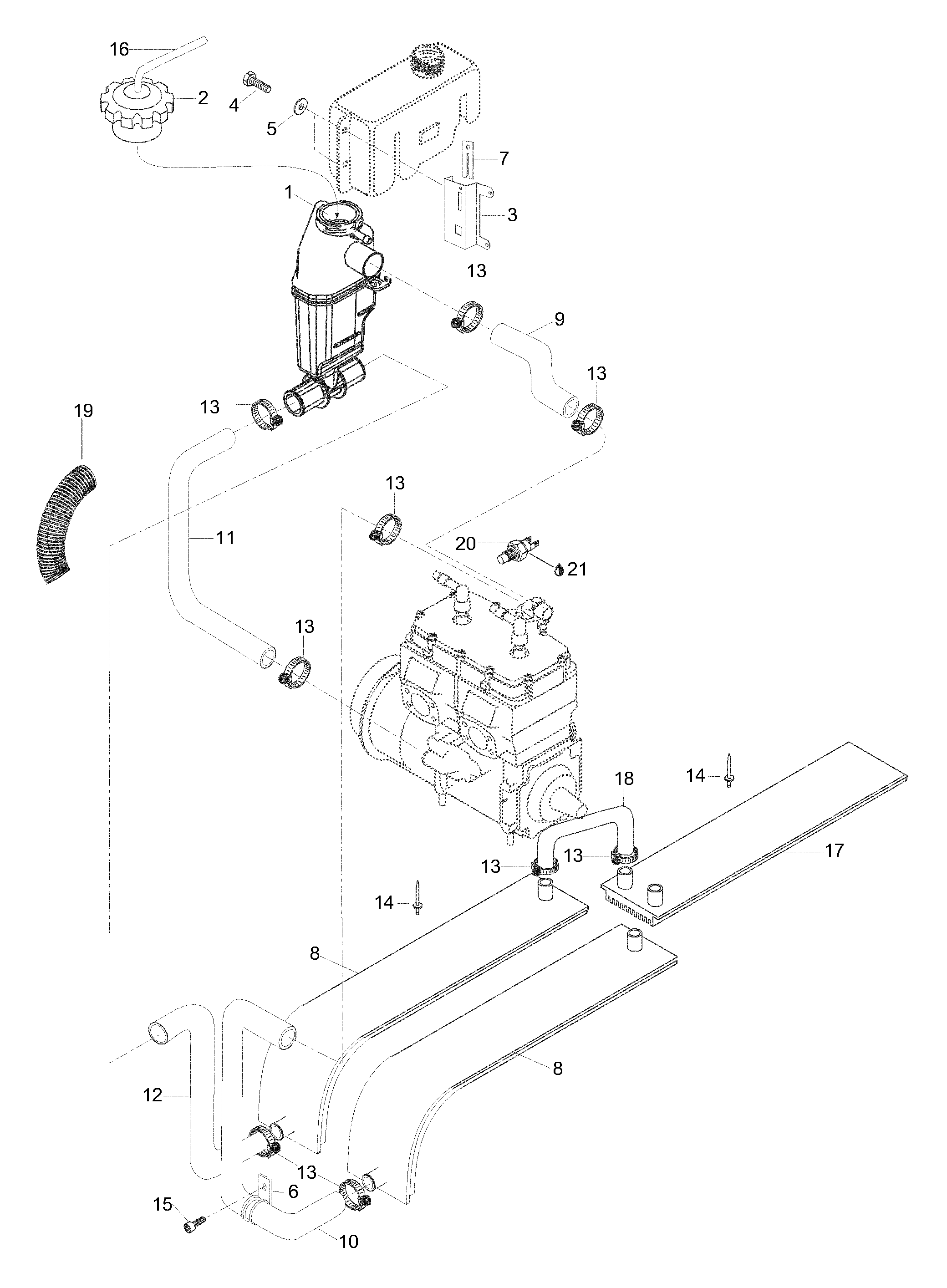

01- Radiator, Hoses для BRP Lynx 5900 ST - 2001
-
№АртикулНазвание
-
1509000114 Coolant tankCoolant tank
-
2414684700 CapCap
-
35347031 Support, coolant tankSupport, coolant tank
-
440030 Screw M6x20Screw M6x20
-
520009 WasherWasher
-
627011 ClampClamp
-
75447032 Support plateSupport plate
-
85144939 R.H. radiatorR.H. radiator
-
85144928 L.H. radiatorL.H. radiator
-
95346951 Hose, tank->engineHose, tank->engine
-
105145702 HoseHose
-
115343357 HoseHose
-
125345703 HoseHose
-
1327003 ClampClamp
-
1436489 RivetRivet
-
1540332 Allen screw M6x16Allen screw M6x16
-
1639038 Overflow hoseOverflow hose
-
175345916 Back radiatorBack radiator
-
185445970 HoseHose
-
19390003 TubingTubing
-
20512047000 Sensor tempSensor temp
-
21293800018 Loctite 592, 50mlLoctite 592, 50ml
