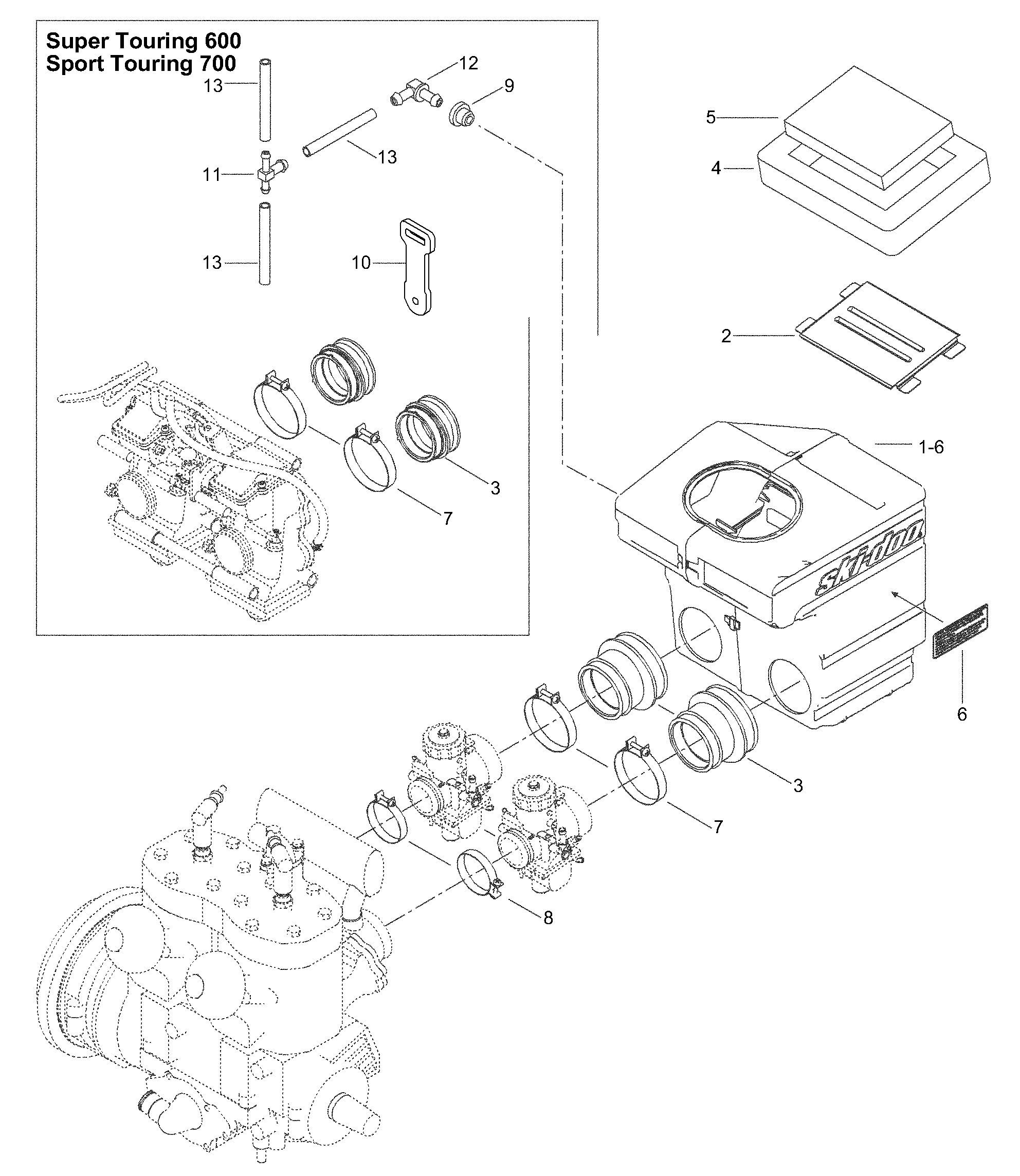

01- Air Silencer для BRP Lynx Sport Touring 700 - 2001
-
№АртикулНазвание
-
1508000185 Air intake assy. Includes items 1 thru 6Air intake assy. Includes items 1 thru 6
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516000130 Label cautionLabel caution
-
7508000162 ClampClamp
-
8512059192 ClampClamp
-
9513032908 GrommetGrommet
-
10512059372 LatchLatch
-
11572045500 T-fittingT-fitting
-
12414580600 Connector maleConnector male
-
13415080200 HoseHose
