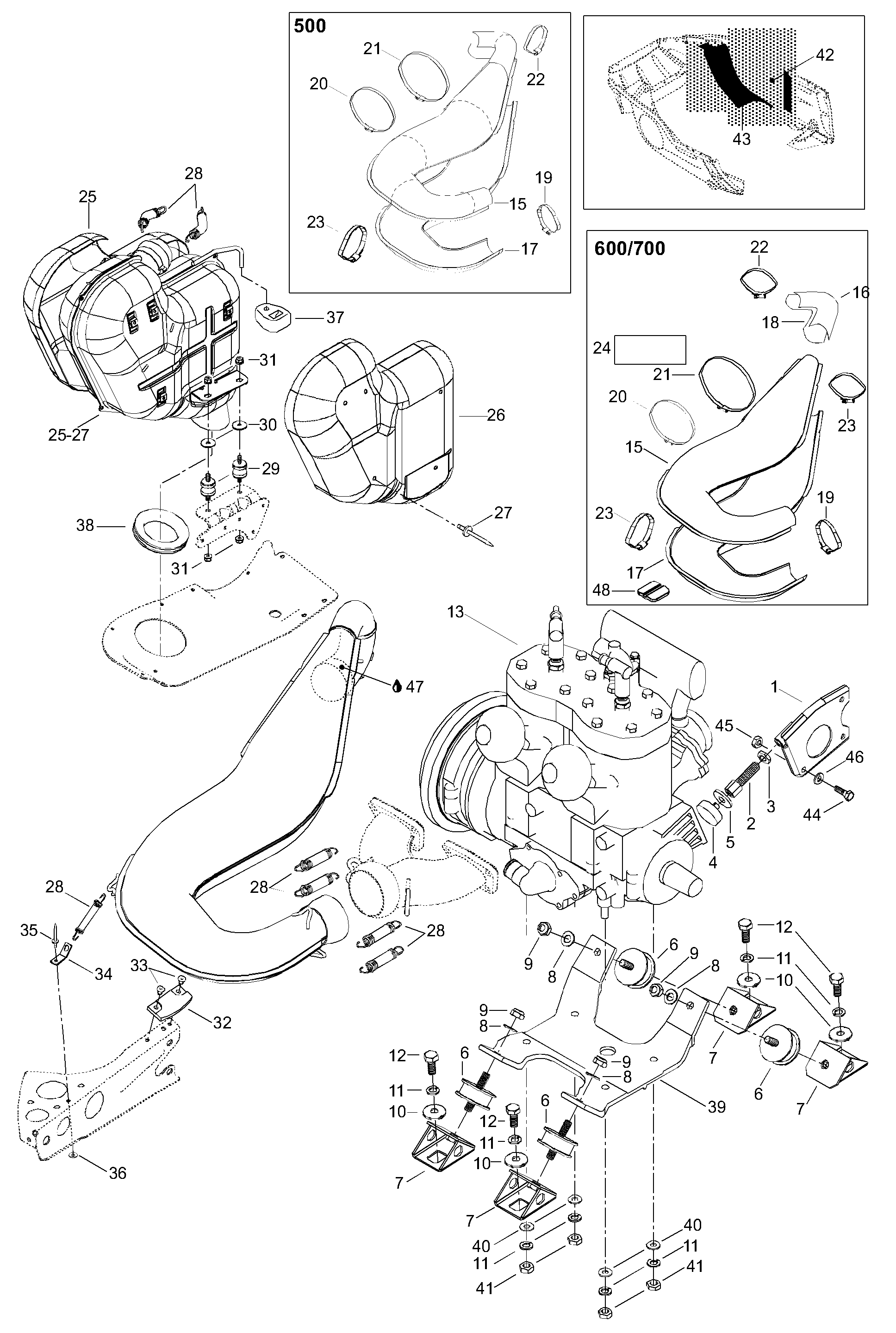

01- Engine Mount Plate/Muffler для BRP Lynx Sport Touring 700 - 2001
-
№АртикулНазвание
-
1512058500 Support plateSupport plate
-
2512058800 Stopper screwStopper screw
-
333218 Jam nut M12Jam nut M12
-
4512059056 StopperStopper
-
520023 WasherWasher
-
6570127700 Rubber mountRubber mount
-
7512050900 Engine supportEngine support
-
820005 WasherWasher
-
933012 Nut elastic M10Nut elastic M10
-
10512056700 Lock washerLock washer
-
1120047 Spring washerSpring washer
-
1240040 Screw M10x25Screw M10x25
-
1311000064 Engine 693Engine 693
-
14514053172 MufflerMuffler
-
15514053181 Upper enveloppeUpper enveloppe
-
16514053193 Upper enveloppe, rearUpper enveloppe, rear
-
17514053194 Lower enveloppeLower enveloppe
-
18514053196 Lower enveloppe, rearLower enveloppe, rear
-
19514053074 Norma gear clampNorma gear clamp
-
21514052735 Norma gear clampNorma gear clamp
-
22514052902 Norma gear clampNorma gear clamp
-
22293650090 Norma gear clampNorma gear clamp
-
23514053224 Norma gear clampNorma gear clamp
-
24514053197 IsolationIsolation
-
25514053160 R.H. heat shieldR.H. heat shield
-
25514053161 Muffler assy. Includes items 25 thru 27Muffler assy. Includes items 25 thru 27
-
26514052733 L.H. heat shieldL.H. heat shield
-
27390910000 RivetRivet
-
28415107100 SpringSpring
-
29514052994 Mount-rubberMount-rubber
-
30514052891 Isolating washerIsolating washer
-
3133201 Elastic flanged nut M8Elastic flanged nut M8
-
32570044100 Rubber padRubber pad
-
3336037 RivetRivet
-
345447086 Spring bracketSpring bracket
-
3536489 RivetRivet
-
3620008 WasherWasher
-
37514052704 Rubber pumberRubber pumber
-
38514053064 Rubber grommetRubber grommet
-
39512058000 Engine supportEngine support
-
4020105 Washer, hardenedWasher, hardened
-
4133004 Nut M10Nut M10
-
42514052718 IsoleringIsolering
-
43514052719 IsoleringIsolering
-
4440344 Allen screw M8x25Allen screw M8x25
-
4533011 Nut elastic M8Nut elastic M8
-
4620004 WasherWasher
-
47413710300 Sealant, loctite 17914Sealant, loctite 17914
-
48514053180 Rubber padRubber pad
