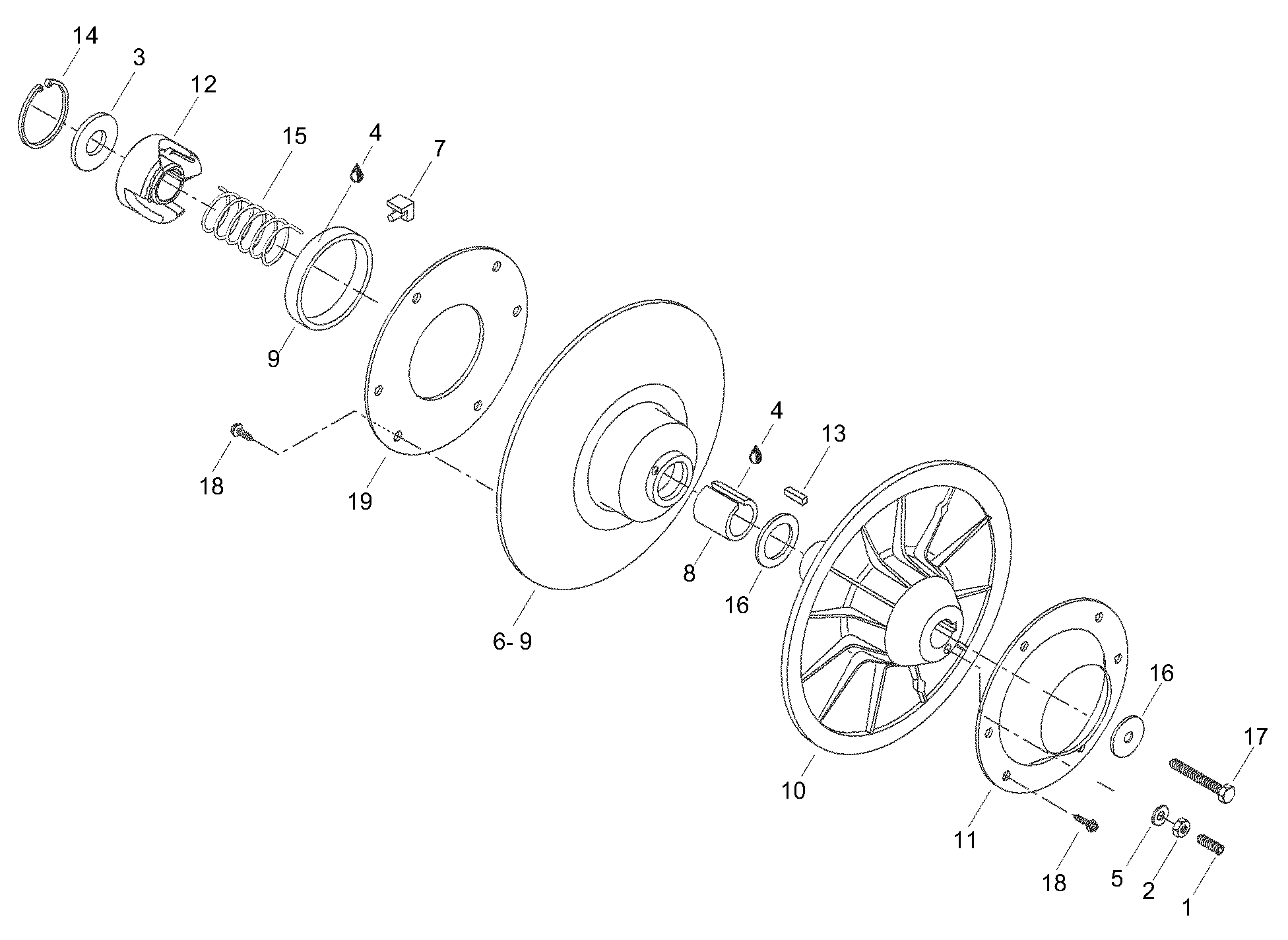

05- Driven Pulley для BRP Lynx Sport Touring 700 - 2001
-
№АртикулНазвание
-
1206263044 ScrewScrew
-
2232061414 NutNut
-
3504141800 WasherWasher
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5420245370 WasherWasher
-
6417126486 Sliding pulley assy. Includes items 6 thru 9Sliding pulley assy. Includes items 6 thru 9
-
7414918000 Cam slide shoeCam slide shoe
-
8415011200 BushingBushing
-
9414876600 Bushing garlockBushing garlock
-
10417126477 Fixed half pulley assyFixed half pulley assy
-
11504142000 CupCup
-
12417126343 Cam 50 degr.Cam 50 degr.
-
13414820800 KeyKey
-
14371903100 CirclipCirclip
-
15415092800 Spring, yellowSpring, yellow
-
16504141900 WasherWasher
-
1740089 Screw M8x75Screw M8x75
-
18210251180 Screw M5x11Screw M5x11
-
19504142100 RingRing
