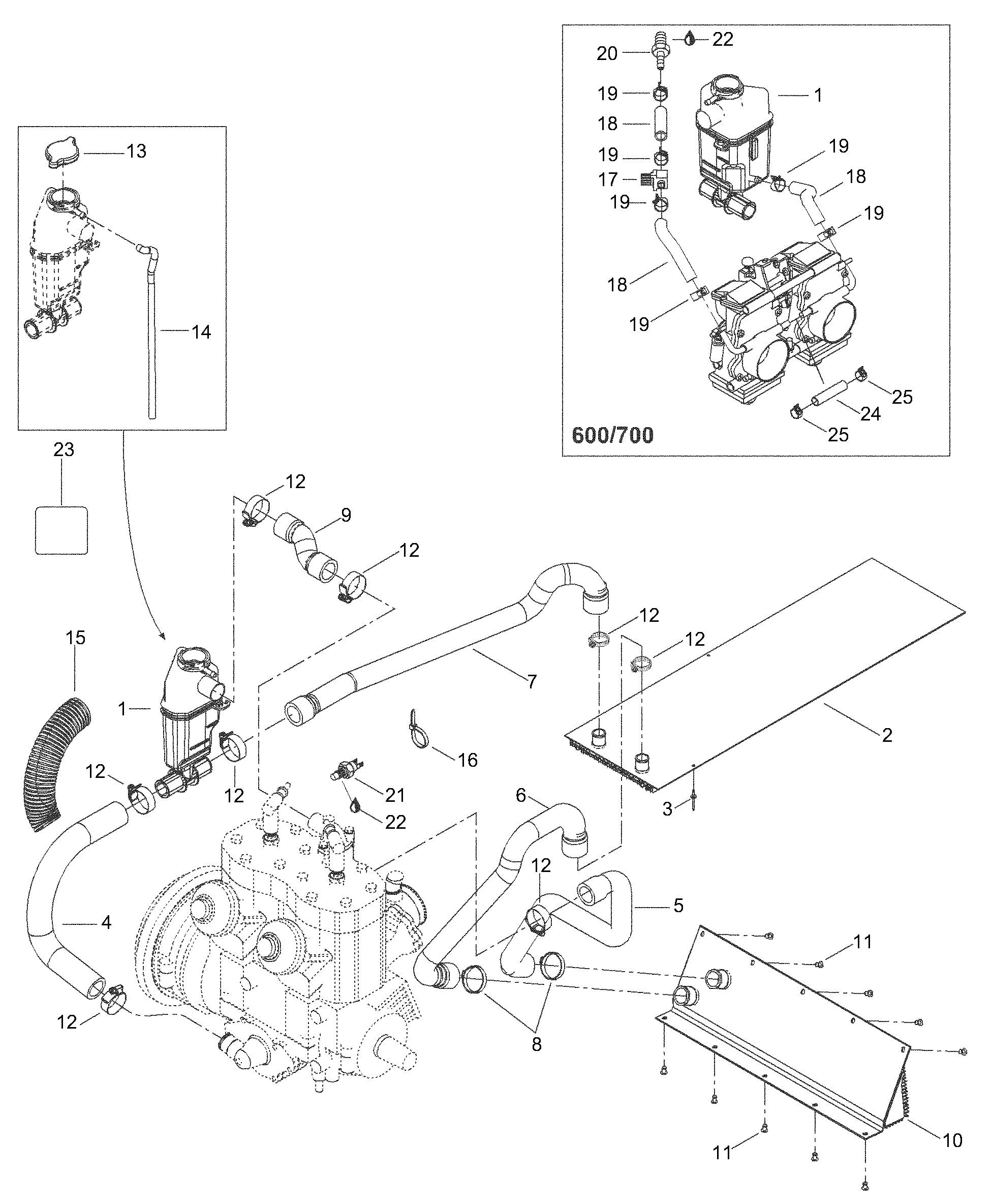

01- Radiator, Hoses для BRP Lynx Sport Touring 700 - 2001
-
№АртикулНазвание
-
1509000115 Coolant-tankCoolant-tank
-
25246648 RadiatorRadiator
-
336083 RivetRivet
-
4509000001 HoseHose
-
5509000046 Engine outlet hoseEngine outlet hose
-
65346349 HoseHose
-
75346350 Radiator inlet hoseRadiator inlet hose
-
8509000045 Hose clampHose clamp
-
9509000005 HoseHose
-
10517297100 Front radiatorFront radiator
-
1136489 RivetRivet
-
12408800400 Hose clampHose clamp
-
13414684700 Cap pressureCap pressure
-
1439038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
15390003 Protective shieldProtective shield
-
1627100 Tie rapTie rap
-
17512059324 ValveValve
-
18509000093 HoseHose
-
19414655700 Hose clampHose clamp
-
20293710082 ConnectorConnector
-
21512047000 Sender temperatureSender temperature
-
22293800018 Loctite 592, 50mlLoctite 592, 50ml
-
24404161956 HoseHose
