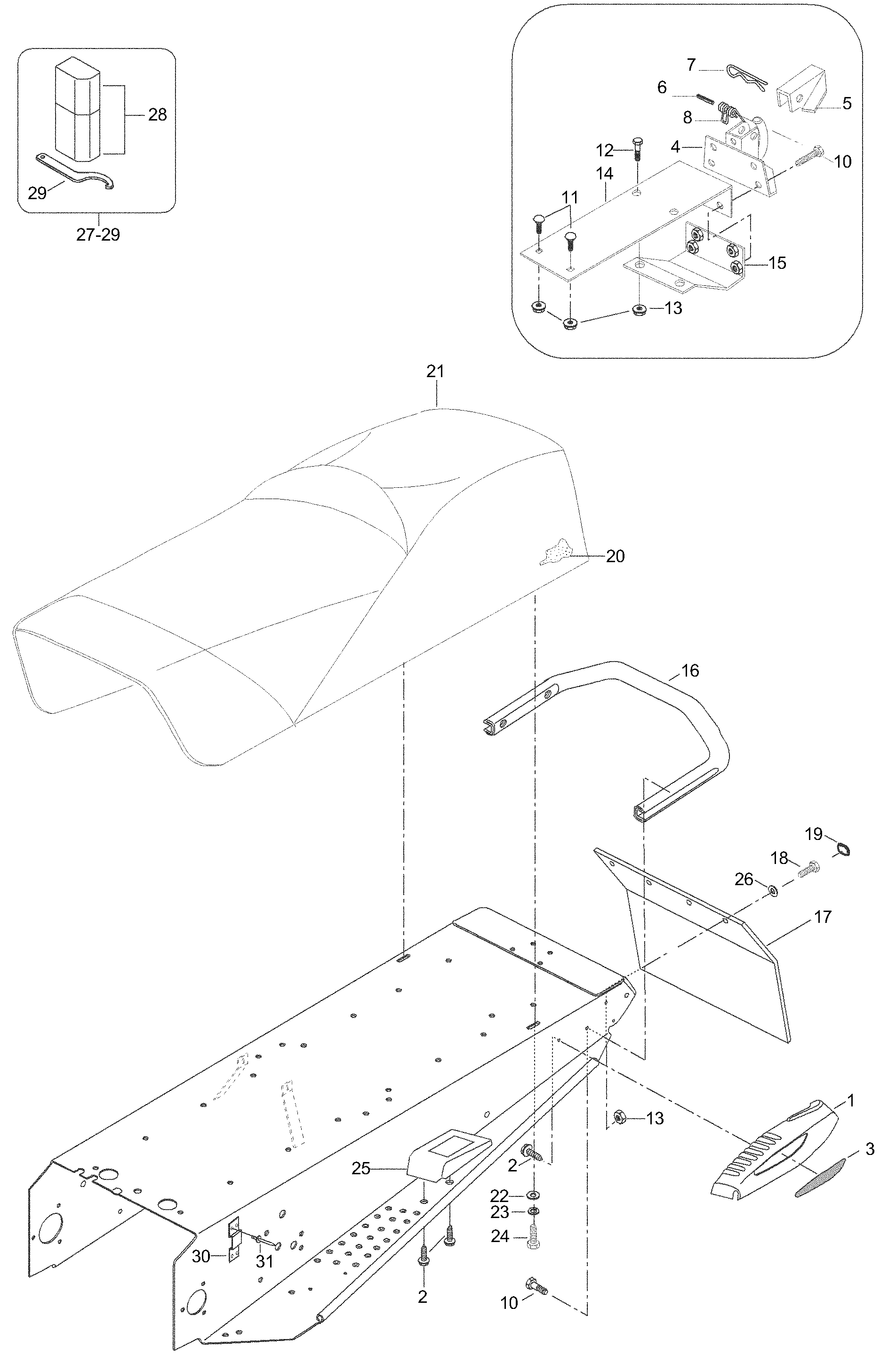

09- Body для BRP Lynx Sport Touring 700 - 2001
-
№АртикулНазвание
-
1572092200 R.H. mouldingR.H. moulding
-
1572092300 L.H. mouldingL.H. moulding
-
240870 Hex. tapping screwHex. tapping screw
-
3516000241 R.H. rear reflectorR.H. rear reflector
-
3516000242 L.H. rear reflectorL.H. rear reflector
-
45346664 Hitch Assy. Includes items 4 thru 15Hitch Assy. Includes items 4 thru 15
-
45344208 Hitch WeldHitch Weld
-
55440767 LockLock
-
641012 Spring PinSpring Pin
-
741029 Needle PinNeedle Pin
-
8545693 SpringSpring
-
1040336 Screw M8x20Screw M8x20
-
1140866 Locking screw M6x20Locking screw M6x20
-
1240030 Screw M6x20Screw M6x20
-
1333200 Elastic flanged nut M6Elastic flanged nut M6
-
145446855 BracketBracket
-
155346856 ReinforcementReinforcement
-
16517243800 Rear pumberRear pumber
-
175246859 Snow guardSnow guard
-
1840078 Screw M6x22Screw M6x22
-
19415073300 CapCap
-
205146604 Seat foamSeat foam
-
215146605 Seat coverSeat cover
-
2220010 WasherWasher
-
2320014 Lock washerLock washer
-
2440047 Screw M8x30Screw M8x30
-
25572088700 GT SE Foot Rest RHGT SE Foot Rest RH
-
25572088800 GT SE Foot Rest LHGT SE Foot Rest LH
-
2620009 WasherWasher
-
275445403 Tool box with tools. Includes items 27 thru 28Tool box with tools. Includes items 27 thru 28
-
28572036310 Tool boxTool box
-
29529032900 Wrench adjustWrench adjust
-
305447025 BracketBracket
-
3136489 RivetRivet
