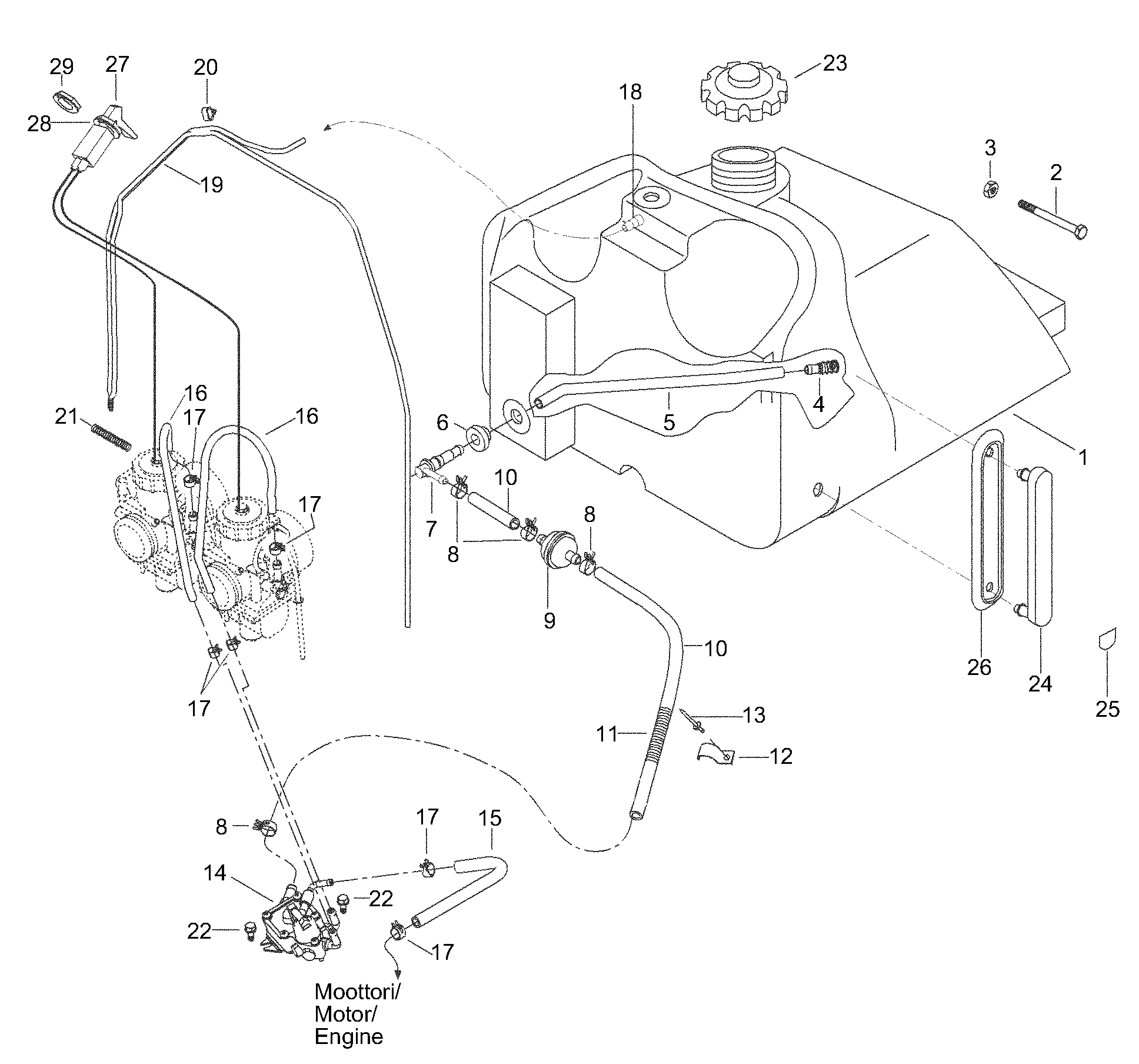

02- Fuel Tank для BRP Lynx Super Touring 500 - 2001
-
№АртикулНазвание
-
15146246 Fuel tank, holesFuel tank, holes
-
240032 Screw M6x30Screw M6x30
-
333200 Elastig flanged nut M6Elastig flanged nut M6
-
4414872100 Fuel filterFuel filter
-
539048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
628037 RubberRubber
-
75341709 Angle adapterAngle adapter
-
8414415200 ClampClamp
-
9414536500 Fuel filterFuel filter
-
1039046 Hose 11/8Hose 11/8
-
1128015 TubingTubing
-
12415018200 ClipClip
-
1336036 RivetRivet
-
14403901800 Fuel pumpFuel pump
-
1539001 Fuel line 11/6Fuel line 11/6
-
1639038 Fuel line 6.5/9.5Fuel line 6.5/9.5
-
17414420700 Spring clipSpring clip
-
18404153400 NippelNippel
-
1939035 Airhose 5/3Airhose 5/3
-
20513032923 Tube clampTube clamp
-
21414818200 SpringSpring
-
2240331 Self tapp. screw M6x16Self tapp. screw M6x16
-
23580259400 Cap assemblyCap assembly
-
24572015900 Fuel gaugeFuel gauge
-
25549200 Label, emptyLabel, empty
-
26570018000 Housing gaugeHousing gauge
-
27512059203 Choke cableChoke cable
-
28394103300 Lock washerLock washer
-
29512059094 Plastic nutPlastic nut
