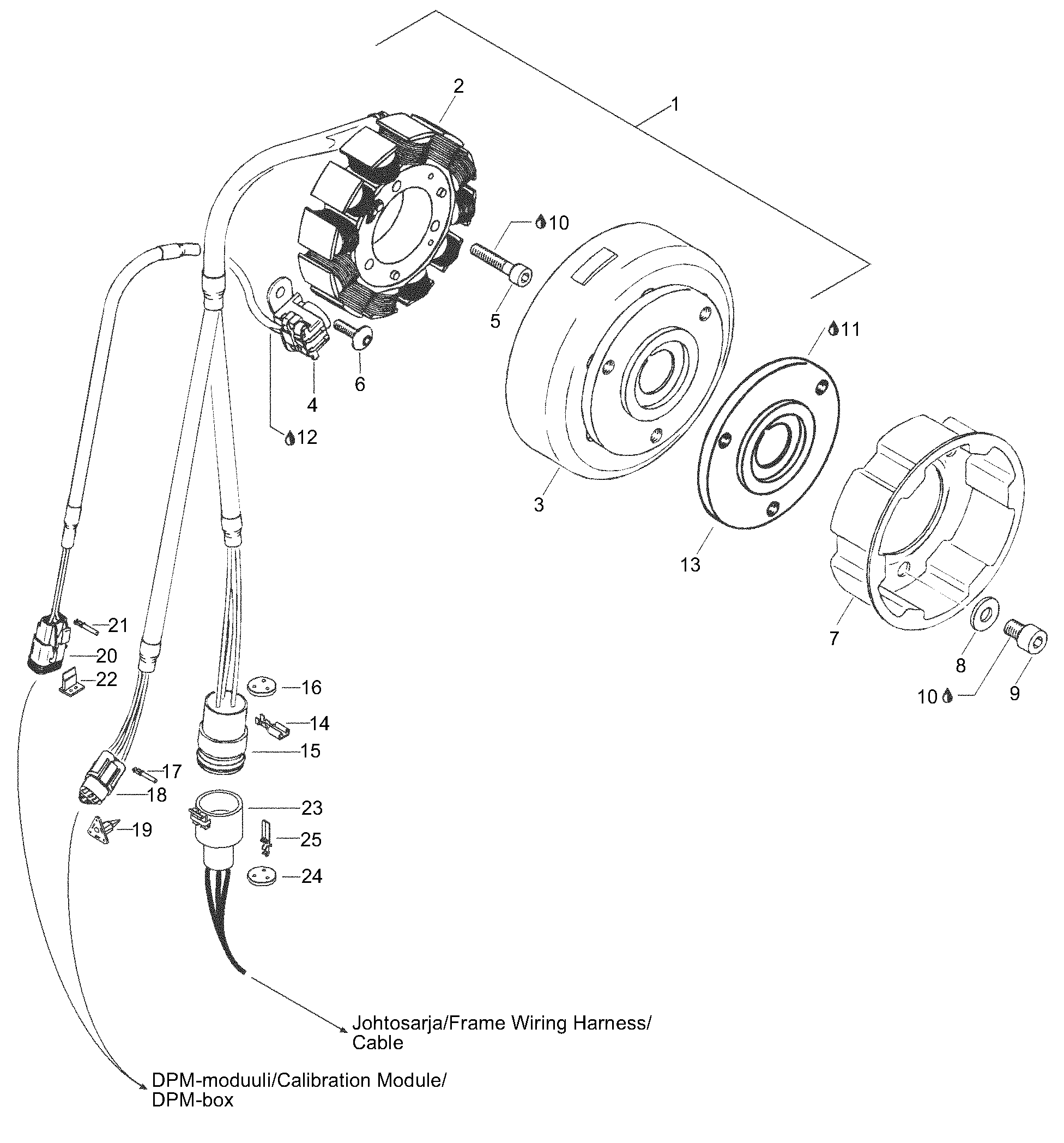

03- Fly Wheel для BRP Lynx Super Touring 500 - 2001
-
№АртикулНазвание
-
1420888192 Magneto 12V/240W. Includes items 1 thru 4Magneto 12V/240W. Includes items 1 thru 4
-
2420888612 Stator assyStator assy
-
3420888624 Magneto flywheelMagneto flywheel
-
4420966830 Pick up assyPick up assy
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852419 Starter cupStarter cup
-
820014 Lock washerLock washer
-
9420841520 Allenscrew M8x12Allenscrew M8x12
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
12420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
-
14409011900 Female terminalFemale terminal
-
15409208200 Terminal housingTerminal housing
-
16409208500 SealSeal
-
17278000632 Female terminalFemale terminal
-
18409207400 Terminal housingTerminal housing
-
19409207200 LockLock
-
20409207300 Terminal housingTerminal housing
-
21278000632 Female terminalFemale terminal
-
22409207100 LockLock
-
23409207900 Terminal housingTerminal housing
-
24409208500 SealSeal
-
25409011100 Male terminalMale terminal
