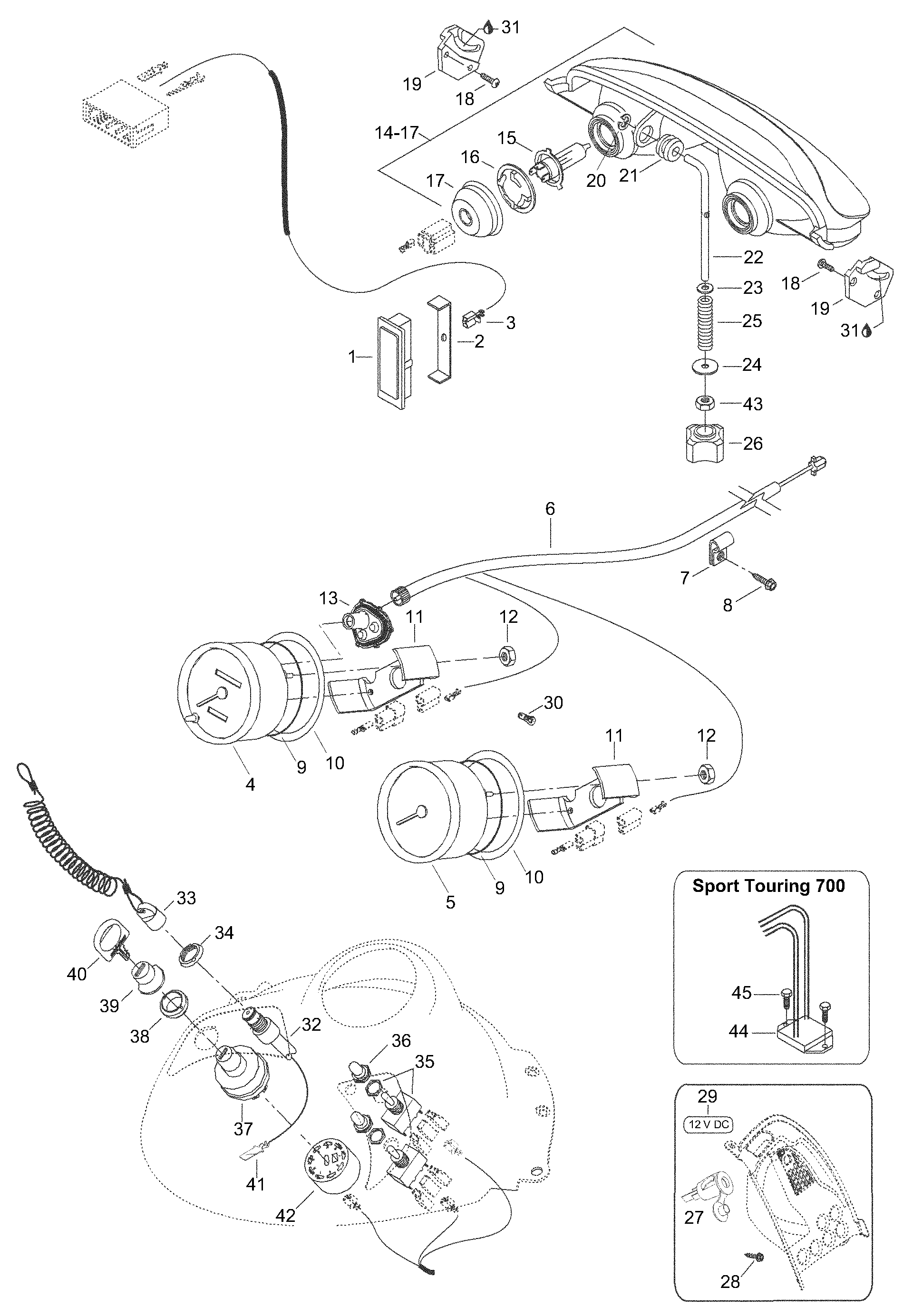

10- Electric для BRP Lynx Super Touring 500 - 2001
-
№АртикулНазвание
-
15447089 Signal light panel assySignal light panel assy
-
25442157 Fit plateFit plate
-
342603 TerminalTerminal
-
4515175335 Speedometer whiteSpeedometer white
-
5515175340 Tachometer whiteTachometer white
-
6415101500 Speedometer cableSpeedometer cable
-
727025 ClampClamp
-
840870 ScrewScrew
-
9414807100 O-ringO-ring
-
10517258500 WasherWasher
-
11414806500 HolderHolder
-
1233062 Nut M6Nut M6
-
13515175400 Drive angleDrive angle
-
14515175158 Halogen headlamp ass. Includes items 14 thru 17Halogen headlamp ass. Includes items 14 thru 17
-
15410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
16410608300 Bulb holderBulb holder
-
17410607100 CoverCover
-
1840177 Headlamp screwHeadlamp screw
-
19517289300 R.H. headlamp supportR.H. headlamp support
-
19517289400 L.H. headlamp supportL.H. headlamp support
-
20732610072 Nut pushNut push
-
21415100800 GrommetGrommet
-
22517295800 Adjuster rodAdjuster rod
-
2320003 WasherWasher
-
2420038 WasherWasher
-
25415100600 SpringSpring
-
26515175548 HandleHandle
-
30410504200 Instrumentation bulbInstrumentation bulb
-
31413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
32515175145 DESS switchDESS switch
-
33515166900 D.E.S.S. capD.E.S.S. cap
-
34278000508 Safety switch nutSafety switch nut
-
35410107300 SwitchSwitch
-
36515175281 Rubber cover for switchRubber cover for switch
-
3742019 Ignition switchIgnition switch
-
38410112100 Face nutFace nut
-
39570013700 Boot switchBoot switch
-
40414991700 Blank keyBlank key
-
4142603 ConnectorConnector
-
42572150700 Ignition switch blockIgnition switch block
-
4333010 Nut elastic M6Nut elastic M6
