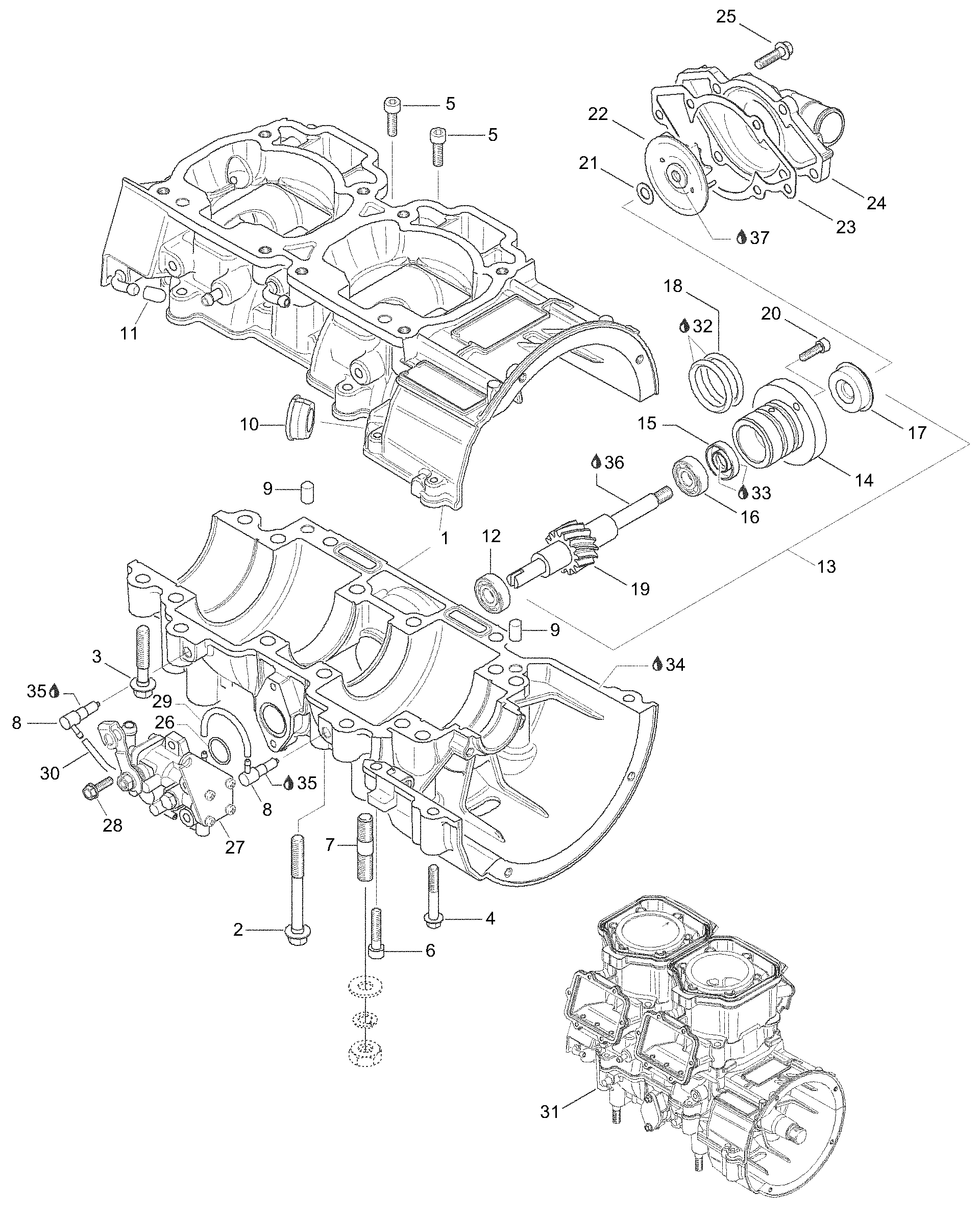

05- Crankcase для BRP Lynx Super Touring 500 - 2001
-
№АртикулНазвание
-
1420888761 Crankcase assy. Includes items 1 thru 10Crankcase assy. Includes items 1 thru 10
-
2420640836 Screw M8x75Screw M8x75
-
3420640431 Screw M8x45Screw M8x45
-
4420640311 Screw M6x45Screw M6x45
-
5420241930 Allen screw M6x2Allen screw M6x2
-
6420840880 Allen screw M6x30Allen screw M6x30
-
7420941644 Stud M10x23Stud M10x23
-
8420956510 Checkvalve assyCheckvalve assy
-
9420632010 PinPin
-
10420860965 Cable grommetCable grommet
-
11420960770 Closure capClosure cap
-
12420232100 Ball bearingBall bearing
-
13420837421 Waterpump/oilpump sha. Includes items 13 thru 19Waterpump/oilpump sha. Includes items 13 thru 19
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary sealRotary seal
-
18420950890 O-ringO-ring
-
20420840511 Allen screw M5x16Allen screw M5x16
-
21420227945 Thrust washerThrust washer
-
22420222505 ImpellerImpeller
-
23420931810 GasketGasket
-
24420922630 Pump housingPump housing
-
25420240031 Screw M6x25Screw M6x25
-
26420230400 O-ringO-ring
-
27420888260 Oil pumpOil pump
-
28420941925 Taptite screw M5x16Taptite screw M5x16
-
29420860232 Oil line 80mmOil line 80mm
-
30414413800 Oil line 115mmOil line 115mm
-
31300049302 Short block engineShort block engine
-
33420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
34420297906 Sealing compound, 310Sealing compound, 310
-
35420899788 Loctite, green, 5gr.Loctite, green, 5gr.
-
37293800060 Loctite 243, 10mlLoctite 243, 10ml
