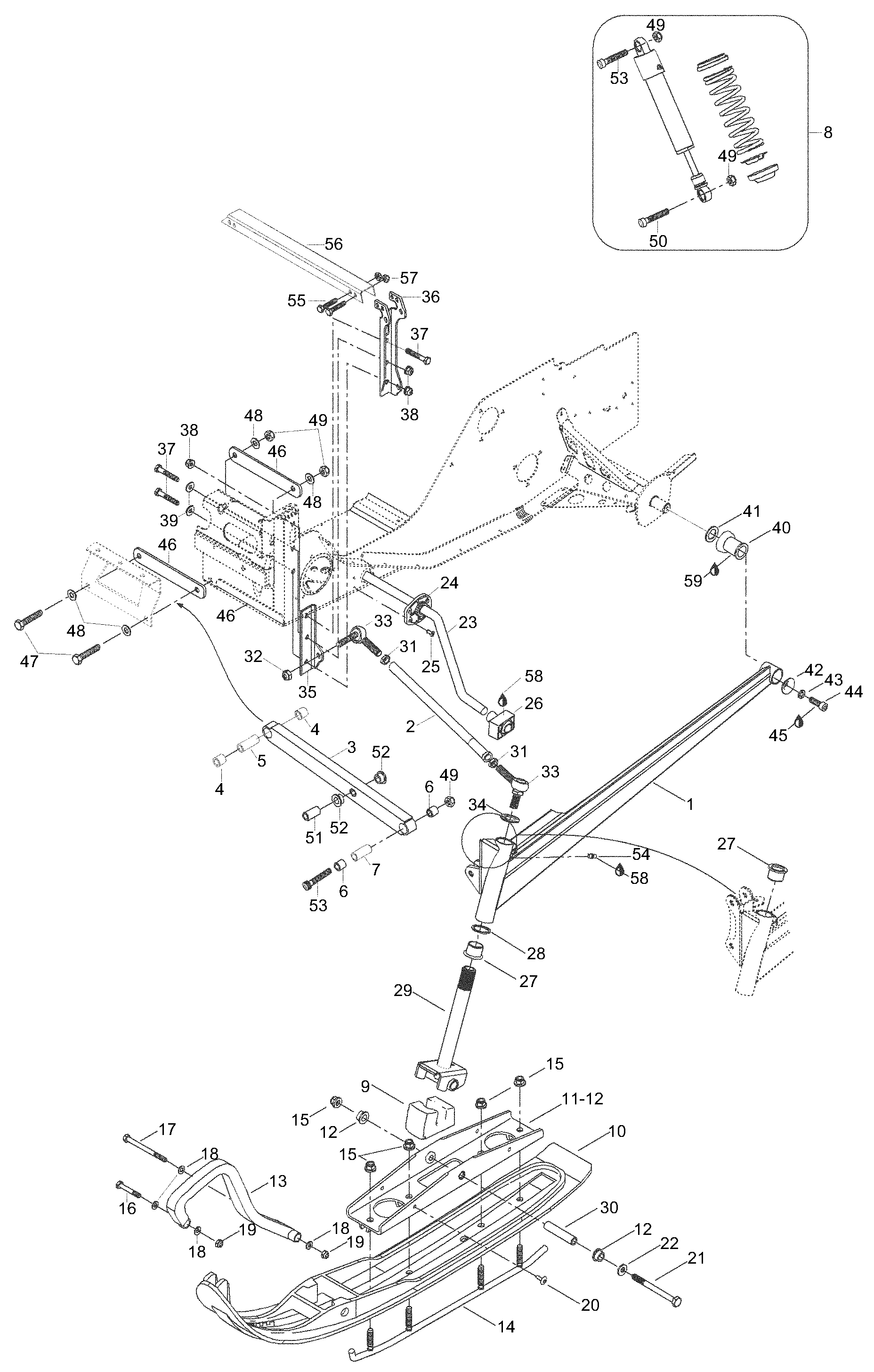

08- Front Suspension для BRP Lynx Super Touring 500 - 2001
-
№АртикулНазвание
-
15246685 Swing arm, R.H. greySwing arm, R.H. grey
-
15246686 Swing arm, L.H. greySwing arm, L.H. grey
-
25346122 Upper armUpper arm
-
35246678 Lower arm, grey. Includes items 3 thru 7Lower arm, grey. Includes items 3 thru 7
-
45446181 BushingBushing
-
55446182 BushingBushing
-
65446680 BushingBushing
-
75446681 BushingBushing
-
823128 Shock LYNXShock LYNX
-
9570070400 Stopper-skiStopper-ski
-
10505070190 Ski linerSki liner
-
11505070055 Bridge assy. Includes items 11 thru 12Bridge assy. Includes items 11 thru 12
-
12505070001 SleeveSleeve
-
13572101000 Plastic handlePlastic handle
-
14860501900 Runner pairRunner pair
-
1533074 Elastic flange stop nut MElastic flange stop nut M
-
1640009 Screw M8x50Screw M8x50
-
1740869 Screw M8x100Screw M8x100
-
1820004 WasherWasher
-
1933011 Nut elastic M8Nut elastic M8
-
20390911100 RivetRivet
-
2140814 Screw M10x110Screw M10x110
-
2220105 WasherWasher
-
235246797 Sway barSway bar
-
24505070191 BushingBushing
-
2536009 RivetRivet
-
26505070117 Ball joint blockBall joint block
-
27505070003 BushingBushing
-
28505070004 WasherWasher
-
295245502 Ski legSki leg
-
30506133300 SpacerSpacer
-
3133048 Jam nut M12Jam nut M12
-
3233087 Jam nut elastic M12Jam nut elastic M12
-
3331092 Ball jointBall joint
-
3420074 Locking washerLocking washer
-
355346104 R.H. Upper arm bracketR.H. Upper arm bracket
-
355346105 L.H. Upper arm bracketL.H. Upper arm bracket
-
365245488 Shock bracketShock bracket
-
365246395 Shock bracketShock bracket
-
3740010 Screw M8x55Screw M8x55
-
3833201 Elastic flanged nut M8Elastic flanged nut M8
-
3920104 Washer, hardenedWasher, hardened
-
40570062200 DamperDamper
-
41503146700 WasherWasher
-
42506079600 CupCup
-
4320014 Spring washerSpring washer
-
4440289 Allen screw M8x25Allen screw M8x25
-
45293800060 Loctite 243, 10mlLoctite 243, 10ml
-
465346112 Support plateSupport plate
-
4740814 Screw M10x110Screw M10x110
-
4820005 WasherWasher
-
4933012 Nut elastic M10Nut elastic M10
-
5040136 Allen screw M10x50Allen screw M10x50
-
515441433 BushingBushing
-
5231088 BearingBearing
-
5340837 Allen screw M10x55Allen screw M10x55
-
5434011 Grease fittingGrease fitting
-
5540345 Allen screw M6x40Allen screw M6x40
-
565345458 Front suspension brackeFront suspension bracke
-
5733010 Nut elastic M6Nut elastic M6
-
58413711500 Synthetic greaseSynthetic grease
-
59293550014 GreaseGrease
