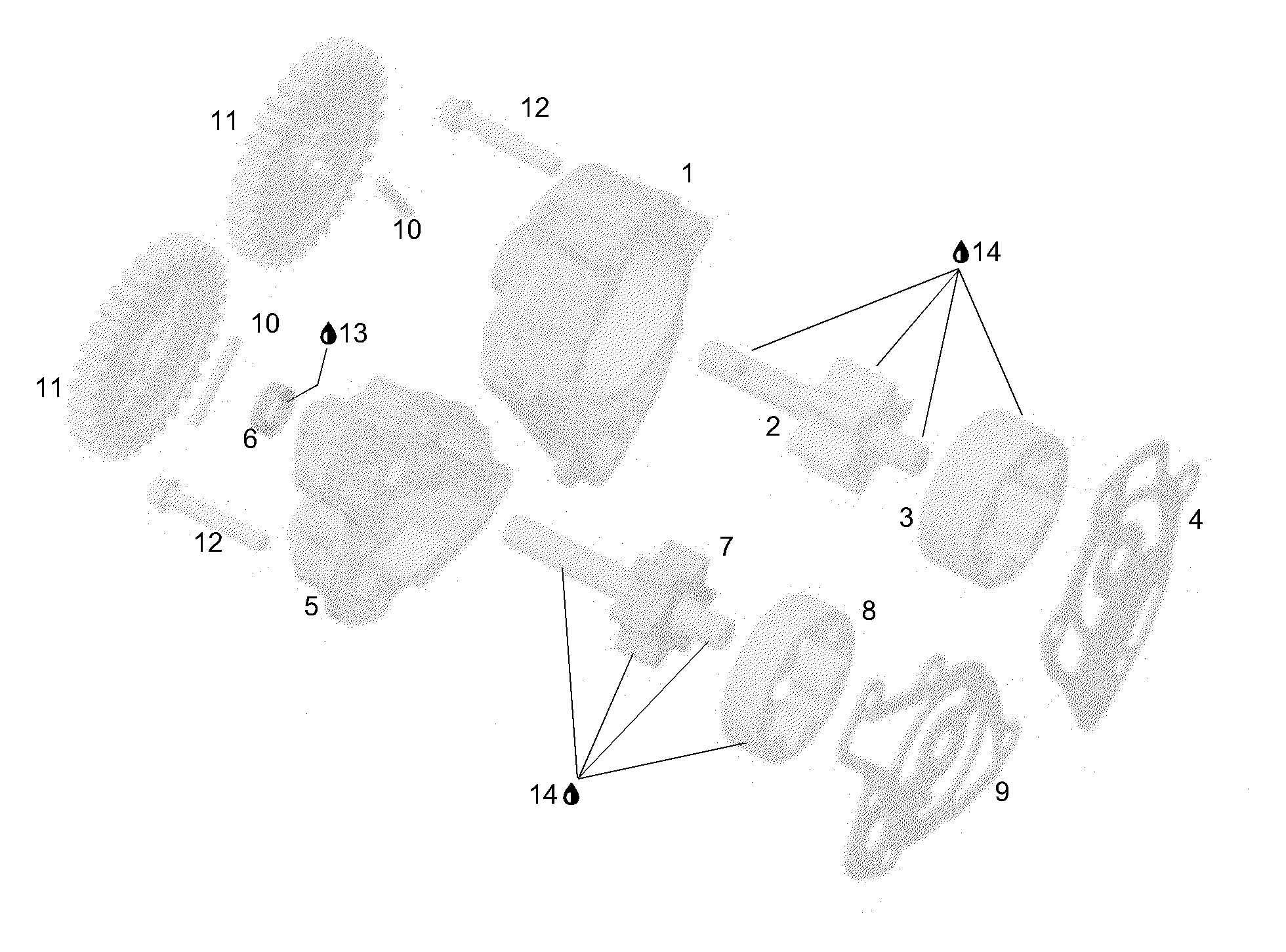

01- Oil Pump для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1420811690 Oil pump coverOil pump cover
-
2420837499 Oil pump shaftOil pump shaft
-
3420856455 Outer rotor (20 mm)Outer rotor (20 mm)
-
4420926325 Intermediate plateIntermediate plate
-
5420811680 Oil pump coverOil pump cover
-
6420931140 Oil sealOil seal
-
7420837494 Oil pump shaftOil pump shaft
-
8420856445 Outer rotor (14 mm)Outer rotor (14 mm)
-
9420926320 Intermediate plateIntermediate plate
-
10420232430 Needle pinNeedle pin
-
11420834470 Oil pump gear (33 teeth)Oil pump gear (33 teeth)
-
12420440272 Screw M6x35Screw M6x35
-
13293550014 Grease, super lubeGrease, super lube
-
14293600054 Engine oil 4 strokes, 0W4Engine oil 4 strokes, 0W4
