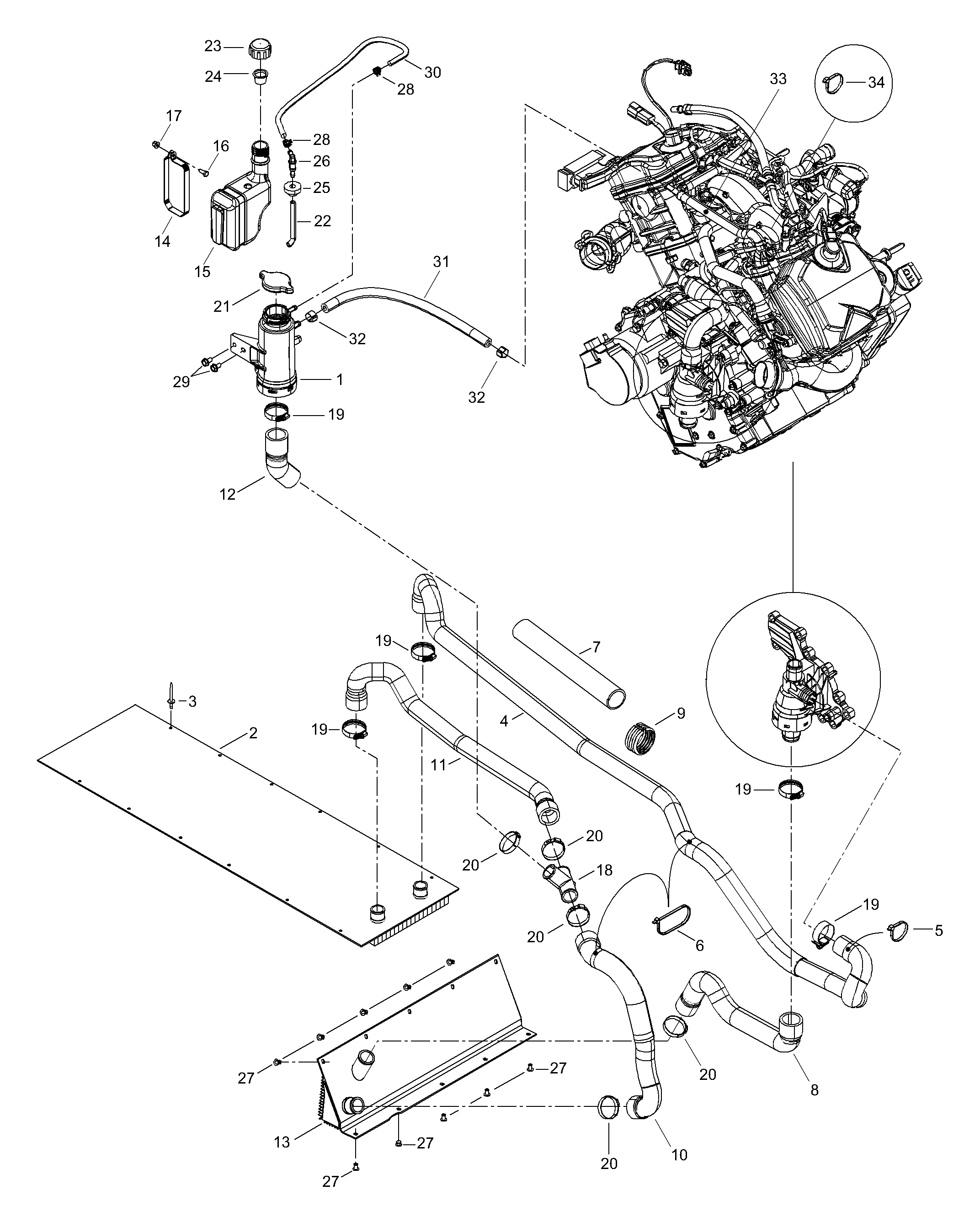

01- Radiator, Hoses для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1509000176 Filler neck assyFiller neck assy
-
25247241 RadiatorRadiator
-
336083 RivetRivet
-
4605249835 Hose, pump-radiatorHose, pump-radiator
-
527126 Tie rapTie rap
-
627100 Tie rapTie rap
-
739062 TubingTubing
-
8509000104 HoseHose
-
9390003 Protective shield (1000 mProtective shield (1000 m
-
10509000193 Hose, tank-front radiatorHose, tank-front radiator
-
11605349836 Hose, T-piece-rear radiatoHose, T-piece-rear radiato
-
12509000195 HoseHose
-
13509000146 Front radiatorFront radiator
-
14509000191 Bracket, coolant-tankBracket, coolant-tank
-
15709200099 Coolant-tankCoolant-tank
-
1640247 Screw M5x16Screw M5x16
-
1733062 Elastic flanged nut M5Elastic flanged nut M5
-
18509000219 T-fittingT-fitting
-
19408800400 Hose clampHose clamp
-
20509000045 Hose clampHose clamp
-
21509000180 Cap pressureCap pressure
-
22415110000 Overflow hoseOverflow hose
-
23709200009 CapCap
-
24709200034 Cap protectorCap protector
-
25570135100 GrommetGrommet
-
26414580600 ConnectorConnector
-
2736489 RivetRivet
-
28414554800 Hose clampHose clamp
-
2940327 Screw M6x12Screw M6x12
-
30415110000 HoseHose
-
31509000093 HoseHose
-
32293650128 Hose clampHose clamp
-
3327127 TubingTubing
-
3427026 TierapTierap
