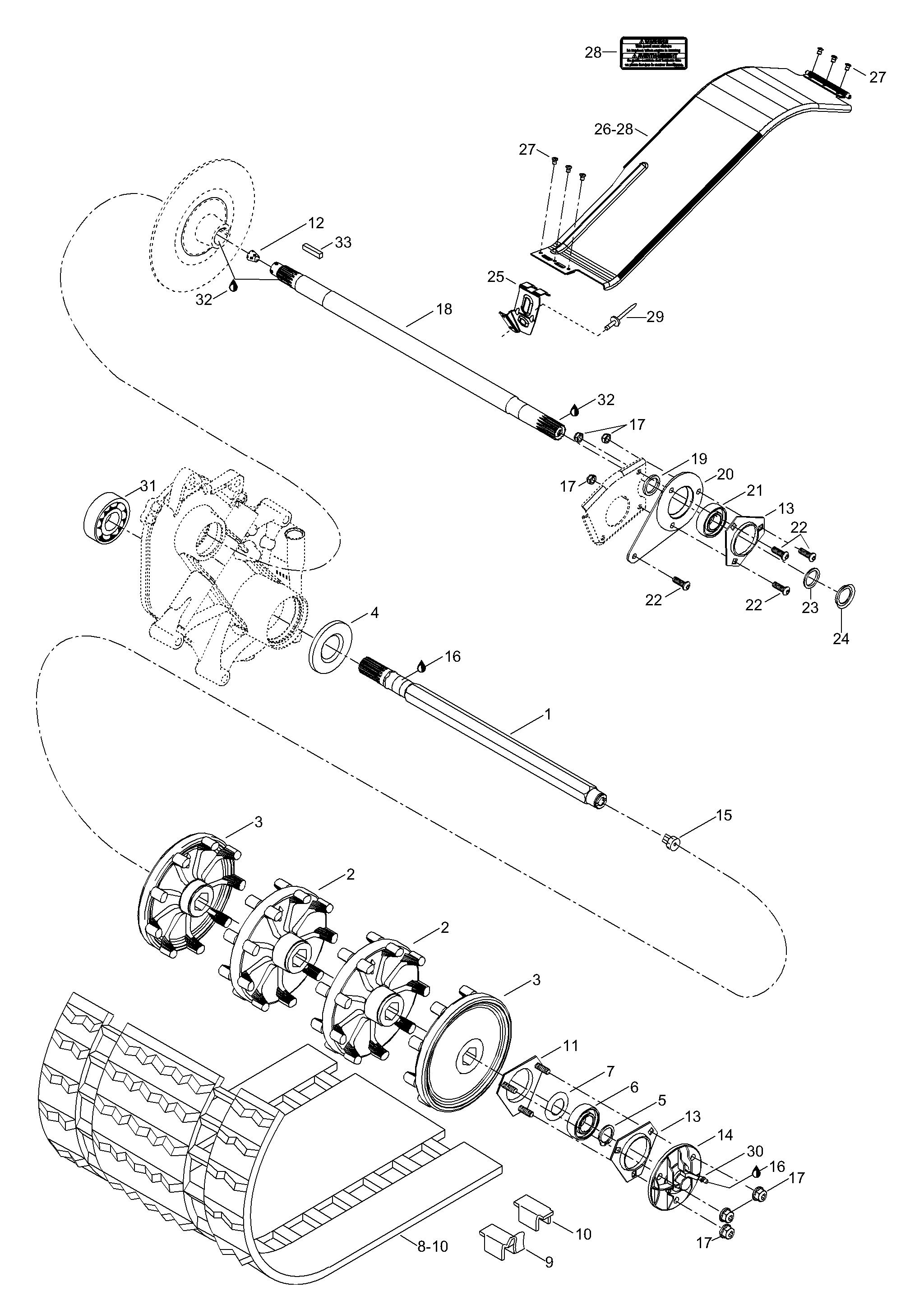

05- Drive Axle для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket 9 teethSprocket 9 teeth
-
3504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
5371910200 CirclipCirclip
-
6504152009 BearingBearing
-
7501017400 Ball bearing protectorBall bearing protector
-
813057 Track. Includes items 8 thru 10Track. Includes items 8 thru 10
-
95318330 Guide cleatGuide cleat
-
105318329 Slide cleatSlide cleat
-
11504151860 Bearing housingBearing housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152173 FlangeFlange
-
15504152040 Magnetic, adaptorMagnetic, adaptor
-
16413711500 Synthetic greaseSynthetic grease
-
1733201 Elastic flanged nut M6Elastic flanged nut M6
-
18501026300 Counter shaftCounter shaft
-
19504149100 HylsaHylsa
-
20080044200 Casting spacerCasting spacer
-
21504152026 Bearing ballBearing ball
-
2240344 Allen screw M8x25Allen screw M8x25
-
23417300054 ShimShim
-
24417300055 ProtectorProtector
-
25417300172 BracketBracket
-
26417300169 Belt guard assy. Includes items 26 thru 28Belt guard assy. Includes items 26 thru 28
-
27390402200 RivetRivet
-
28516001190 Warning labelWarning label
-
2936489 RivetRivet
-
3034011 Grease fittingGrease fitting
-
31504152005 Bearing ballBearing ball
-
32293800023 Loctite 767, antiseizeLoctite 767, antiseize
-
33507021300 KeyKey
