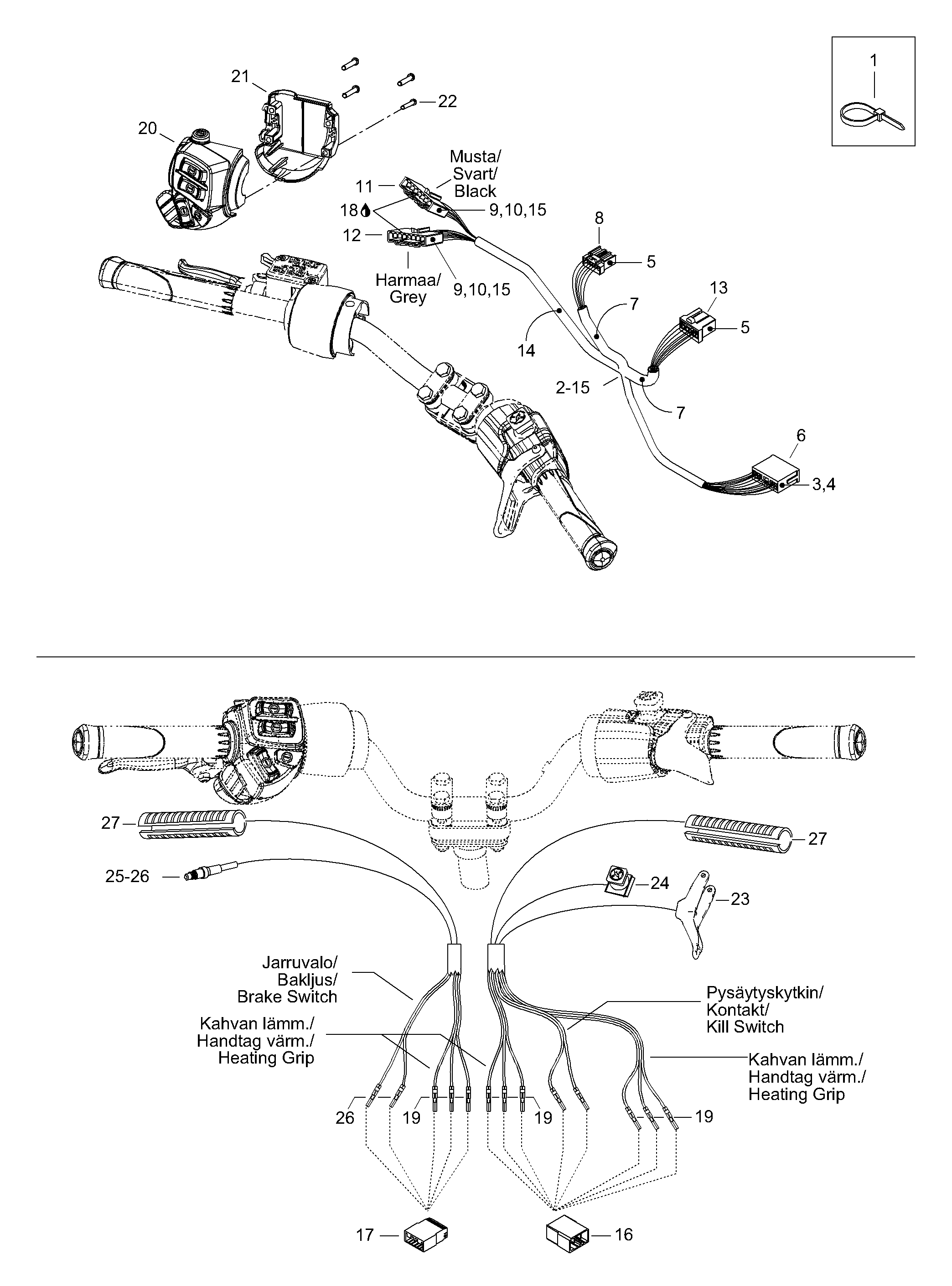

10- Electric для BRP Lynx Ranger V-1000 - 2003
![](/wa-data/public/shop/sheme/bombardier/lynx/d6f62254-f564-4ea7-9ba8-672a875de8ef.png)
-
№АртикулНазвание
-
127010 Tie rap 98 mmTie rap 98 mm
-
127100 Tie rap 290 mmTie rap 290 mm
-
2515175844 Wiring harness. Includes items 2 thru 15Wiring harness. Includes items 2 thru 15
-
3515175232 Male terminalMale terminal
-
4515175273 Male terminalMale terminal
-
5515175231 Female terminalFemale terminal
-
6515175352 Male terminal housing (13Male terminal housing (13
-
7415079900 Tubing 10 mmTubing 10 mm
-
8515175543 Female terminal housingFemale terminal housing
-
9515175808 Female terminalFemale terminal
-
10515175809 Lock (8 circuits)Lock (8 circuits)
-
11515175807 Female terminal housingFemale terminal housing
-
12515175810 Female terminal housingFemale terminal housing
-
13515175819 Female terminal housingFemale terminal housing
-
14515175830 Low temperature tubing 1/Low temperature tubing 1/
-
15515175941 Female terminalFemale terminal
-
16515175817 Male terminal housing (8Male terminal housing (8
-
17515175662 Male terminal housing (6Male terminal housing (6
-
18293550004 Dielectric grease, 150 gDielectric grease, 150 g
-
19515175232 Male terminalMale terminal
-
20515175772 L.H. housing switchL.H. housing switch
-
21515175926 Housing switch plateHousing switch plate
-
2240903 ScrewScrew
-
23512059483 Handle ass’yHandle ass’y
-
24512059751 Kill switchKill switch
-
25507032334 Microswitch. Includes items 25 thru 26Microswitch. Includes items 25 thru 26
-
26515175232 Male terminalMale terminal
-
27515175657 Handle gripHandle grip
