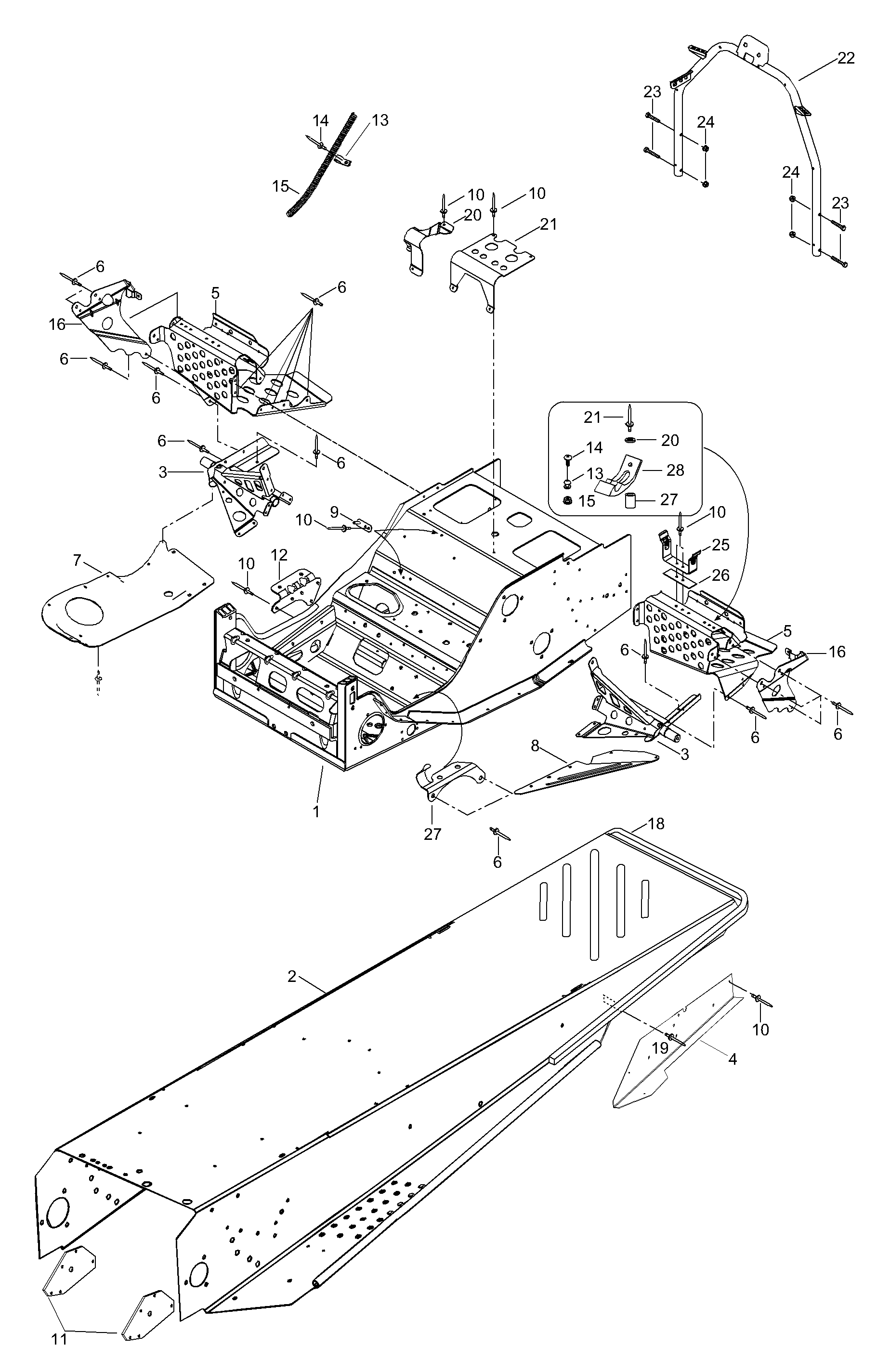

09- Frame для BRP Lynx Ranger V-1000 - 2003
-
№АртикулНазвание
-
1605148685 Frame assy. Includes items 1 thru 18Frame assy. Includes items 1 thru 18
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
4605349082 R.H. bracketR.H. bracket
-
4605349081 L.H. bracketL.H. bracket
-
55146822 R.H. front footrestR.H. front footrest
-
55146823 L.H. front footrestL.H. front footrest
-
636083 RivetRivet
-
7518322636 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
13605449087 Counter rollCounter roll
-
1440168 Screw M4x25Screw M4x25
-
1533008 Nut M4Nut M4
-
165146912 R.H. end plateR.H. end plate
-
165146913 L.H. end plateL.H. end plate
-
175146917 R.H. toe holdR.H. toe hold
-
175146918 L.H. toe holdL.H. toe hold
-
18605249064 Rear tubeRear tube
-
1936070 RivetRivet
-
20543392 WasherWasher
-
2136072 RivetRivet
-
225247856 Handle steering supp.Handle steering supp.
-
2340002 Screw M6x40Screw M6x40
-
2433200 Nut M6Nut M6
-
25518202100 Pulley guard bracketPulley guard bracket
-
26518207500 ReinforcementReinforcement
-
27543417 SleeveSleeve
-
28531955 LatchLatch
