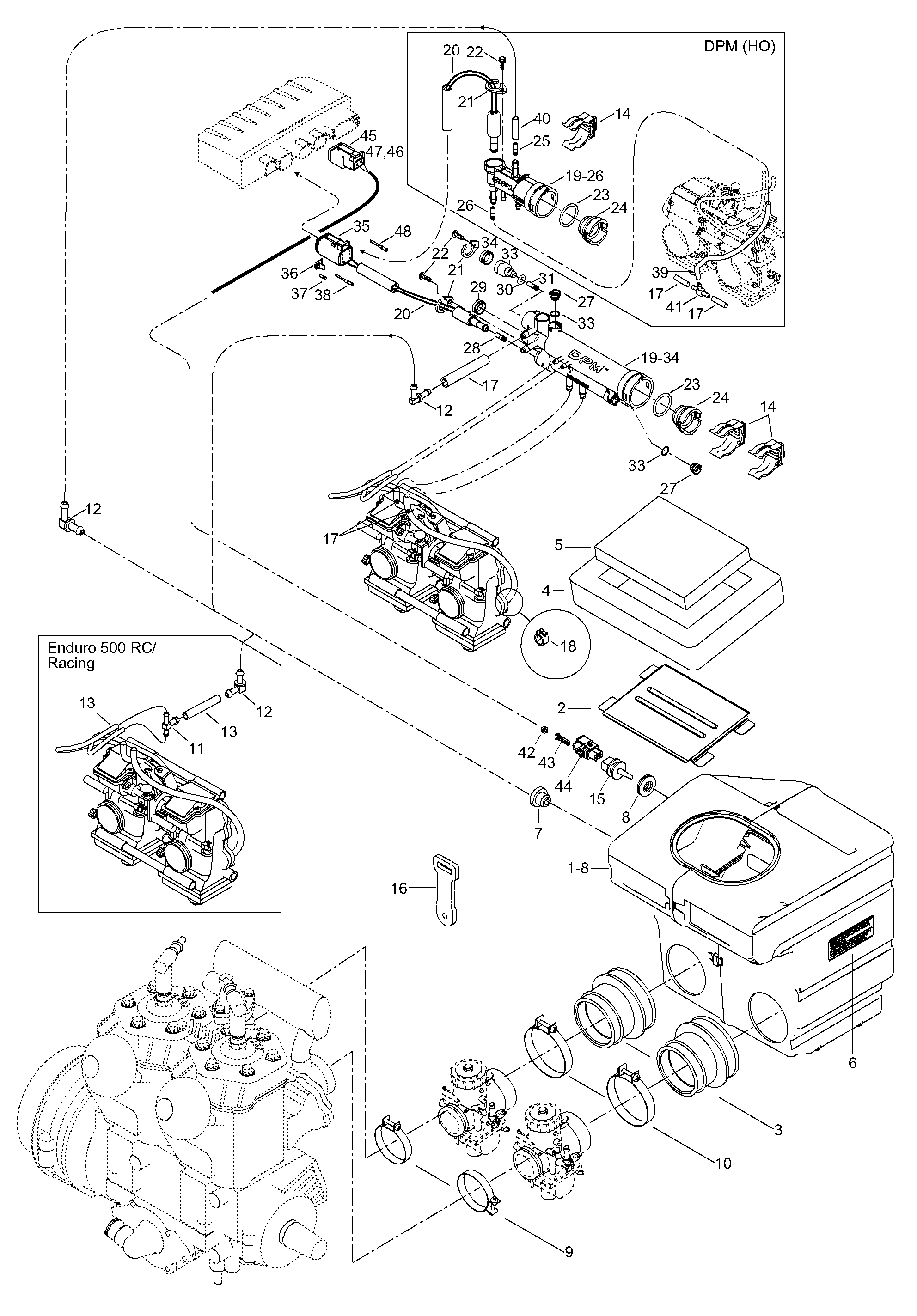

01- Air Silencer для BRP Lynx Enduro 500/RC - 2004
-
№АртикулНазвание
-
1508000261 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
9512059835 ClampClamp
-
1027046 ClampClamp
-
11572045500 T-fittingT-fitting
-
12414580600 ConnectorConnector
-
1339038 Hose 6.5/9.5Hose 6.5/9.5
-
16512059372 LatchLatch
-
18414554800 ClampClamp
