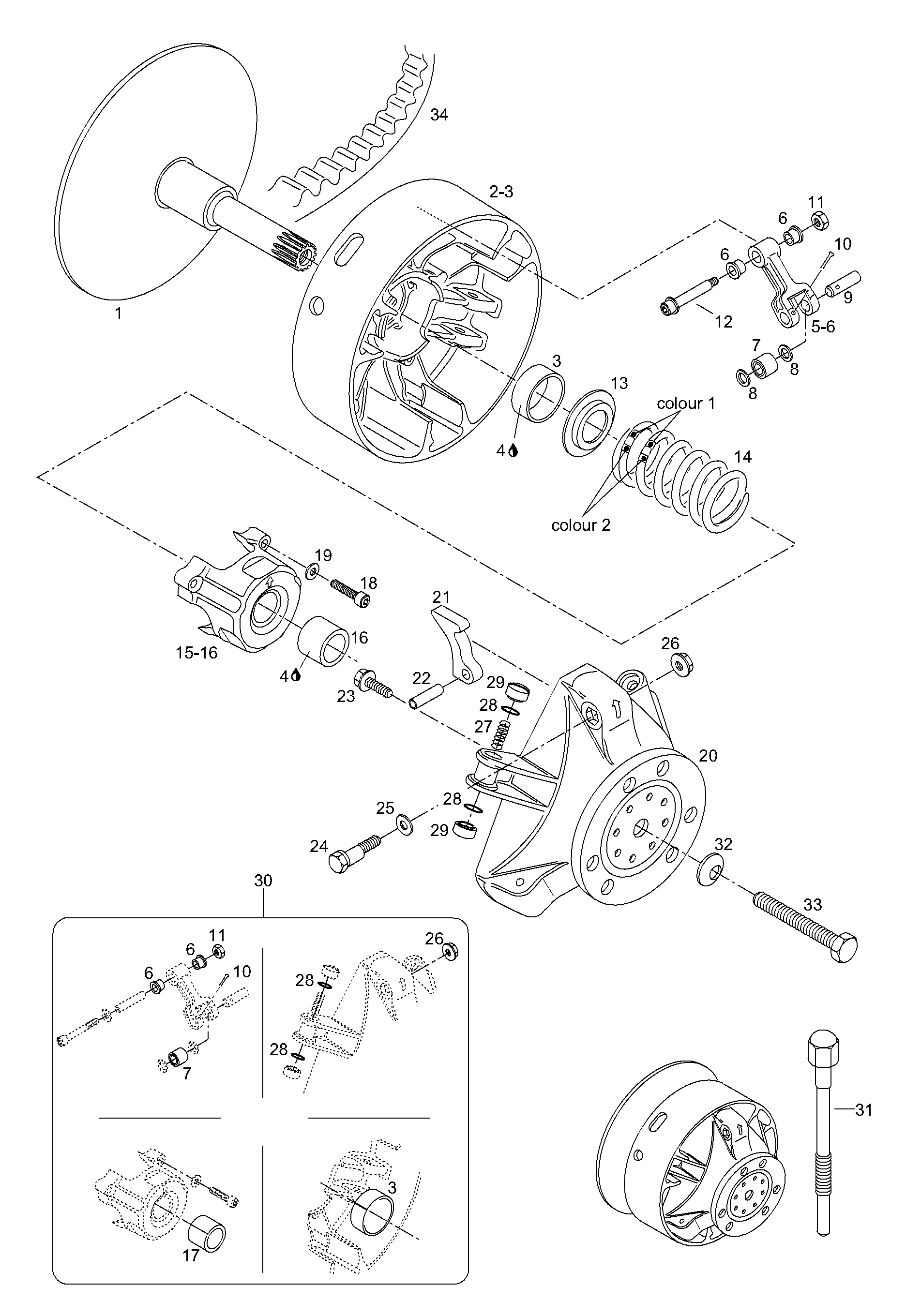

05- Clutch для BRP Lynx Enduro 500/RC - 2004
-
№АртикулНазвание
-
1417222407 Inner half assyInner half assy
-
2417222241 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5417222383 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11232561414 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assyFitting screw assy
-
13417222044 Spring seatSpring seat
-
14414756900 Spring, green/pinkSpring, green/pink
-
15417222304 Spring cover assy. Includes items 15 thru 16Spring cover assy. Includes items 15 thru 16
-
17417004501 Bushing spring coverBushing spring cover
-
18250000038 Allen screw M6 x 40Allen screw M6 x 40
-
19420245370 Friction-washerFriction-washer
-
20417222081 Governor cupGovernor cup
-
21417222376 Ramp 283Ramp 283
-
22732804009 Dowel tube 8 x 24Dowel tube 8 x 24
-
23210361890 Hex. locking screwHex. locking screw
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417005800 Slider shoeSlider shoe
-
30417006100 Clutch repair kitClutch repair kit
-
31529022400 Puller inner halfPuller inner half
-
3220110 WasherWasher
-
33417120000 ScrewScrew
-
34414860700 Drive beltDrive belt
