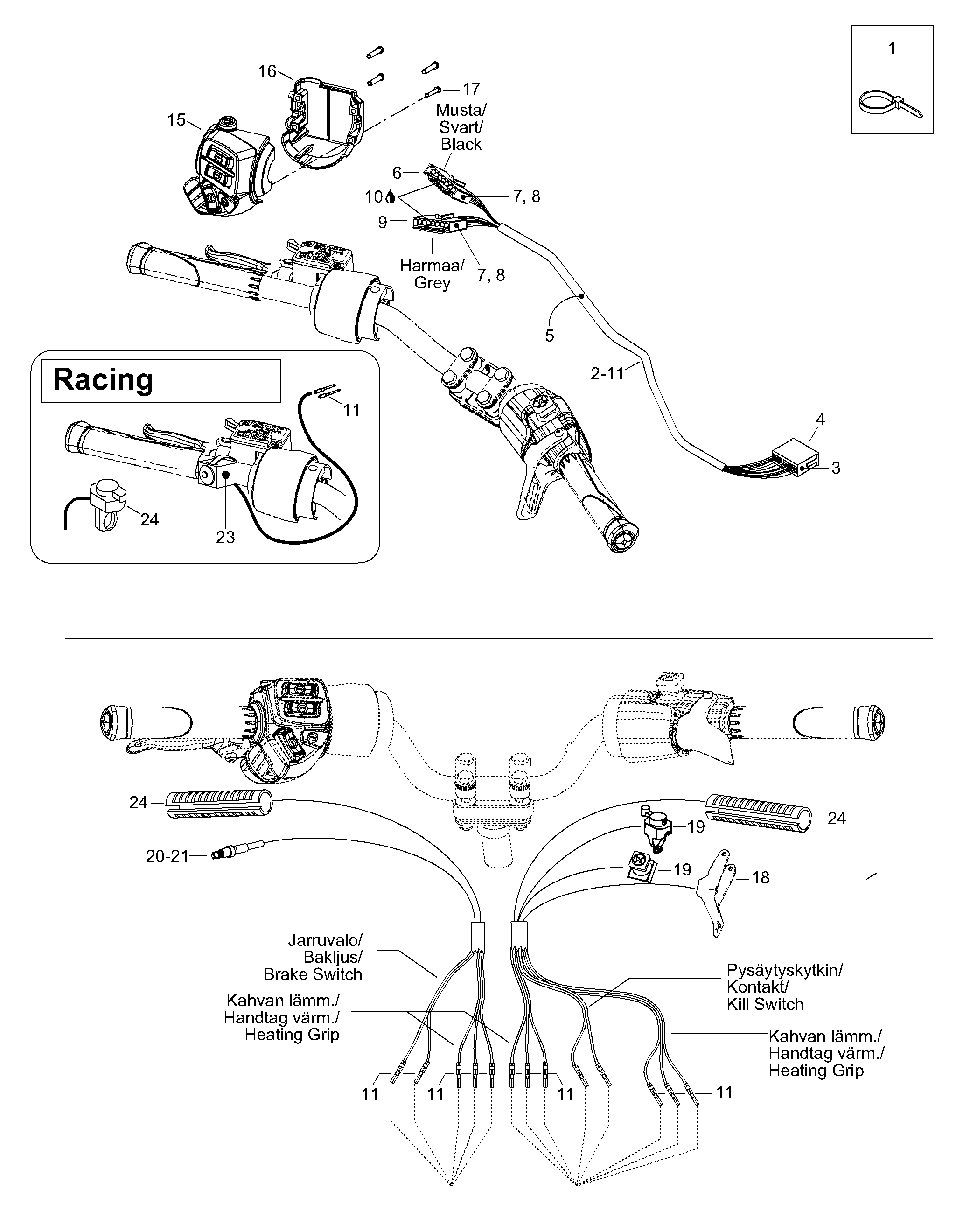

06- Brake Switch для BRP Lynx Enduro 500/RC - 2004
-
№АртикулНазвание
-
127010 Tie rap 98 mmTie rap 98 mm
-
127026 Tie rap 290 mmTie rap 290 mm
-
342603 Male terminalMale terminal
-
442621 Male terminal housing (1Male terminal housing (1
-
539015 Tubing 12 mmTubing 12 mm
-
6515175807 Female terminal housinFemale terminal housin
-
7515175808 Female terminalFemale terminal
-
8515175809 Lock (8 circuits)Lock (8 circuits)
-
9515175810 Female terminal housinFemale terminal housin
-
10293550004 Dielectric grease, 150 gDielectric grease, 150 g
-
1142603 Male terminalMale terminal
-
12515175941 Female terminalFemale terminal
-
13515175819 Female terminal housinFemale terminal housin
-
14515175830 Low temperature tubingLow temperature tubing
-
15515176062 L.H. housing switchL.H. housing switch
-
16515175926 Housing switch plateHousing switch plate
-
1740903 Screw 3,5 x 25Screw 3,5 x 25
-
18512059107 Handle ass’yHandle ass’y
-
19515175410 Kill switchKill switch
-
20507032334 Microswitch. Includes items 20 thru 21Microswitch. Includes items 20 thru 21
-
2142603 Male terminalMale terminal
-
22515175657 Handle gripHandle grip
