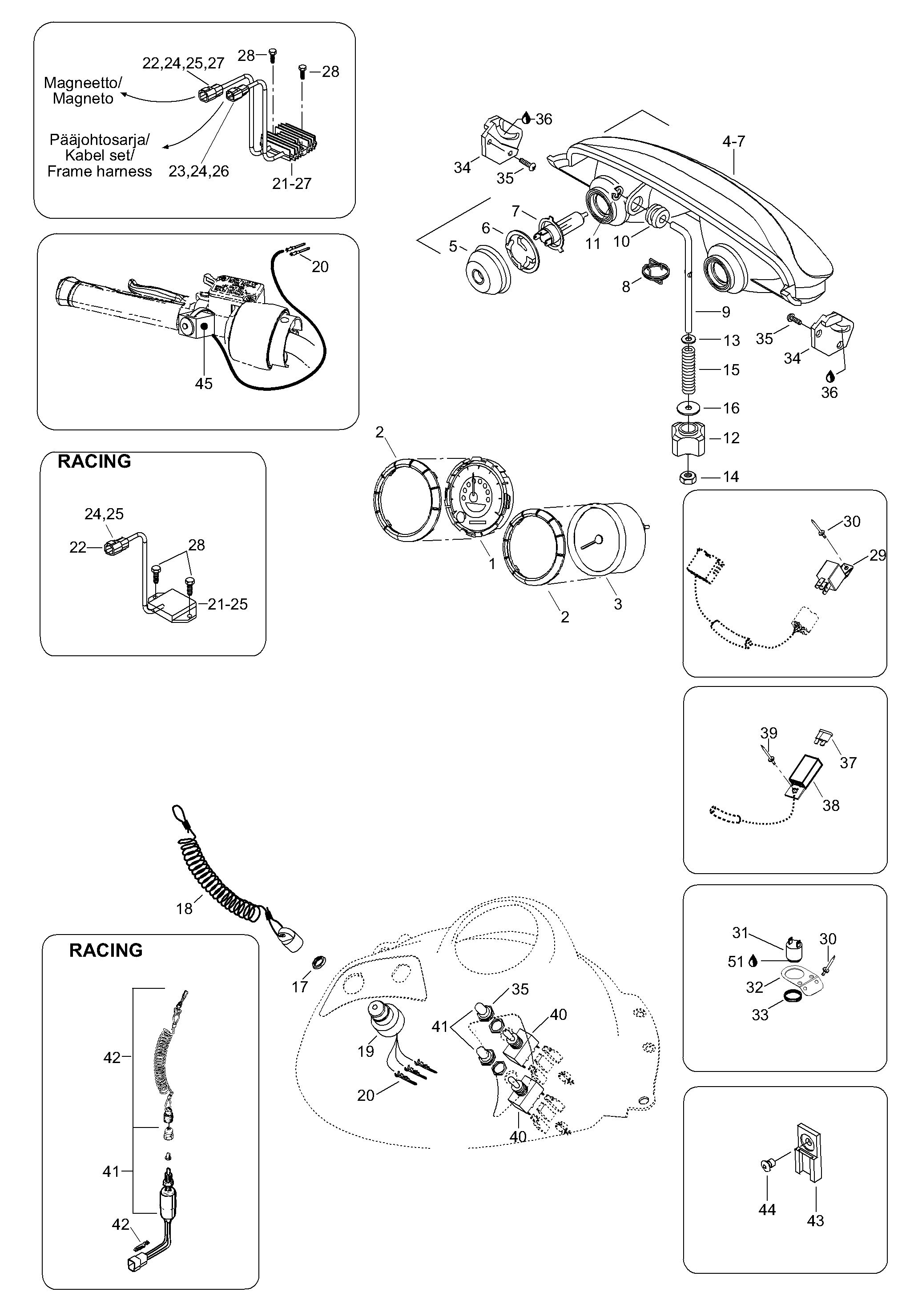

10- Electric для BRP Lynx Enduro 500/RC - 2004
-
№АртикулНазвание
-
1515176000 SpeedometerSpeedometer
-
2515175651 Ring gaugeRing gauge
-
3515176072 TachometerTachometer
-
4515175909 Halogen headlamp assy. Includes items 4 thru 7Halogen headlamp assy. Includes items 4 thru 7
-
5410607100 CoverCover
-
6410608300 Bulb holderBulb holder
-
7410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
85447238 SpringSpring
-
9517295800 Adjuster rodAdjuster rod
-
10415100800 GrommetGrommet
-
11732610072 Nut pushNut push
-
12515175548 HandleHandle
-
1320038 WasherWasher
-
1433010 Nut elastic M6Nut elastic M6
-
15415100600 SpringSpring
-
1620003 WasherWasher
-
17278000508 Safety switch nutSafety switch nut
-
18515166900 D.E.S.S. capD.E.S.S. cap
-
19515175145 D.E.S.S switchD.E.S.S switch
-
2042603 Male terminalMale terminal
-
21515175756 Regulator Assy. Includes items 21 thru 27Regulator Assy. Includes items 21 thru 27
-
22278001477 Female terminal hous.Female terminal hous.
-
23278001674 Female terminal hous.Female terminal hous.
-
24515175568 Male terminalMale terminal
-
25278001478 Wedge (4)Wedge (4)
-
26278001672 Wedge (2)Wedge (2)
-
27293000052 SealingSealing
-
2840377 Screw M6 x 20Screw M6 x 20
-
29410113200 RelayRelay
-
3036005 RivetRivet
-
31415060900 DC-hornDC-horn
-
325447941 BracketBracket
-
33414805101 Ring nutRing nut
-
34517289300 R.H. headlamp supportR.H. headlamp support
-
34517289400 L.H. headlamp supportL.H. headlamp support
-
3540177 Headlamp screwHeadlamp screw
-
36413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
37278001143 Fuse 20AFuse 20A
-
3842272 Housing, fuseHousing, fuse
-
3936491 RivetRivet
-
43270000141 ClipClip
-
4436005 RivetRivet
