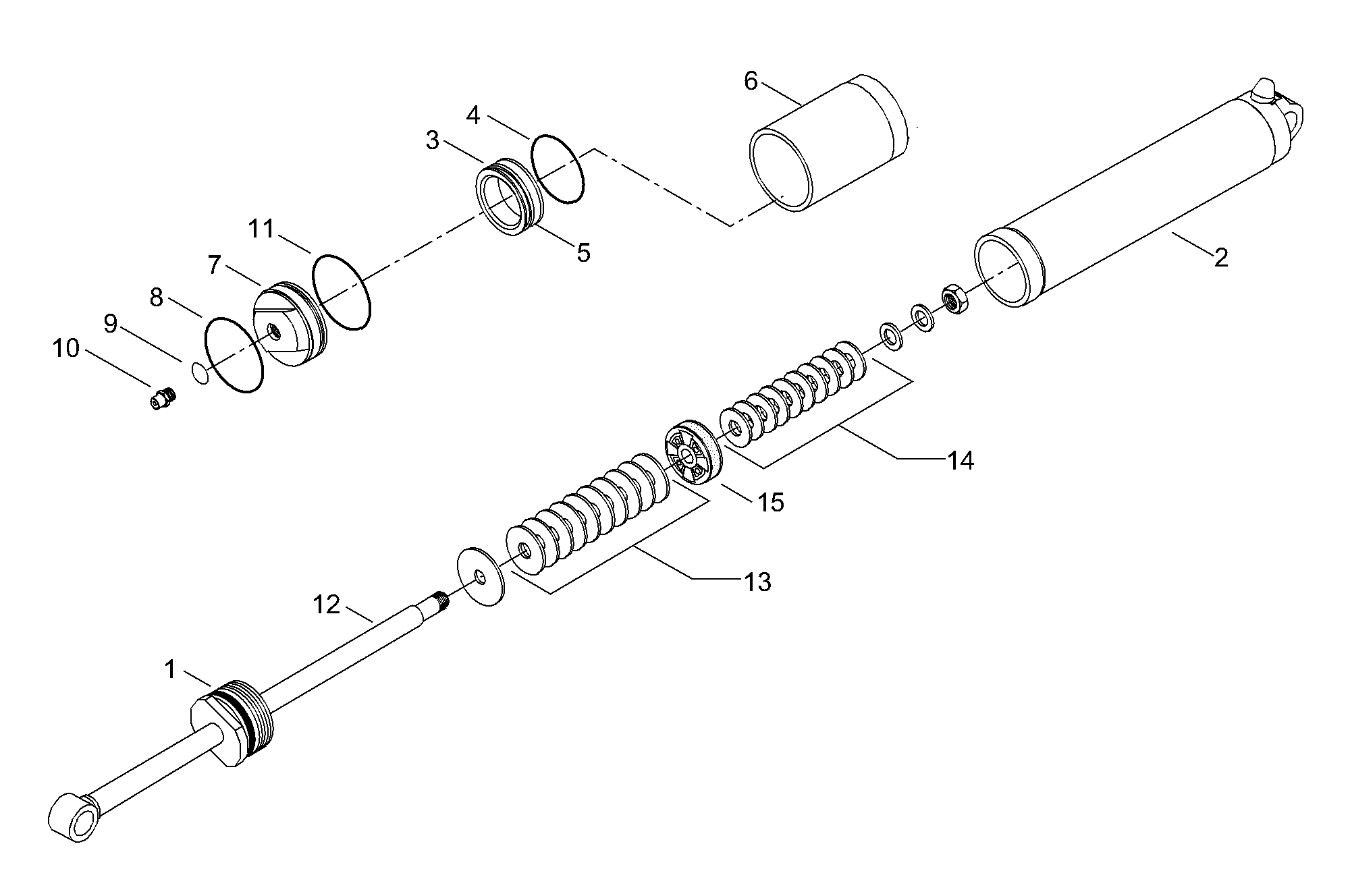

08- Rear Suspension для BRP Lynx Enduro 500/RC - 2004
-
№АртикулНазвание
-
23203 Shock, rear (RC-models)Shock, rear (RC-models)
-
1230060 Seal carrier assySeal carrier assy
-
3415093812 Floating pistonFloating piston
-
4415093807 O-ringO-ring
-
5415093806 Piston ringPiston ring
-
9230050 O-ringO-ring
-
10230061 Air valveAir valve
-
11415093804 O-ringO-ring
-
12230046 Rod assyRod assy
-
13230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
13230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
13230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
13230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
13503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
13503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
13503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
13503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
13503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
13503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
13503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
13503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
13503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
13503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
13503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
13503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
13503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
13503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
13503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
13503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
13503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
13503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
13503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
13503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
13230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
13230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
13230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
13230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
13230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
13230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
13503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
13503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
13503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
13230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
13230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
13230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
13503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
13503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
13503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
14230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
14230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
14230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
14230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
14503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
14503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
14503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
14503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
14503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
14503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
14503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
14503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
14503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
14503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
14503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
14503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
14503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
14503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
14503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
14503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
14503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
14503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
14503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
14503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
14230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
14230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
14230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
14230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
14230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
14230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
14503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
14503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
14503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
14230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
14230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
14230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
14503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
14503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
14503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
15230044 Piston 1.2 mmPiston 1.2 mm
-
15230038 Piston 1.7 mmPiston 1.7 mm
-
15230039 Piston 2.0 mmPiston 2.0 mm
-
15230110 Piston 2.2 mmPiston 2.2 mm
-
15230043 PistonPiston
