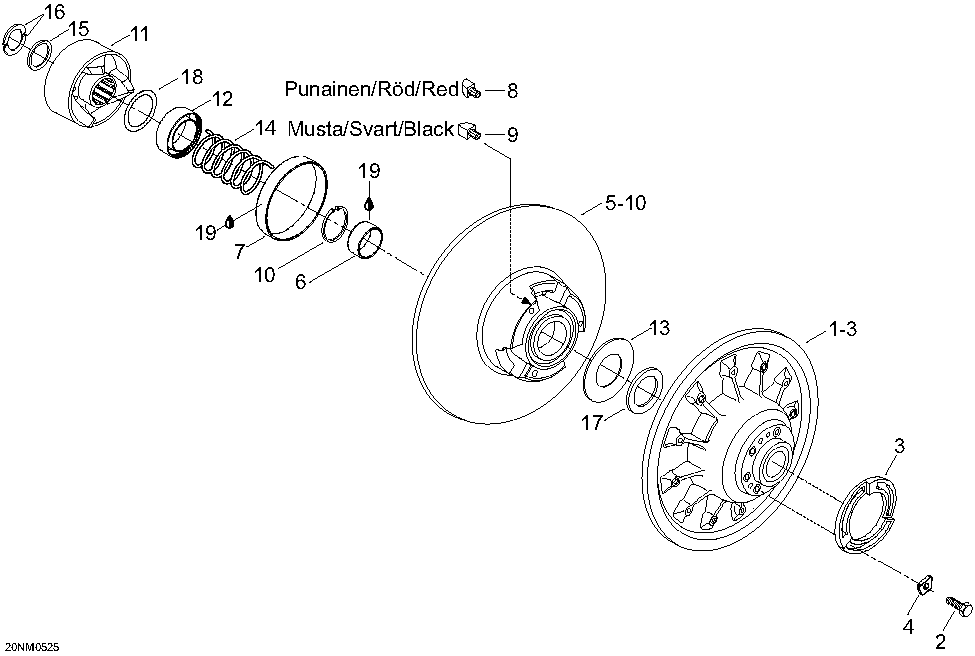

05- Driven pulley для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1417126603 Fixed half pulley assy. Includes 1 to 3Fixed half pulley assy. Includes 1 to 3
-
2207162544 Screw M6x25Screw M6x25
-
2207162244 Screw M6x22Screw M6x22
-
3415005800 Ring-adjustmentRing-adjustment
-
4415005900 Shim-adjustmentShim-adjustment
-
5417126851 Sliding pulley assy. Includes 5 to 10Sliding pulley assy. Includes 5 to 10
-
6414978200 BushingBushing
-
7414978100 BushingBushing
-
8417126373 Cam slide shoe (rear)Cam slide shoe (rear)
-
9417126374 Cam slide shoe (front)Cam slide shoe (front)
-
10371911200 CirclipCirclip
-
11417126385 Cam 47/44 degr.Cam 47/44 degr.
-
12417126381 ProtectorProtector
-
13504099600 Stopper washerStopper washer
-
14417126687 Spring, svartSpring, svart
-
15417126733 SpacerSpacer
-
16417126734 Half keyHalf key
-
17504112300 ShimShim
-
18417126322 SwivelSwivel
-
19413703100 Loctite 609 10ccLoctite 609 10cc
