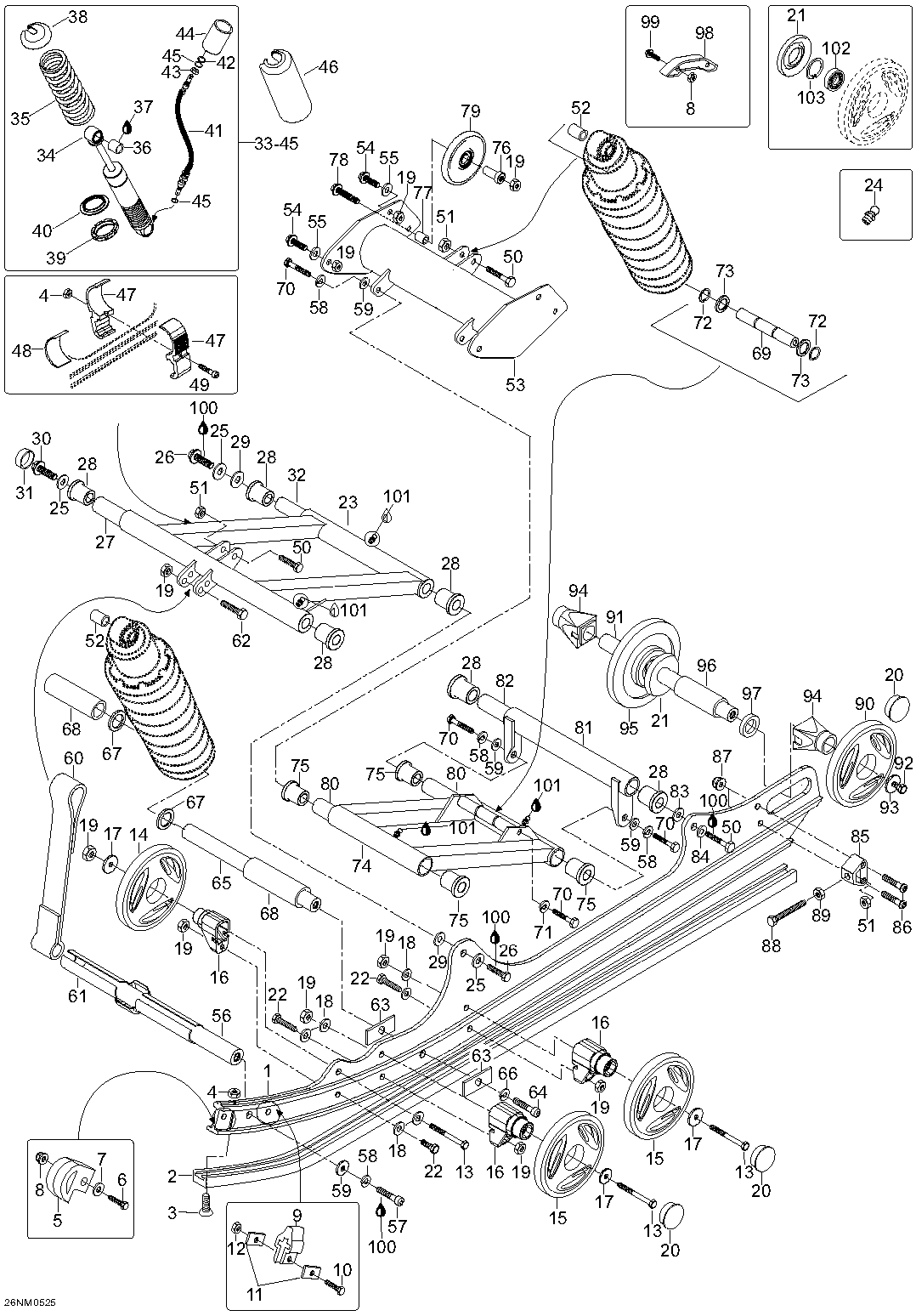

08- Rear Suspension для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1605252385 RunnerRunner
-
2605351309 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer 6mmWasher 6mm
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
1233010 Elastic stop nut M6Elastic stop nut M6
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190577 Idler wheel, (141)Idler wheel, (141)
-
15503190751 Idler wheel, (141)Idler wheel, (141)
-
16605451906 SupportSupport
-
17503183100 Washer 8mmWasher 8mm
-
1820104 Washer, hardened 8mmWasher, hardened 8mm
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20570063600 ProtectorProtector
-
21503190434 Labyrinth sealLabyrinth seal
-
2240037 Hex. screw M8 x 25Hex. screw M8 x 25
-
235145588 Front armFront arm
-
2434011 Grease nippleGrease nipple
-
2520090 WasherWasher
-
2640099 Hex. screw M12 x 45Hex. screw M12 x 45
-
275145588 ShaftShaft
-
2831024 CushionCushion
-
2920040 WasherWasher
-
3040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
315448025 CapCap
-
325346135 ShaftShaft
-
33605350834 Shock ass'y, front arm. Includes 33 to 45Shock ass'y, front arm. Includes 33 to 45
-
33605350639 Shock ass'y, rear armShock ass'y, rear arm
-
3423212 Shock, front armShock, front arm
-
3423194 Shock, rear armShock, rear arm
-
3525073 Spring, front armSpring, front arm
-
3525070 Spring, rear armSpring, rear arm
-
3631094 CushionCushion
-
37320006 Loctite 641, 50mlLoctite 641, 50ml
-
385346750 Spring stopperSpring stopper
-
39230048 CamCam
-
40230049 Spring guideSpring guide
-
41230111 HoseHose
-
42230112 WasherWasher
-
44230114 ReservoirReservoir
-
465346754 ProtectorProtector
-
47605352257 BracketBracket
-
48605452864 Rubber plateRubber plate
-
4940806 Socket head screw M6 x 50Socket head screw M6 x 50
-
5040016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5133012 Elastic stop nut M10Elastic stop nut M10
-
525446652 SleeveSleeve
-
53605249846 Upper armUpper arm
-
5440058 Locking screw M8 x 20Locking screw M8 x 20
-
5520005 Washer 10mmWasher 10mm
-
565343471 ShaftShaft
-
5740134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5820047 Lock washer 10mmLock washer 10mm
-
5920105 Washer, hardened, 10mmWasher, hardened, 10mm
-
60605449385 Stopper strapStopper strap
-
61605349381 LimiterLimiter
-
6240008 Hex. screw M8 x 45Hex. screw M8 x 45
-
63605449294 Support plateSupport plate
-
6440371 Socket head screw M12 x 55Socket head screw M12 x 55
-
65605350690 ShaftShaft
-
6620074 Lock washer 12mmLock washer 12mm
-
6731013 ShimShim
-
68605349896 SleeveSleeve
-
69605451897 ShaftShaft
-
7040014 Hex. screw M10 x 40Hex. screw M10 x 40
-
7120068 Lock washer 10mmLock washer 10mm
-
7231007 CirclipCirclip
-
7331091 ShimShim
-
74605349313 Rear armRear arm
-
7531027 CushionCushion
-
765446700 SleeveSleeve
-
775446701 SleeveSleeve
-
7840376 Locking screw M8 x 80Locking screw M8 x 80
-
7946027 Idler wheelIdler wheel
-
805346865 ShaftShaft
-
815345535 Rear armRear arm
-
825346900 ShaftShaft
-
8320116 WasherWasher
-
84512056700 Lock washerLock washer
-
855341633 TensionerTensioner
-
8640392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8733201 Elastic flanged nut M8Elastic flanged nut M8
-
8840239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8933004 Nut M10Nut M10
-
90503190752 Idler fheel (180mm)Idler fheel (180mm)
-
91503190429 ShaftShaft
-
9240050 Hex. screw M10 x 35Hex. screw M10 x 35
-
93503190439 WasherWasher
-
94503190428 SleeveSleeve
-
95503190395 Idler wheel (180mm)Idler wheel (180mm)
-
96503190430 SleeveSleeve
-
97503190432 SleeveSleeve
-
985343191 Slide partSlide part
-
9940064 Locking screw M6 x 40Locking screw M6 x 40
-
100293800005 Loctite 271, 10mlLoctite 271, 10ml
-
101293550033 Synthetic greaseSynthetic grease
-
102503190795 Ball bearingBall bearing
-
103371901700 CirclipCirclip
