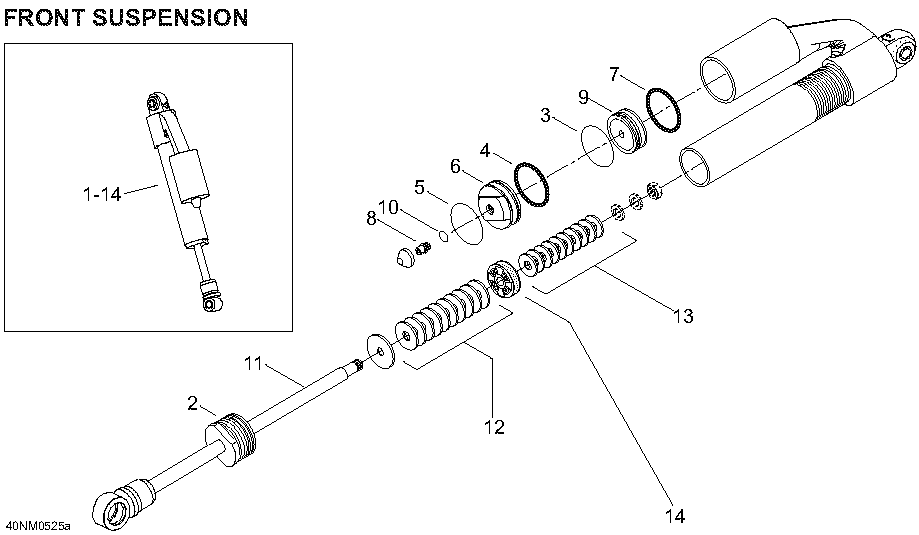

07- Take Apart Shock, Front для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
123196 R.H. Shock, ski T/A. Includes 1 to 14R.H. Shock, ski T/A. Includes 1 to 14
-
123195 L.H. Shock, ski T/A. Includes 1 to 14L.H. Shock, ski T/A. Includes 1 to 14
-
2230123 Seal carrier assySeal carrier assy
-
3415093806 Piston ringPiston ring
-
4415093804 O-ringO-ring
-
5415093805 Stop ringStop ring
-
7415093807 O-ringO-ring
-
8230061 Air valveAir valve
-
9415093812 Free pistonFree piston
-
10230050 O-ringO-ring
-
11230122 Rod assyRod assy
-
12415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
12414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
12414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
12414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
12414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
12414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
12414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
12415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
12414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
12414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
12414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
12230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
12414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
12414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
12230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
12414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
12414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
12414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
12230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
12230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
12414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
12414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
12230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
12230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
12230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
12230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
12230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
12414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
12414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
12415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
12230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
12414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
12230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
12414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
12414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
12414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
12415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
13415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
13414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
13414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
13414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
13414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
13414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
13414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
13415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
13414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
13414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
13414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
13230121 Leaf valve 17x0.203Leaf valve 17x0.203
-
13230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
13414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
13414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
13230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
13414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
13414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
13414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
13230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
13230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
13414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
13414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
13230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
13230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
13230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
13230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
13230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
13414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
13414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
13415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
13230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
13414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
13230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
13414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
13414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
13414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
13415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
14230027 Piston, 1 slitsPiston, 1 slits
-
14414888305 Manta, 2 slitsManta, 2 slits
-
14230028 Piston, 3 slitsPiston, 3 slits
-
14414888306 Piston, 4 slitsPiston, 4 slits
