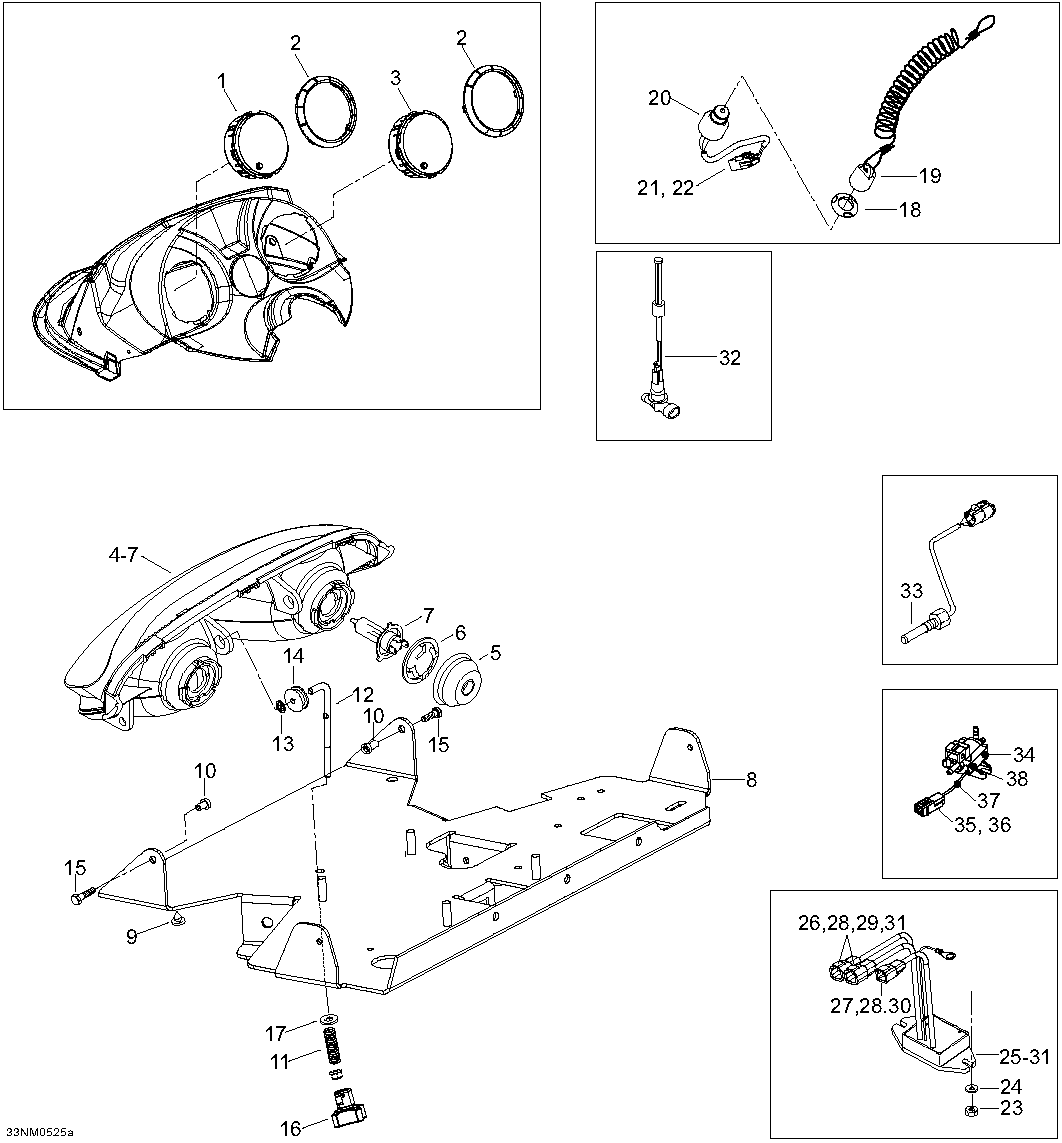

10- Electrical System для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515176275 TachometerTachometer
-
4515175603 halogen headlamp. Includes 4 to 7halogen headlamp. Includes 4 to 7
-
5410607100 CoverCover
-
6410608300 Bulp holderBulp holder
-
7410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
8605252399 Headlamp supportHeadlamp support
-
9605452114 PluggPlugg
-
10250100018 Well-nutWell-nut
-
11415100600 SpringSpring
-
12517295800 Adjuster RodAdjuster Rod
-
13732610072 Nut PushNut Push
-
14415100800 GrommetGrommet
-
1540231 Hex. screw M5 x 30Hex. screw M5 x 30
-
16515175975 KnobKnob
-
1720003 Washer A6,4Washer A6,4
-
18278000508 Plastic nutPlastic nut
-
19515166900 DESS capDESS cap
-
20515175145 DESS switchDESS switch
-
2142603 Male connectorMale connector
-
2242271 Male connector housingMale connector housing
-
2333010 Elastic stop nut M6Elastic stop nut M6
-
2420009 Washer A6.4Washer A6.4
-
25515176023 Voltage regulator. Includes 25 to 31Voltage regulator. Includes 25 to 31
-
26278001477 Male terminal housingMale terminal housing
-
27278001674 Male terminal housingMale terminal housing
-
28515175568 Male terminalMale terminal
-
29278001478 Male lockMale lock
-
30278001672 Male lockMale lock
-
31293000052 Sealing capSealing cap
-
32515176016 SensorSensor
-
33515176132 Temp sensorTemp sensor
-
34515176256 Heating elementHeating element
-
35515175654 Connector housingConnector housing
-
36515175232 Male terminalMale terminal
-
3742066 TubingTubing
-
38512059809 BracketBracket
