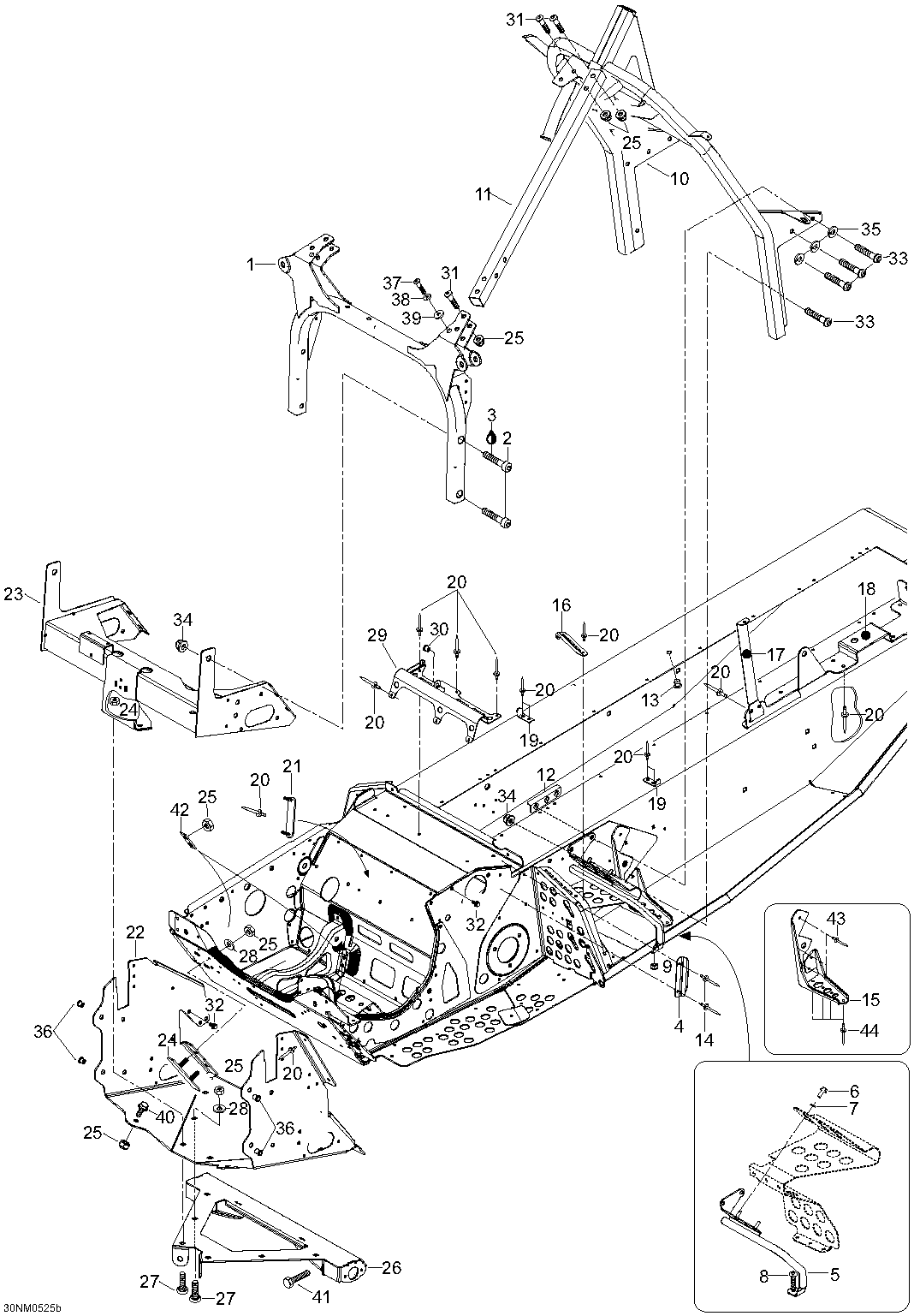

09- Frame And Components для BRP Lynx Enduro 600HO SDI - 2005
-
№АртикулНазвание
-
1605249856 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
3293800060 Liima Loctite 243 50mlLiima Loctite 243 50ml
-
4518317504 Cable protectorCable protector
-
5605351595 R.H. Toe hold supportR.H. Toe hold support
-
5605351594 L.H. Toe hold supportL.H. Toe hold support
-
640381 Socket head screw M6 x 20Socket head screw M6 x 20
-
720117 WasherWasher
-
840399 Socket head screw M8 x 16Socket head screw M8 x 16
-
933011 Elastic stop nut M8Elastic stop nut M8
-
10605250887 Handle supportHandle support
-
11605349876 Side barSide bar
-
12605350830 PlatePlate
-
1328135 PlugPlug
-
1436083 RivetRivet
-
15605351603 R.H. Side bracketR.H. Side bracket
-
15605351602 L.H. Side bracketL.H. Side bracket
-
16518322726 PlatePlate
-
17605352379 R.H. Steel stripR.H. Steel strip
-
17605352380 L.H. Steel stripL.H. Steel strip
-
18605351792 R.H. seat bracketR.H. seat bracket
-
18605351793 L.H. seat bracketL.H. seat bracket
-
19605452615 Bracket, seatBracket, seat
-
2036108 RivetRivet
-
21605451470 Bracket, fuel pumpBracket, fuel pump
-
22605250550 Front cross memberFront cross member
-
23605350136 Front supportFront support
-
24605452644 PlatePlate
-
2533011 Elastic stop nut M8Elastic stop nut M8
-
26605252309 SubframeSubframe
-
2740058 Locking screw M8 x 20Locking screw M8 x 20
-
2820010 Washer A8,4Washer A8,4
-
29518323532 Air intake supportAir intake support
-
3036086 Rivet nut M6Rivet nut M6
-
3140137 Socket head screw M8 x 40Socket head screw M8 x 40
-
3240327 Hex. screw M6 x 12Hex. screw M6 x 12
-
3340351 Socket head screw M8 x 20Socket head screw M8 x 20
-
3433201 Elastic flanged nut M8Elastic flanged nut M8
-
3520014 Lock washer A8Lock washer A8
-
3633043 Nut M6Nut M6
-
3740332 Socket head screw M6 x 16Socket head screw M6 x 16
-
3820052 Lock waher A6Lock waher A6
-
3920009 Washer A6.4Washer A6.4
-
4040386 Screw M8 x 30Screw M8 x 30
-
4140037 Screw M8 x 25Screw M8 x 25
-
42605452373 WasherWasher
-
4336489 RivetRivet
-
4436007 RivetRivet
