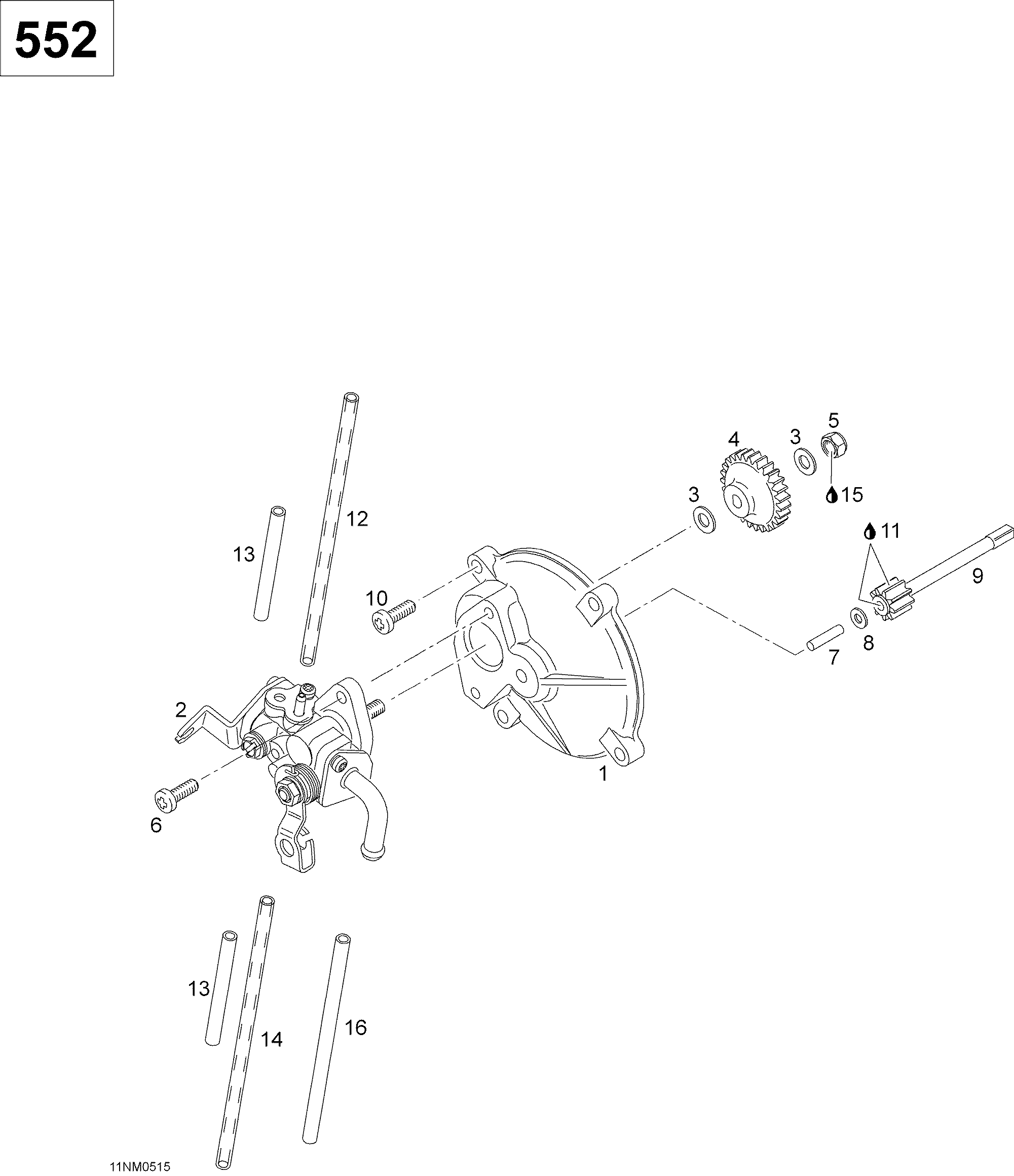

02- Oil Pump 552 для BRP Lynx Ranger 550 - 2005
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420889070 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841971 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841976 Screw M5.5 x 20Screw M5.5 x 20
-
11293800060 Loctite 243, 10mlLoctite 243, 10ml
-
12420660491 Oil line, 270mmOil line, 270mm
-
13420960729 Isolation hose, 150mmIsolation hose, 150mm
-
14420660429 Oil line, 380mmOil line, 380mm
-
15293800060 Loctite 243, 10mlLoctite 243, 10ml
-
16420460170 Insulation tubing. Ranger 550Insulation tubing. Ranger 550
