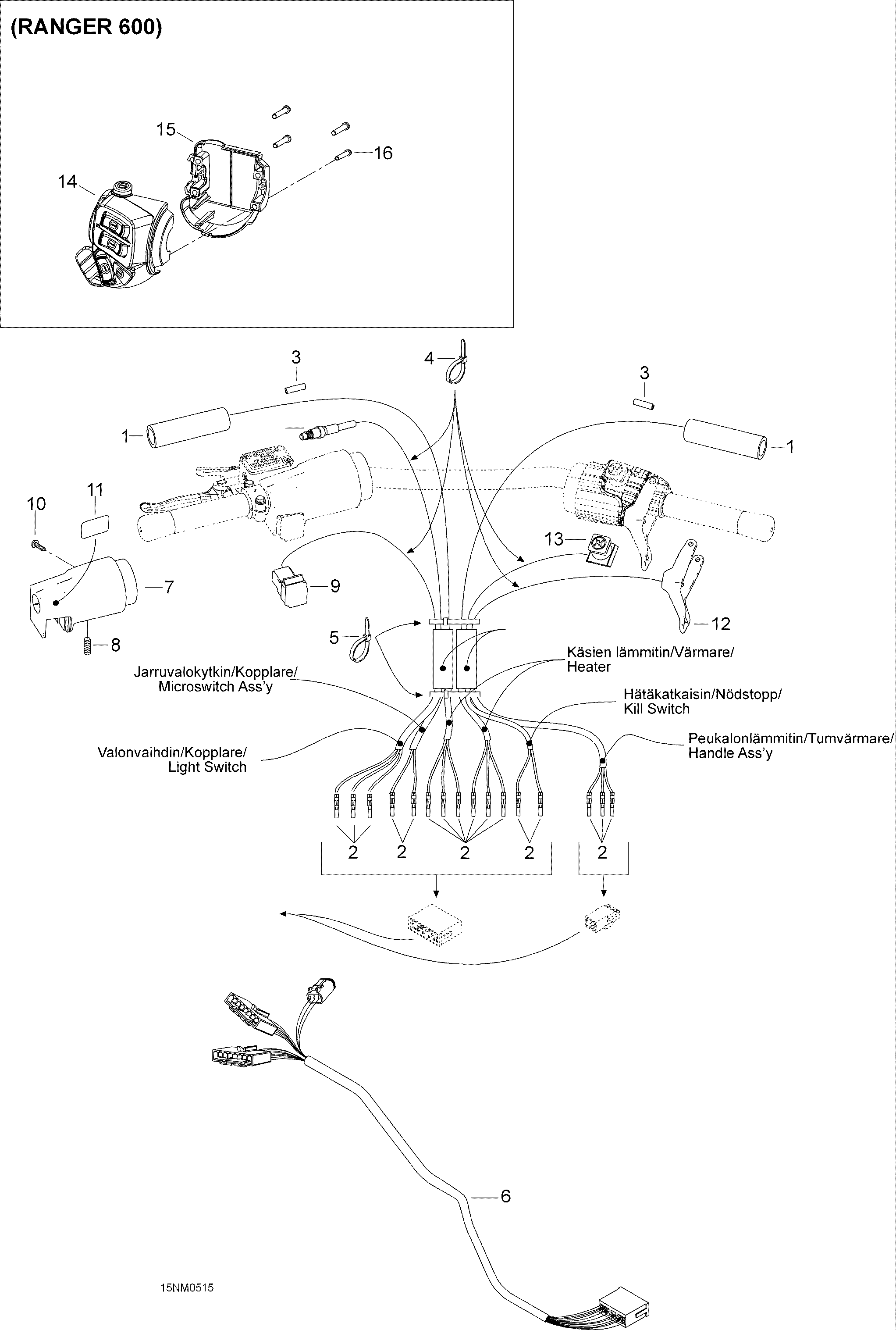

10- Steering Harness для BRP Lynx Ranger 550 - 2005
-
№АртикулНазвание
-
1515175657 HeaterHeater
-
242603 ConnectorConnector
-
339023 TubingTubing
-
427010 Tie-rap 98mmTie-rap 98mm
-
527100 Tie-rap 363mmTie-rap 363mm
-
65147106 Wiring harness. Ranger 550Wiring harness. Ranger 550
-
6605350751 Wiring harness. Ranger 600Wiring harness. Ranger 600
-
7515175696 Brake housingBrake housing
-
8114144408 Screw M8 x 10Screw M8 x 10
-
9515175390 Light switchLight switch
-
10250000022 ScrewScrew
-
11415025500 DecalDecal
-
12512059624 Throttle handle. Ranger 550Throttle handle. Ranger 550
-
12512059107 Throttle handle. Ranger 600Throttle handle. Ranger 600
-
13515175410 Switch killSwitch kill
-
14515176062 Housing. Ranger 600Housing. Ranger 600
-
15515175926 Cover. Ranger 600Cover. Ranger 600
-
1640903 Plastofast-screw 3.5 x 25. Ranger 600Plastofast-screw 3.5 x 25. Ranger 600
