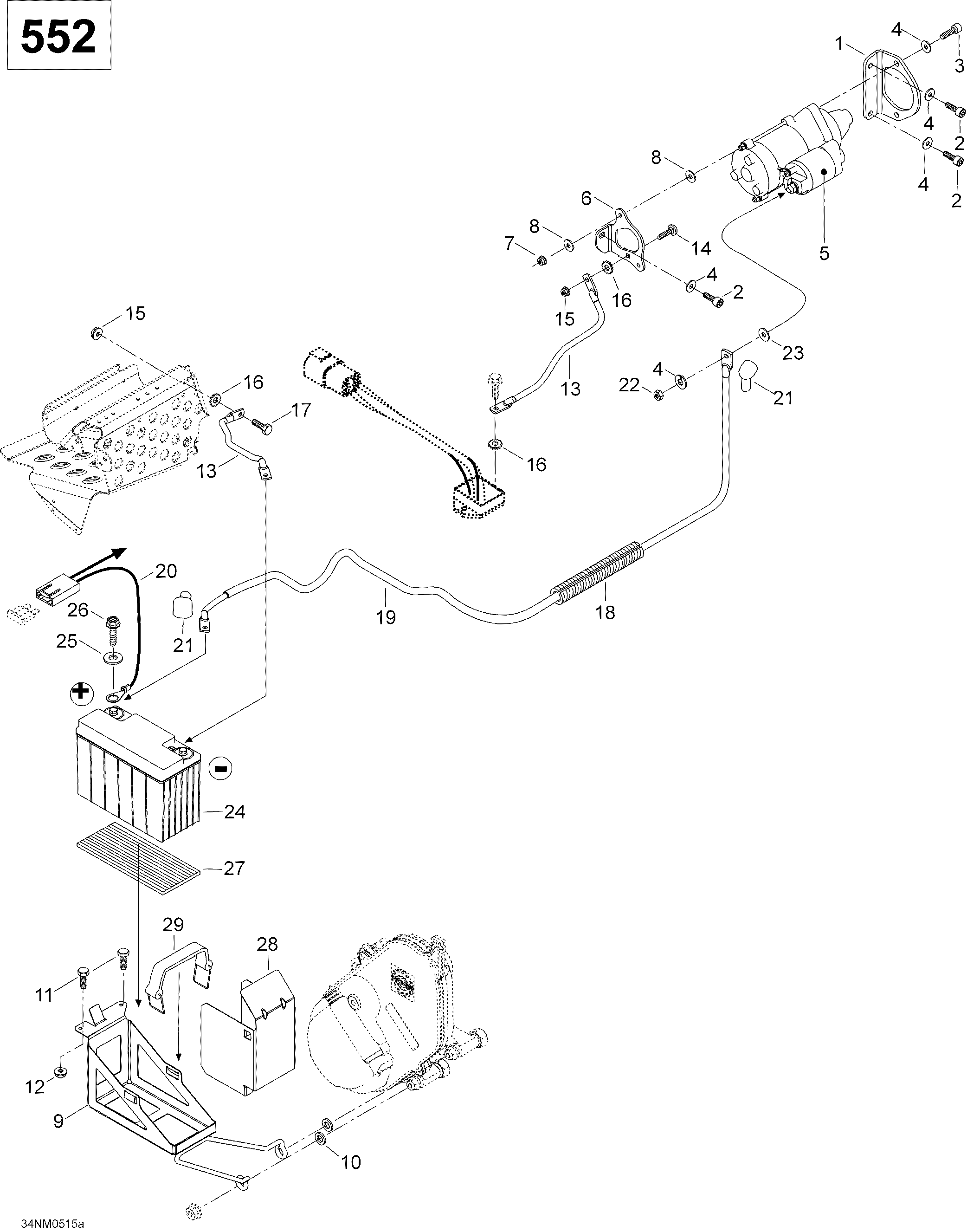

10- Battery And Starter, 550 для BRP Lynx Ranger 550 - 2005
-
№АртикулНазвание
-
1515175652 Bracket, PTOBracket, PTO
-
240305 Socket head screw M8 x 20Socket head screw M8 x 20
-
340289 Socket head screw M8 x 25Socket head screw M8 x 25
-
420014 Spring washerSpring washer
-
5515175141 StarterStarter
-
6515175633 Bracket, MAGBracket, MAG
-
733009 Elastic stop nut M5Elastic stop nut M5
-
8391301700 WasherWasher
-
9515175848 BracketBracket
-
1020005 Washer A10,5Washer A10,5
-
1140247 Screw M5 x 16Screw M5 x 16
-
1233062 Elastic flanged nut M5Elastic flanged nut M5
-
13515175483 Ground wireGround wire
-
1440866 Locking screw M6 x 20Locking screw M6 x 20
-
1533200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
1620017 Serrated lock washer M6Serrated lock washer M6
-
1740029 Hex. screw M6 x 16Hex. screw M6 x 16
-
1828012 TubingTubing
-
19
-
205446894 Chargening wireChargening wire
-
21570151000 Cap protectionCap protection
-
2233003 Nut M8Nut M8
-
2320004 Washer A8,4Washer A8,4
-
24515175642 Battery. Includes 24 to 26Battery. Includes 24 to 26
-
25391302100 WasherWasher
-
26207161644 Screw M6 x 16Screw M6 x 16
-
275347314 RubberRubber
-
28515175643 Heat protectorHeat protector
-
29515175475 Battery strapBattery strap
