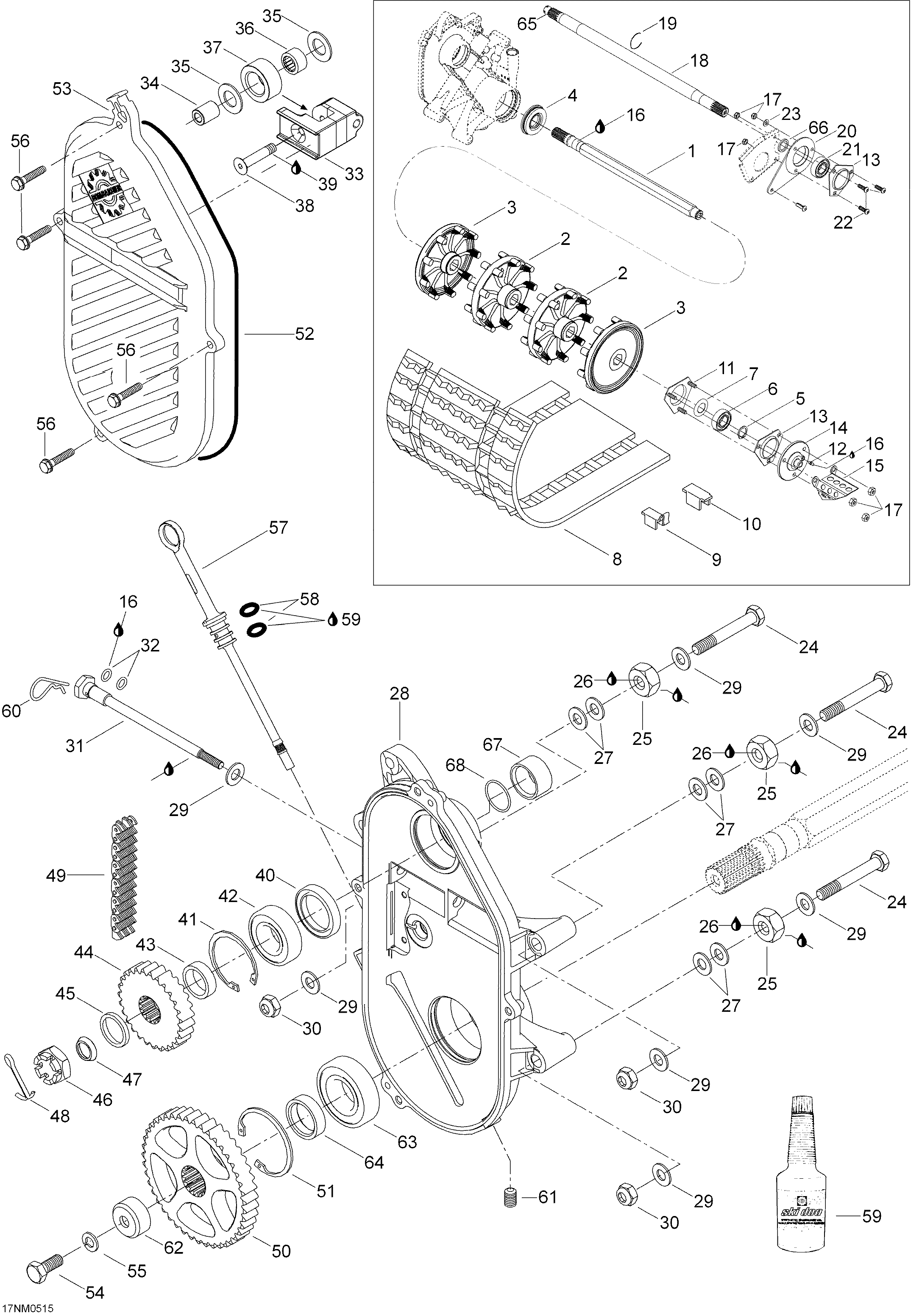

05- Drive System для BRP Lynx Ranger 550 - 2005
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket 9 teethSprocket 9 teeth
-
3504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
531001 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
813057 Track ass'y. Ranger 550Track ass'y. Ranger 550
-
8504152039 Track ass'y (31,8)Track ass'y (31,8)
-
95318330 Guide cleat. Ranger 550Guide cleat. Ranger 550
-
105318329 Cleat. Ranger 550Cleat. Ranger 550
-
11504151860 Bearing housingBearing housing
-
1234011 Grease fittingGrease fitting
-
13501025000 FlangeFlange
-
14504151836 FlangeFlange
-
15517290100 Cable protectorCable protector
-
16293550033 Synthetic greaseSynthetic grease
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18504151858 Countershaft. Ranger 550Countershaft. Ranger 550
-
18501026300 Countershaft. Ranger 600Countershaft. Ranger 600
-
19371910000 CirclipCirclip
-
20080044200 Casting SpacerCasting Spacer
-
21504152008 Ball bearing. Ranger 550Ball bearing. Ranger 550
-
21504152026 Ball bearing. Ranger 600Ball bearing. Ranger 600
-
2240344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2320004 Washer A8,4Washer A8,4
-
2440190 Hex, screw M10 x 80Hex, screw M10 x 80
-
25504083800 SpacerSpacer
-
26293800060 Loctite 243, 10mlLoctite 243, 10ml
-
27504073700 ShimShim
-
28504152064 ChaincaseChaincase
-
2920005 Washer A10,5Washer A10,5
-
3033012 Elastic stop nut M10Elastic stop nut M10
-
31732601314 Screw adjustingScrew adjusting
-
32414484400 O-ringO-ring
-
33504151951 Chain tensioner. Ranger 550Chain tensioner. Ranger 550
-
33504151940 Chain tensioner. Ranger 600Chain tensioner. Ranger 600
-
34504080200 SleeveSleeve
-
35504080300 WasherWasher
-
36405403000 Needle bearingNeedle bearing
-
37414531300 RollerRoller
-
38732601144 ScrewScrew
-
39293800005 Loctite 271, 10mlLoctite 271, 10ml
-
40504151927 Seal. Ranger 550Seal. Ranger 550
-
40415049300 Seal. Ranger 600Seal. Ranger 600
-
41371901700 CirclipCirclip
-
42504152006 Ball bearingBall bearing
-
43504147200 ShimShim
-
44504152031 Sprocket Z19. Ranger 550Sprocket Z19. Ranger 550
-
44504096200 Sprocket Z21. Ranger 600Sprocket Z21. Ranger 600
-
45605449796 SpacerSpacer
-
46232210414 Nut M16. Ranger 550Nut M16. Ranger 550
-
46250000012 Nut M20. Ranger 600Nut M20. Ranger 600
-
47417000900 Washer. Ranger 550Washer. Ranger 550
-
4841003 PinPin
-
49504151830 Chain 72/13. Ranger 550Chain 72/13. Ranger 550
-
49504151857 Chain 74/13. Ranger 600Chain 74/13. Ranger 600
-
50504148500 Sprocket Z43/13Sprocket Z43/13
-
51415064300 CirclipCirclip
-
52415046400 SealSeal
-
53504152027 CoverCover
-
5440040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5520068 Lock washerLock washer
-
5640340 Socket head screw M6 x 30Socket head screw M6 x 30
-
57504151703 Filler cap ass'yFiller cap ass'y
-
58414969400 O-ringO-ring
-
59413803300 Synt. chaincase oil (12 x 355ml)Synt. chaincase oil (12 x 355ml)
-
60414575600 PinPin
-
61504151921 PlugPlug
-
62501022400 SleeveSleeve
-
63504152005 Ball bearingBall bearing
-
64501021800 SleeveSleeve
-
65414784800 Kork. Ranger 600Kork. Ranger 600
-
66504149100 Sleeve. Ranger 600Sleeve. Ranger 600
-
67507031500 Sleeve. Ranger 600Sleeve. Ranger 600
-
68414876700 O-ring. Ranger 600O-ring. Ranger 600
