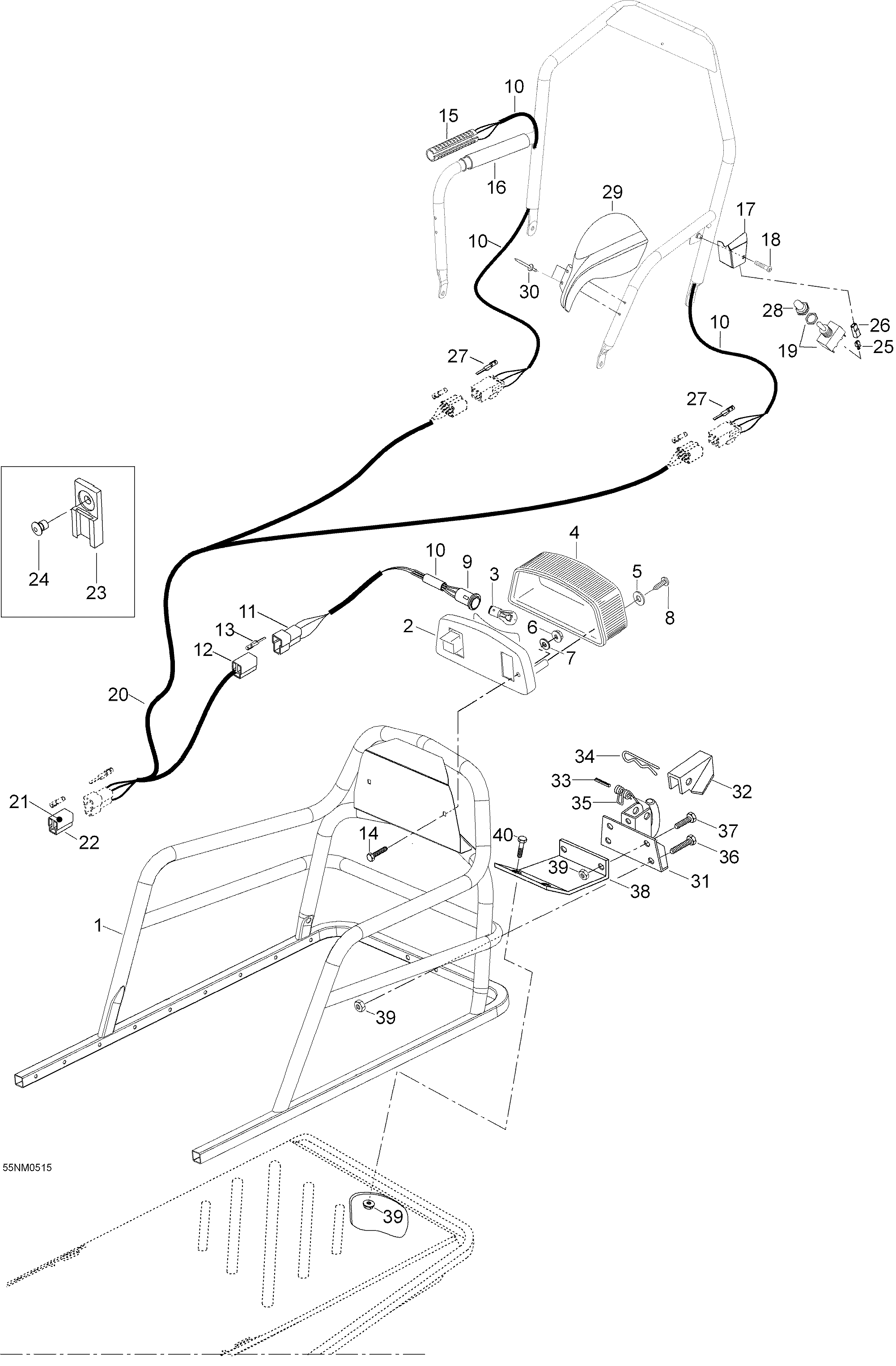

09- Rack для BRP Lynx Ranger 550 - 2005
-
№АртикулНазвание
-
1605150300 Rack. Ranger 550Rack. Ranger 550
-
1605352080 Rack. Ranger 600Rack. Ranger 600
-
2515175397 Taillamp housingTaillamp housing
-
3410504000 BulbBulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
720004 Washer A8,4Washer A8,4
-
8414516300 ScrewScrew
-
9515175852 Wiring harnessWiring harness
-
1039023 TubingTubing
-
1142271 Male connector housingMale connector housing
-
1242606 Female connector housingFemale connector housing
-
1342614 ConnectorConnector
-
1440149 Locking screw M6 x 30Locking screw M6 x 30
-
15515175573 HeaterHeater
-
16415050300 GripGrip
-
17605350310 BracketBracket
-
1840393 Socket head screw M6 x 30Socket head screw M6 x 30
-
19410107300 SwitchSwitch
-
20605250449 Wiring harnessWiring harness
-
21409206900 Male connector housingMale connector housing
-
22409207500 LockLock
-
23270000141 ClipClip
-
2436009 RivetRivet
-
2542178 ConnectorConnector
-
2642179 Connector housingConnector housing
-
2742603 ConnectorConnector
-
28515175281 CoverCover
-
29572089400 R.H. Passengers hand grip shelterR.H. Passengers hand grip shelter
-
29572089500 L.H. Passengers hand grip shelterL.H. Passengers hand grip shelter
-
3036037 RivetRivet
-
-5344156 Hitch Assy. Includes 31 to 35Hitch Assy. Includes 31 to 35
-
315344208 Hitch WeldHitch Weld
-
325440767 LockLock
-
3341012 Spring PinSpring Pin
-
3441029 Needle PinNeedle Pin
-
35545693 SpringSpring
-
3640007 Hex. screw M8 x 40Hex. screw M8 x 40
-
3740037 Hex. screw M8 x 25Hex. screw M8 x 25
-
38605349063 Support. Ranger 550Support. Ranger 550
-
38605350748 Support. Ranger 600Support. Ranger 600
-
3933201 Elastic flanged nut M8Elastic flanged nut M8
-
4040036 Hex. screw M8 x 20Hex. screw M8 x 20
