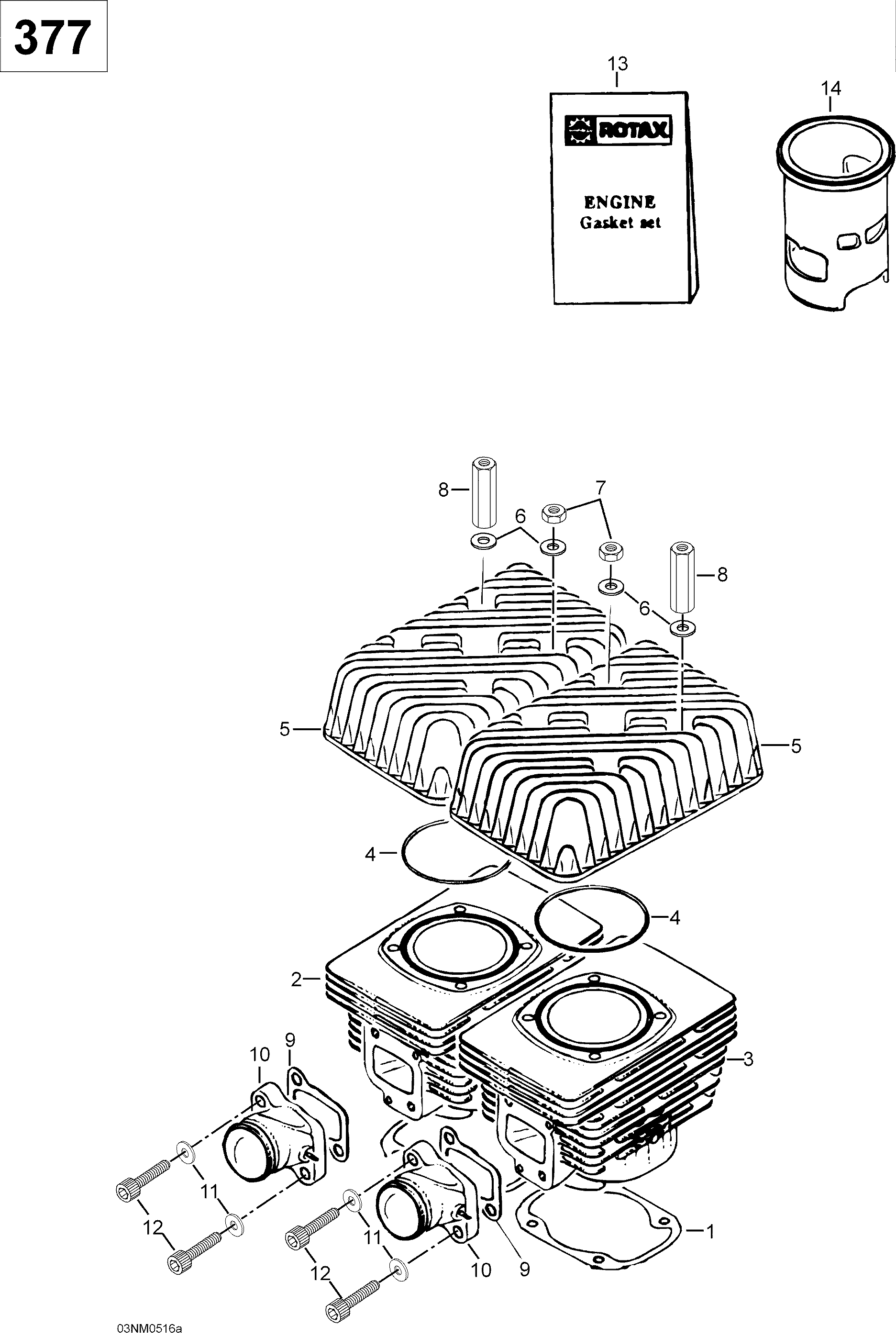

01- Cylinder And Cylinder Head, 377 для BRP Lynx Safari 400 - 2005
-
№АртикулНазвание
-
1420931781 Gasket 0.4Gasket 0.4
-
2420923403 Cylinder With Sleeve, PTOCylinder With Sleeve, PTO
-
3420923408 Cylinder With Sleeve, MagCylinder With Sleeve, Mag
-
4420931380 O-ringO-ring
-
5420613630 Cylinder HeadCylinder Head
-
620004 WasherWasher
-
7420242206 Nut M8Nut M8
-
8420842208 Distance Nut M8 X 51Distance Nut M8 X 51
-
9420831866 Intake gasket 1,0 mmIntake gasket 1,0 mm
-
10420867400 Intake manifoldIntake manifold
-
1120014 Spring washerSpring washer
-
12420841591 Screw M8 X 35Screw M8 X 35
-
13420994232 Gasket Set, EngineGasket Set, Engine
-
14420923781 Spare cylinder sleeveSpare cylinder sleeve
