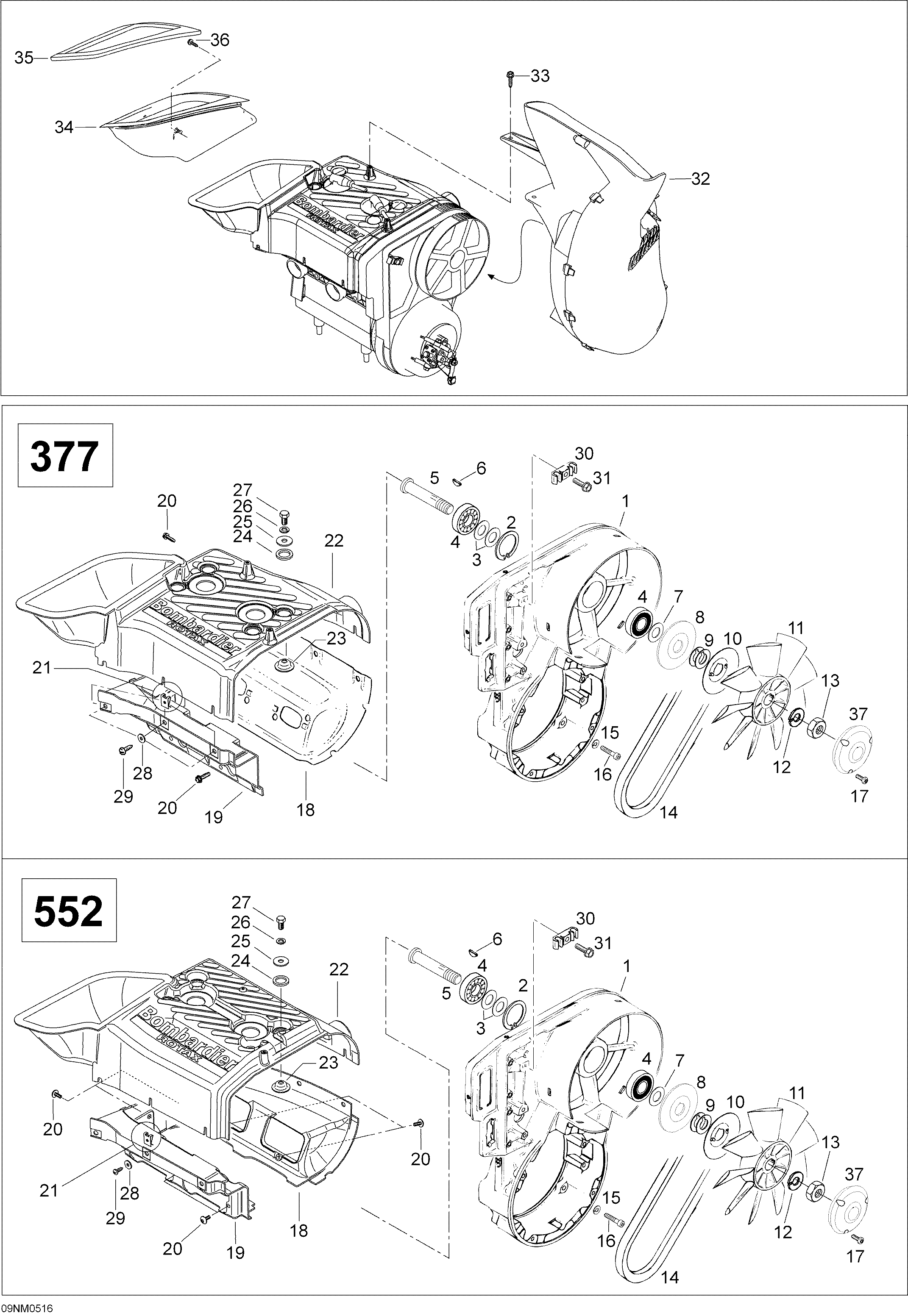

01- Fan, 400, 400E для BRP Lynx Safari 400 - 2005
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4420832161 Ball BearingBall Bearing
-
5420937940 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866294 FanFan
-
12420945756 Lock WasherLock Washer
-
13420942285 Hex Nut M16 X 1.5Hex Nut M16 X 1.5
-
14414630800 V-Belt. Safari 400_Safari 400 EV-Belt. Safari 400_Safari 400 E
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16420440642 Torx Flanged Screw M6 X 30Torx Flanged Screw M6 X 30
-
17420841971 ScrewScrew
-
18420810764 Cylinder Cowl. Safari 400_Safari 400 ECylinder Cowl. Safari 400_Safari 400 E
-
19420811805 Lower cowl. Safari 400_Safari 400 ELower cowl. Safari 400_Safari 400 E
-
20420240580 Taptite Screw M6 X 16. Safari 400_Safari 400 ETaptite Screw M6 X 16. Safari 400_Safari 400 E
-
21417300005 Spring Nut 4.8Spring Nut 4.8
-
22420811800 Upper case. Safari 400_Safari 400 EUpper case. Safari 400_Safari 400 E
-
23420827817 Cup WasherCup Washer
-
24420960865 Rubber WasherRubber Washer
-
25420227935 WasherWasher
-
26420945752 Lock Washer 8 mmLock Washer 8 mm
-
27420440852 Torx Flanged Screw M8 X 16Torx Flanged Screw M8 X 16
-
28420926180 Flat WasherFlat Washer
-
29417300006 Tapping Screw M4.8 X 16Tapping Screw M4.8 X 16
-
30420860945 ClampClamp
-
31420841555 Tapping Screw M5 X 20Tapping Screw M5 X 20
-
32509000218 Inlet DuctInlet Duct
-
33243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
345247489 Outlet DuctOutlet Duct
-
355247592 SealSeal
-
3640177 Screw B4,8 x 16Screw B4,8 x 16
-
37420975900 Fan coverFan cover
