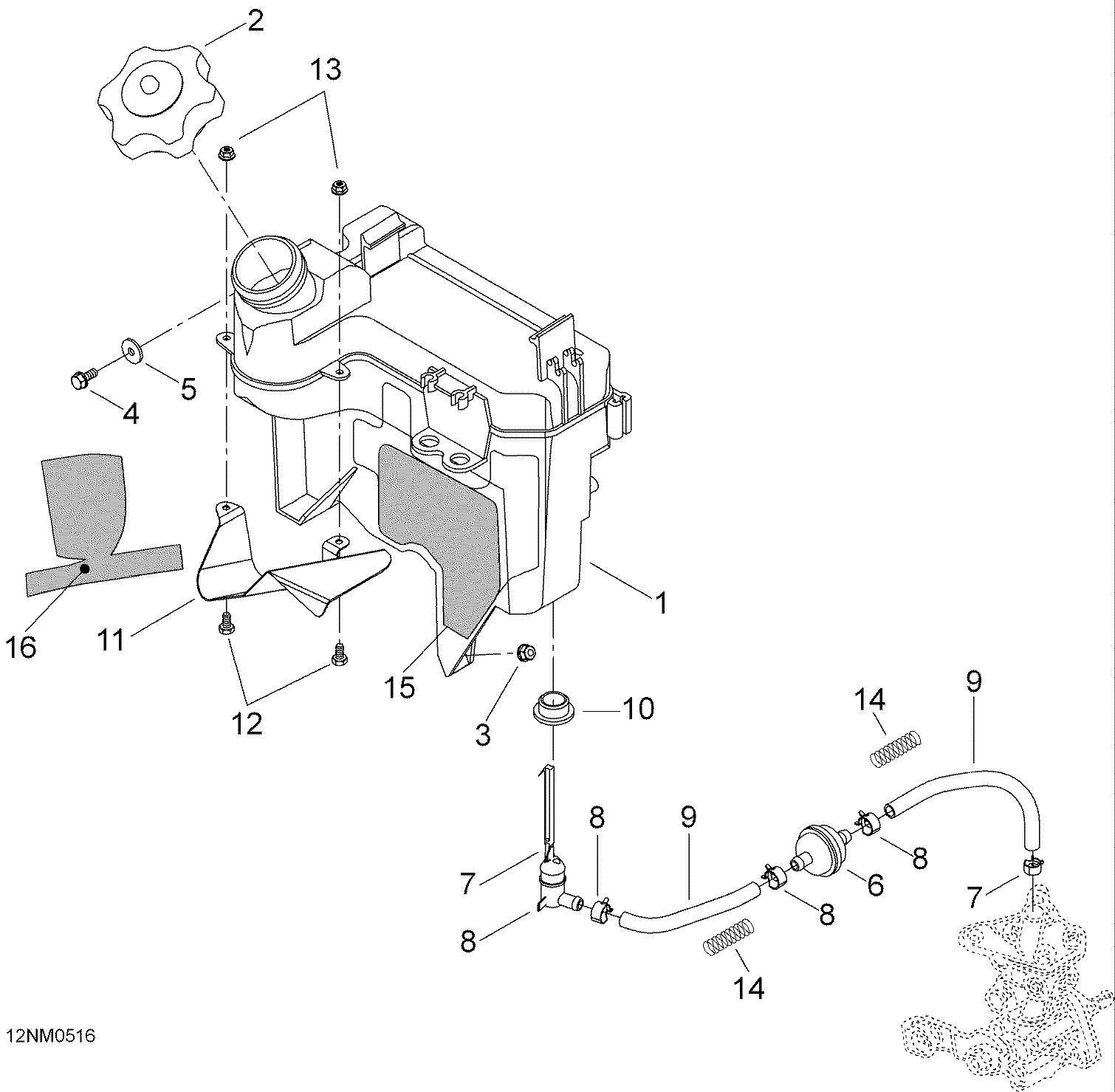

02- Oil Reservoir для BRP Lynx Safari 400 - 2005
-
№АртикулНазвание
-
1519000041 Injection Oil TankInjection Oil Tank
-
2519000042 CapCap
-
333200 Elastic flange nut M6Elastic flange nut M6
-
440327 Self tapping screw M6Self tapping screw M6
-
520017 Serrated lock washerSerrated lock washer
-
6414536500 Fuel FilterFuel Filter
-
7414420700 Spring ClampSpring Clamp
-
8414415200 Spring ClampSpring Clamp
-
939046 HoseHose
-
10570023000 Insulating RingInsulating Ring
-
115348098 DeflectorDeflector
-
1240026 Screw M5 x 12Screw M5 x 12
-
1333062 Elastic flange nut M5Elastic flange nut M5
-
14414940300 SpringSpring
-
15519000059 Reflective SheetReflective Sheet
-
16519000051 Reflective SheetReflective Sheet
