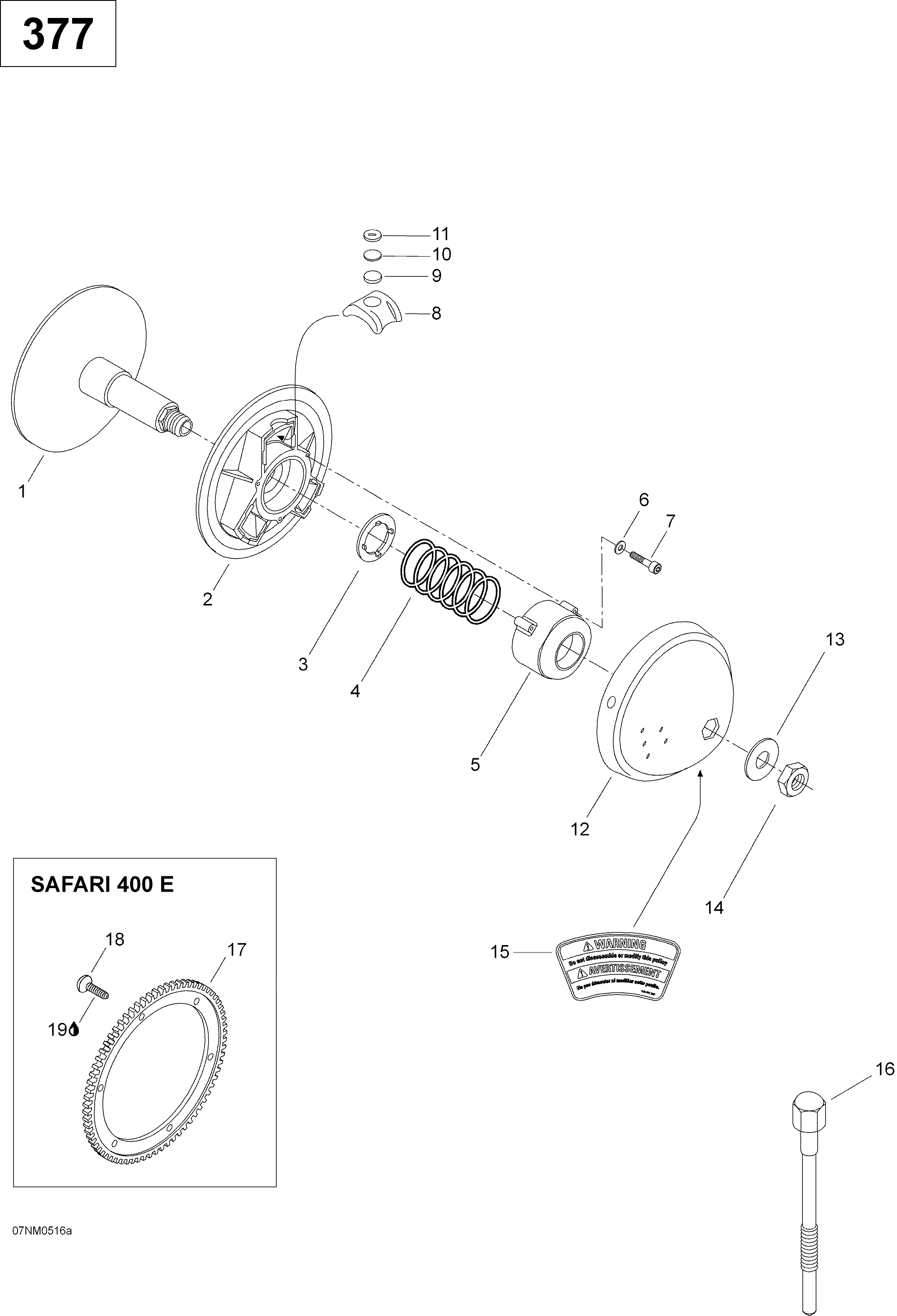

05- Drive Pulley, 400 для BRP Lynx Safari 400 - 2005
-
№АртикулНазвание
-
1417126690 Fixed half pulleyFixed half pulley
-
2417126692 Sliding FlangeSliding Flange
-
3417126694 Spring SeatSpring Seat
-
4417126621 Spring, violetSpring, violet
-
5417126622 Spring CoverSpring Cover
-
6420245370 WasherWasher
-
7205064086 Socket Screw M6 X 40Socket Screw M6 X 40
-
8417126623 Centrifugal blockCentrifugal block
-
9417120400 Adjustment WeighAdjustment Weigh
-
10417114400 Adjustment WeighAdjustment Weigh
-
11417114500 CAPSuleCAPSule
-
12417126696 Domed cupDomed cup
-
13415128610 WasherWasher
-
14417118300 NutNut
-
15516001726 Security LabelSecurity Label
-
16529031400 Puller inner halfPuller inner half
