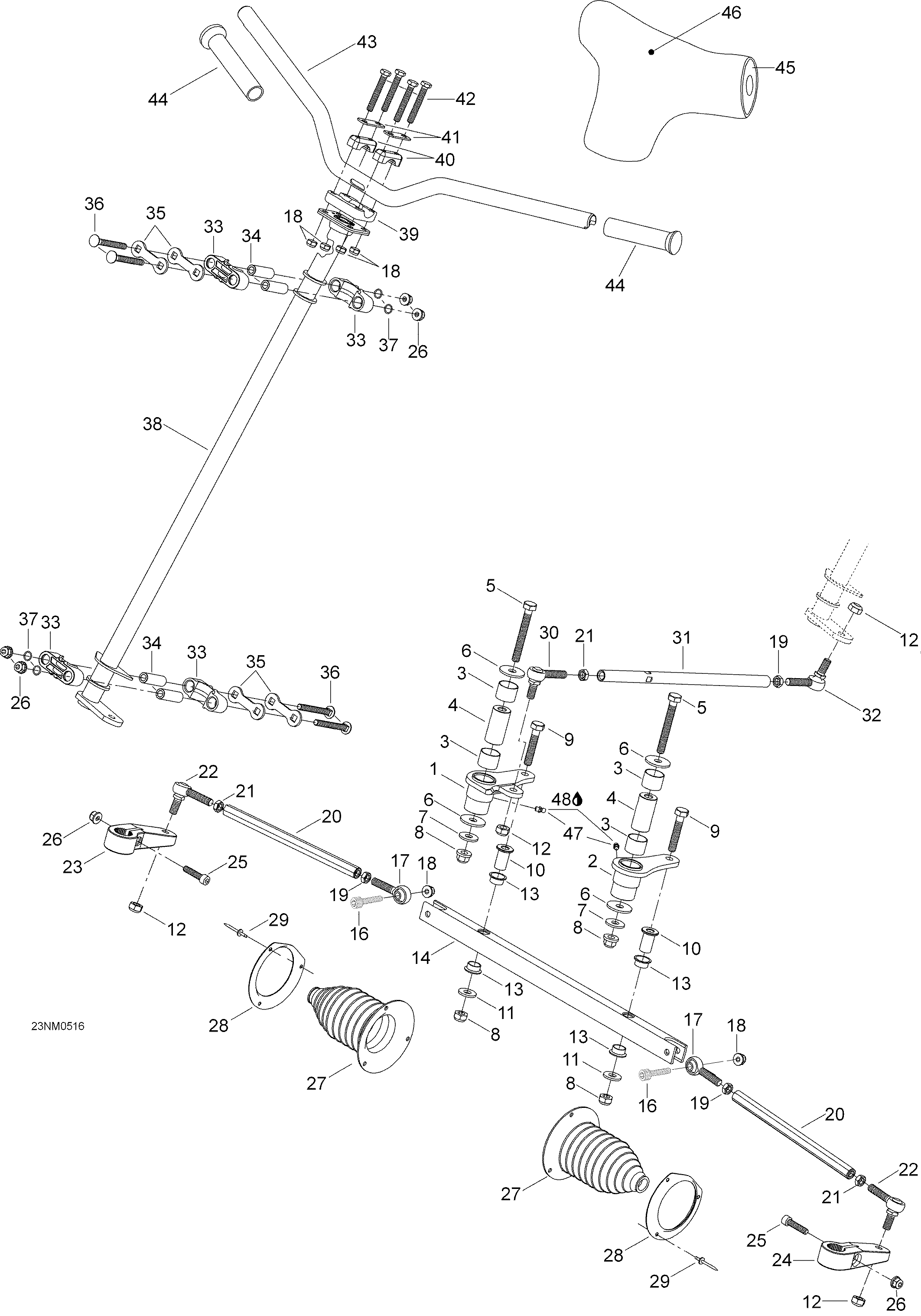

07- Steering System для BRP Lynx Safari 400 - 2005
-
№АртикулНазвание
-
1506151506 RH Swivel ArmRH Swivel Arm
-
2506151623 LH Swivel ArmLH Swivel Arm
-
3506149900 Bushing SwivelBushing Swivel
-
4506150100 Pivot SwivelPivot Swivel
-
540229 Hex. screw M10 x 80Hex. screw M10 x 80
-
620080 WasherWasher
-
720101 Washer, hardened M10Washer, hardened M10
-
833012 Elastic stop nut M10Elastic stop nut M10
-
940018 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506147300 Bar PivotBar Pivot
-
1120028 WasherWasher
-
1233023 Nut elastic M10Nut elastic M10
-
13506150200 Bushing SwivelBushing Swivel
-
14605348756 Bar-swivelBar-swivel
-
1640395 Allen screw M8 x 35Allen screw M8 x 35
-
17506151496 LH Ball JointLH Ball Joint
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
19732610011 L.H. jam nut M10L.H. jam nut M10
-
205346200 Tie RodTie Rod
-
21732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
22506151491 Ball JointBall Joint
-
23506145800 RH Steering ArmRH Steering Arm
-
24506145900 LH Steering ArmLH Steering Arm
-
2540843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2633201 Elastic flanged nut M8Elastic flanged nut M8
-
27570070500 Tie-Rod CapTie-Rod Cap
-
285347006 Retainer ringRetainer ring
-
2936009 RivetRivet
-
30506151492 RH Ball JointRH Ball Joint
-
31506151375 Tie-RodTie-Rod
-
32506151495 LH Ball JointLH Ball Joint
-
33506150400 Housing HalfHousing Half
-
34506150500 Housing BushingHousing Bushing
-
35506150600 Stopper PlateStopper Plate
-
36207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
37506151140 O-RingO-Ring
-
38506147100 Main TubeMain Tube
-
39277000142 Steering ClampSteering Clamp
-
40506151622 Steering SupportSteering Support
-
41506151196 ReinforcementReinforcement
-
4240010 Hex. screw M8 x 55Hex. screw M8 x 55
-
43605249302 Handle barHandle bar
-
445340464 GripGrip
-
45506151262 FoamFoam
-
465248010 CoverCover
-
4734011 Grease fittingGrease fitting
-
48413711500 Synthetic greaseSynthetic grease
