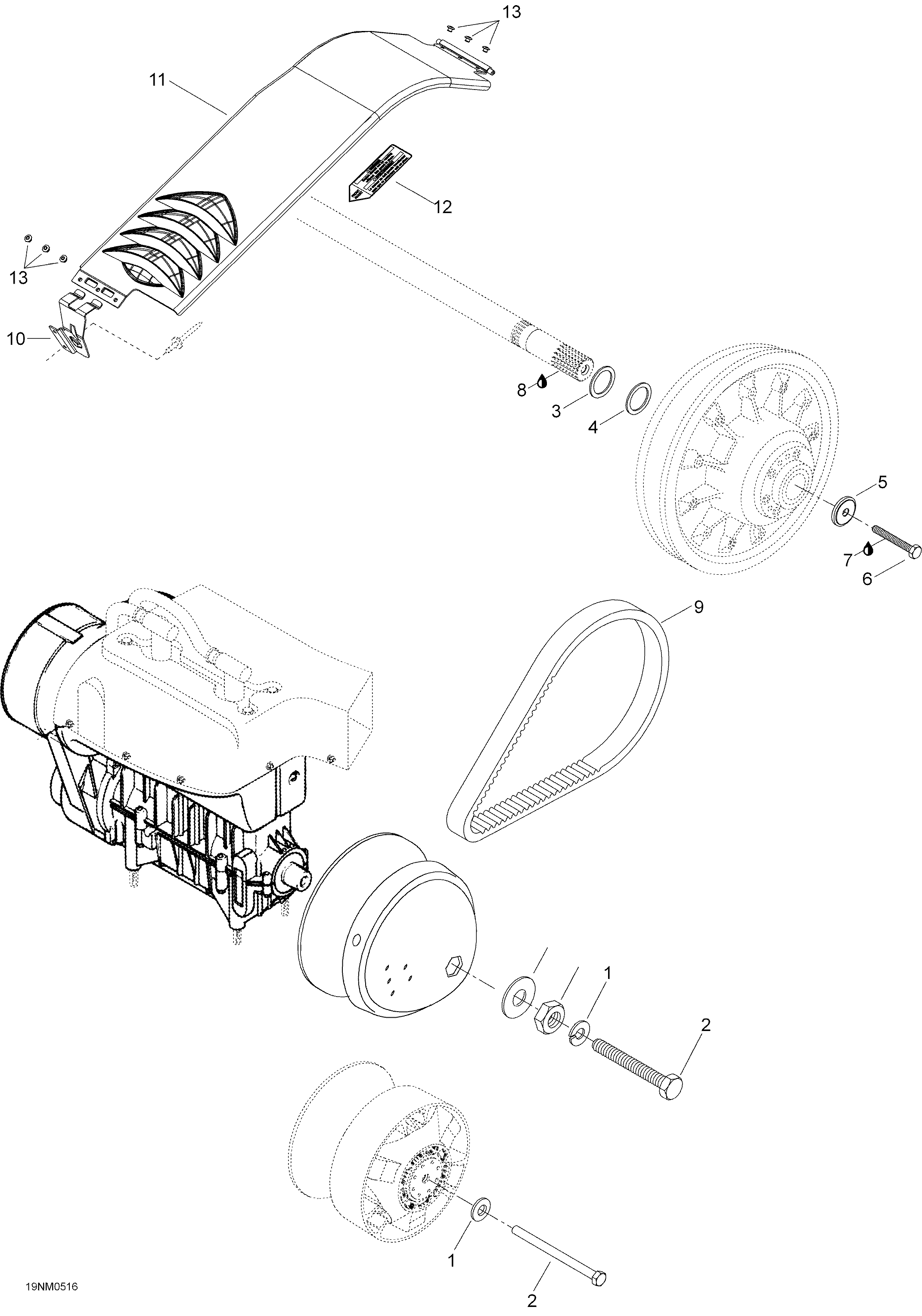

05- Pulley System для BRP Lynx Safari 400E - 2005
-
№АртикулНазвание
-
120090 WasherWasher
-
2417113800 BoltBolt
-
3417300054 SpacerSpacer
-
4417300055 ProtectorProtector
-
5517302322 Strength WasherStrength Washer
-
640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
7293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
8293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
9415060600 Drive BeltDrive Belt
-
10417300172 BracketBracket
-
11417300173 Belt Guard Ass’Y. Includes 11 to 13Belt Guard Ass’Y. Includes 11 to 13
-
12516001190 Label Security (Belt Guard)Label Security (Belt Guard)
-
13390402200 Pop Rivet 3/16”Pop Rivet 3/16”
