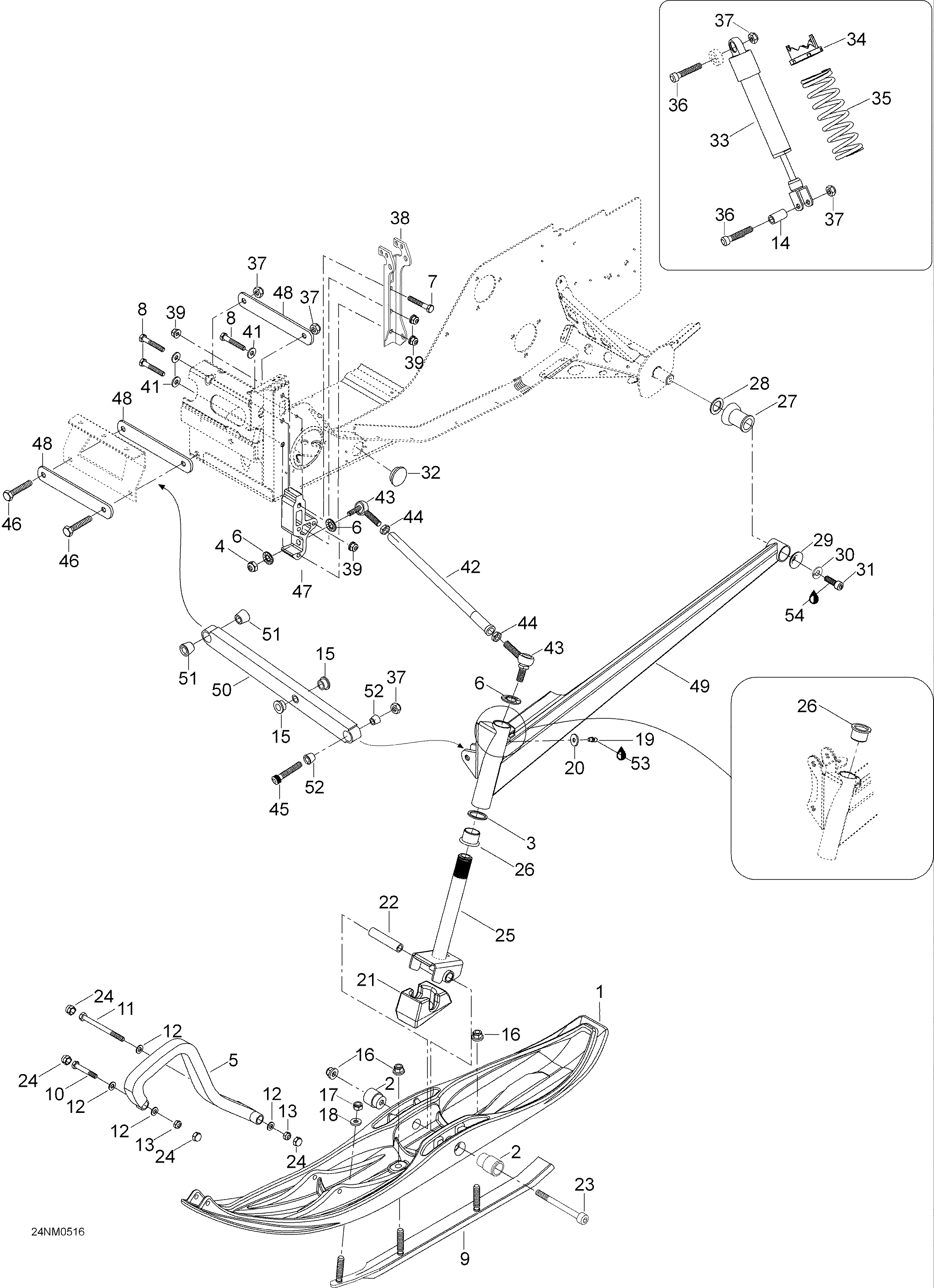

07- Front Suspension And Ski, 400, 400E для BRP Lynx Safari 400E - 2005
-
№АртикулНазвание
-
1605148440 Ski Plastic Ski Ass'ySki Plastic Ski Ass'y
-
2605348392 BushingBushing
-
3505070004 WasherWasher
-
433087 Elastic stop nut M12Elastic stop nut M12
-
5505070963 Handle, Black, B-160Handle, Black, B-160
-
620074 Lock washer M12Lock washer M12
-
740010 Hex. screw M8 x 55Hex. screw M8 x 55
-
840264 Hex. screw M8 x 90Hex. screw M8 x 90
-
9619400006 Runner carbide setRunner carbide set
-
1040009 Hex. screw M8 x 50Hex. screw M8 x 50
-
1140264 Hex. screw M8 x 90Hex. screw M8 x 90
-
1220004 Washer A8,4Washer A8,4
-
1333011 Elastic stop nut M8Elastic stop nut M8
-
145441433 SleeveSleeve
-
1531029 CushionCushion
-
1633074 Elastic flanged nut M10Elastic flanged nut M10
-
1733082 Elastic stop nut M10Elastic stop nut M10
-
1820028 WasherWasher
-
1934011 Grease fittingGrease fitting
-
2020007 Washer A6,4Washer A6,4
-
21605351977 Rubber damper. Safari 400_Safari 400 ERubber damper. Safari 400_Safari 400 E
-
22506133300 SpacerSpacer
-
2340225 Socket head screw M10 x 14Socket head screw M10 x 14
-
2428056 CapCap
-
255245502 Ski leg. Safari 400_Safari 400 ESki leg. Safari 400_Safari 400 E
-
26505070003 CushionCushion
-
27570062200 DamperDamper
-
28503146700 WasherWasher
-
29506079600 CupCup
-
3020014 Lock washer A8Lock washer A8
-
3140289 Socket head screw M8 x 25Socket head screw M8 x 25
-
32414916600 Nylon CapNylon Cap
-
3323147 Shock. Includes 33 to 35Shock. Includes 33 to 35
-
34503183700 Cam 45°Cam 45°
-
3640837 Socket head screw M10 x 55Socket head screw M10 x 55
-
3733012 Elastic stop nut M10Elastic stop nut M10
-
385247702 Shock bracketShock bracket
-
3933201 Elastic flanged nut M8Elastic flanged nut M8
-
4120104 Washer, hardened M8Washer, hardened M8
-
425346122 Upper armUpper arm
-
4331092 Ball jointBall joint
-
4433048 Nut M12Nut M12
-
4540858 Socket head screw M10 x 50Socket head screw M10 x 50
-
4640814 Hex. screw M10 x 110Hex. screw M10 x 110
-
475447559 L.H. Upper bracketL.H. Upper bracket
-
475447566 R.H. Upper bracketR.H. Upper bracket
-
485346112 Support plateSupport plate
-
49605248970 R.H. Swing arm (Full Moon)R.H. Swing arm (Full Moon)
-
49605248969 L.H. Swing arm (Full Moon)L.H. Swing arm (Full Moon)
-
50605249207 Lower arm ass'y (Full Moon). Includes 50 to 52Lower arm ass'y (Full Moon). Includes 50 to 52
-
515447769 SleeveSleeve
-
525447770 SleeveSleeve
-
53293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
54293800060 Loctite 243, 250 mlLoctite 243, 250 ml
