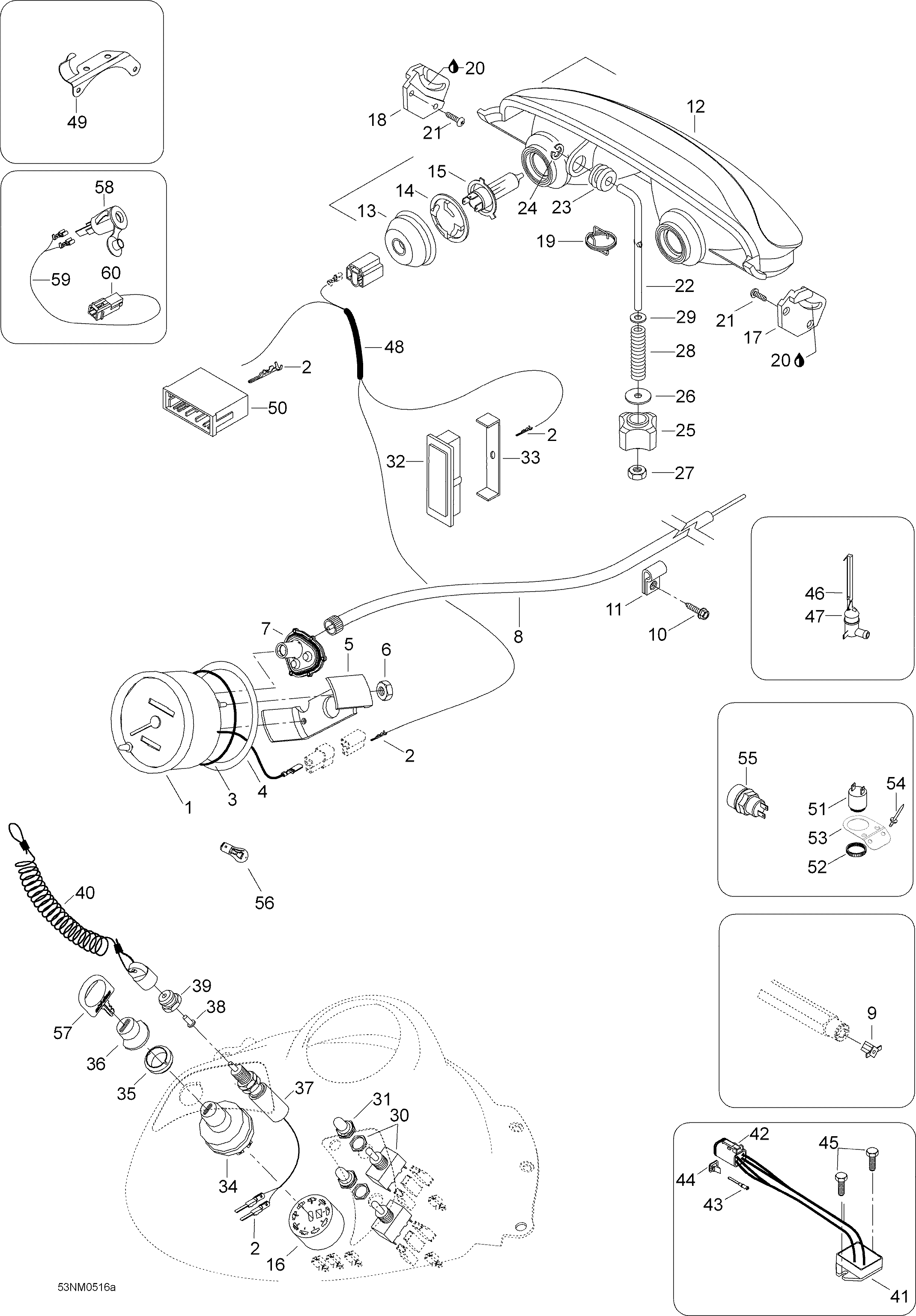

10- Electrical Acessories, 400E для BRP Lynx Safari 400E - 2005
-
№АртикулНазвание
-
1515175335 Speedometer (Kmh)Speedometer (Kmh)
-
242603 Male terminalMale terminal
-
3414807100 O-RingO-Ring
-
4517258500 WasherWasher
-
5414806500 Case HolderCase Holder
-
633062 Elastic flanged nut M5Elastic flanged nut M5
-
7515175400 Drive AngleDrive Angle
-
8415101500 Speedometer CableSpeedometer Cable
-
9572010100 Speedo Drive InsertSpeedo Drive Insert
-
1040870 ScrewScrew
-
11414176000 Clip, CableClip, Cable
-
12515175909 Halogen HeadlampHalogen Headlamp
-
13410607100 Protector CapProtector Cap
-
14410608300 Bulb HolderBulb Holder
-
15410504401 Halogen BulbHalogen Bulb
-
16572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
17517289300 RH SupportRH Support
-
18517289400 LH SupportLH Support
-
195447238 SpringSpring
-
20413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
2140177 Screw B4,8 x 16Screw B4,8 x 16
-
22517295800 Adjuster RodAdjuster Rod
-
23415100800 GrommetGrommet
-
24732610072 Push NutPush Nut
-
25515175548 HandleHandle
-
2620038 WasherWasher
-
2733010 Elastic stop nut M6Elastic stop nut M6
-
28415100600 SpringSpring
-
2920003 Washer A6,4Washer A6,4
-
30410107300 Heated Grip SwitchHeated Grip Switch
-
31515175281 Switch CoverSwitch Cover
-
325348029 Signal lamp assySignal lamp assy
-
335442157 Fit plateFit plate
-
3442019 Ignition switchIgnition switch
-
35410112100 Face NutFace Nut
-
36570013700 Switch BootSwitch Boot
-
37515175571 Switch BrakeSwitch Brake
-
38570151100 Plunger CapPlunger Cap
-
39515145900 Switch NutSwitch Nut
-
40515151500 Cap Ass’YCap Ass’Y
-
4540322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
46414681800 Level SwitchLevel Switch
-
47414681900 FloatFloat
-
485347991 Wiring harness, headlampWiring harness, headlamp
-
49515175254 Cable SupportCable Support
-
5042617 Connector housingConnector housing
-
51515176035 HornHorn
-
52414805101 Plastic NutPlastic Nut
-
535447941 BracketBracket
-
5436005 RivetRivet
-
55415101200 Reverse KnobReverse Knob
-
56410504200 Instrumentation BulbInstrumentation Bulb
