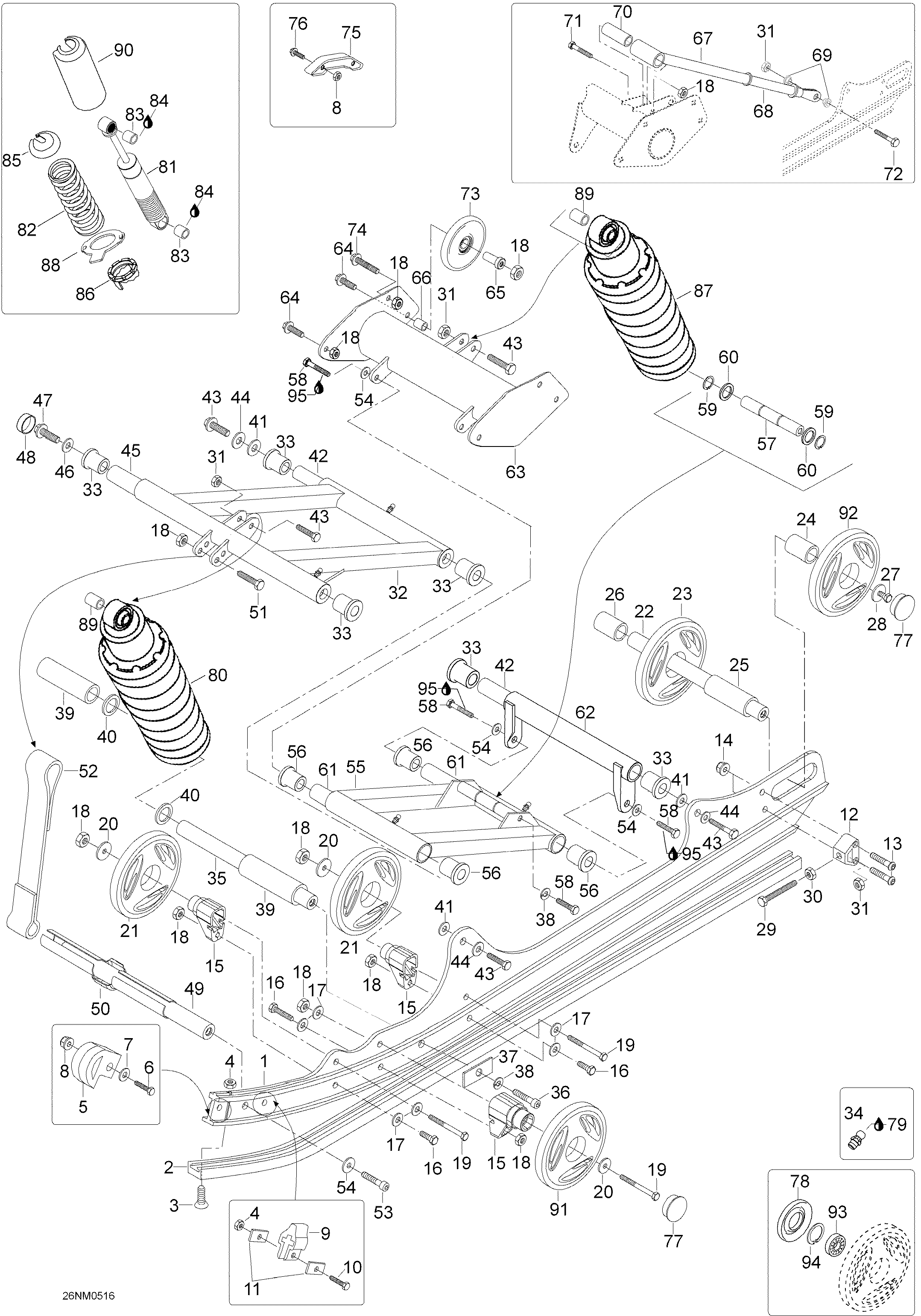

08- Rear Suspension для BRP Lynx Safari 400E - 2005
-
№АртикулНазвание
-
15246388 RunnerRunner
-
25347724 Runner shoeRunner shoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner ProtectorRunner Protector
-
640031 He. screw M6 x 25He. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Socket head screw M8 x 45Socket head screw M8 x 45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15605450182 SupportSupport
-
1640037 Hex. screw M8 x 25Hex. screw M8 x 25
-
1720104 Washer, hardened M8Washer, hardened M8
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940089 Hex. screw M8 x 75Hex. screw M8 x 75
-
20503183100 WasherWasher
-
21503191029 Wheel 135Wheel 135
-
225341511 Rear shaftRear shaft
-
23503189478 Thin Wheel 165Thin Wheel 165
-
245441512 SleeveSleeve
-
255441513 SleeveSleeve
-
265444099 SleeveSleeve
-
2740050 Hex. screw M10 x 35Hex. screw M10 x 35
-
28503183300 WasherWasher
-
2940239 Screw M10 x 100Screw M10 x 100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331024 CushionCushion
-
3434011 Crease nippleCrease nipple
-
355347633 Shaft, shockShaft, shock
-
3640536 Allen screw M10 x 45Allen screw M10 x 45
-
375447940 Support plateSupport plate
-
3820068 Lock washer D10Lock washer D10
-
395346649 SpacerSpacer
-
4031013 ShimShim
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Hex. screw M10 x 45Hex. screw M10 x 45
-
44512056700 Lock WasherLock Washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Hex. screw M12 x 60Hex. screw M12 x 60
-
485448025 CapCap
-
495343471 ShaftShaft
-
50605349381 Retainer for stopper strapRetainer for stopper strap
-
5140008 Hex. screw M8 x 45Hex. screw M8 x 45
-
52605449385 Stopper strapStopper strap
-
5340134 Allen screw M10 x 45Allen screw M10 x 45
-
5420105 Washer, hardened M10Washer, hardened M10
-
55605349313 Rear Arm Weld LightRear Arm Weld Light
-
5631027 CushionCushion
-
57605451897 Rearshock ShaftRearshock Shaft
-
5840014 Hex. screw M10 x 40Hex. screw M10 x 40
-
5931007 CirclipCirclip
-
6031091 ShimShim
-
615346865 ShaftShaft
-
625345535 Pivot armPivot arm
-
63605249274 Upper armUpper arm
-
6440058 Locking screw M8 x 20Locking screw M8 x 20
-
655447945 SleeveSleeve
-
665447946 SleeveSleeve
-
675347851 PipePipe
-
685347852 ShaftShaft
-
695447853 SleeveSleeve
-
705447848 SleeveSleeve
-
7140011 Hex. screw M6 x 40Hex. screw M6 x 40
-
7240042 Hex. screw M10 x 35Hex. screw M10 x 35
-
7346027 Idler Wheel blackIdler Wheel black
-
7440150 Locking screw M8 x 90Locking screw M8 x 90
-
755343191 Slide partSlide part
-
7640064 Hex. screw M6 x 40Hex. screw M6 x 40
-
77570063600 Wheel CapWheel Cap
-
78572089000 Labyrinth SealLabyrinth Seal
-
79293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
80605348905 Shock ass'y, front arm. Includes 80 to 86Shock ass'y, front arm. Includes 80 to 86
-
8123159 Shock ass'y, rear arm. Includes 80 to 86Shock ass'y, rear arm. Includes 80 to 86
-
8123160 Shock ass'y, rear armShock ass'y, rear arm
-
8225058 Spring, front armSpring, front arm
-
8225060 Spring, rear armSpring, rear arm
-
8331094 CushionCushion
-
84320006 Loctite 641Loctite 641
-
85230076 Spring stopperSpring stopper
-
86230078 CamCam
-
87605348906 Shock ass'y, rear armShock ass'y, rear arm
-
88605348748 Arm Adjusting Ass'YArm Adjusting Ass'Y
-
895446652 SleeveSleeve
-
905346754 ProtectorProtector
-
91503190797 Wheel 135Wheel 135
-
92503190856 Wheel 165 mmWheel 165 mm
-
93503190795 Ball BearingBall Bearing
-
94371901700 Circlip, InteriorCirclip, Interior
-
95293800060 Loctite 243, 10 mlLoctite 243, 10 ml
