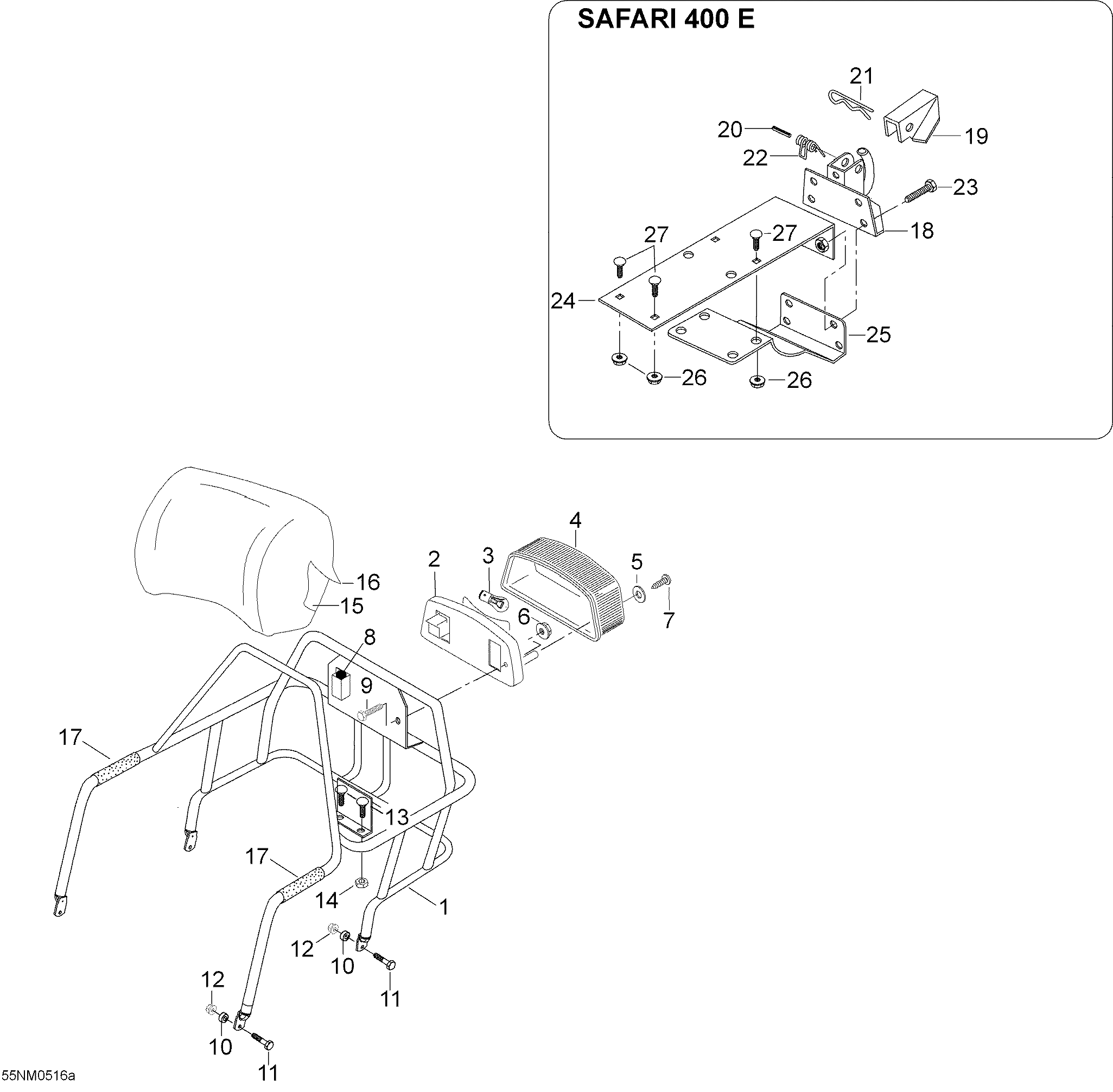

09- Rack, 400E для BRP Lynx Safari 400E - 2005
-
№АртикулНазвание
-
1605252065 Tail rackTail rack
-
-5341214 Taillamp assy. Includes 1 to 6Taillamp assy. Includes 1 to 6
-
2510004061 Light HousingLight Housing
-
3410504000 Bulb (Tail Lamp)Bulb (Tail Lamp)
-
4414513700 LensLens
-
5414516400 WasherWasher
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
7414516300 ScrewScrew
-
85345713 CoverCover
-
940032 Hex. screw M6 x 30Hex. screw M6 x 30
-
10548491 SleeveSleeve
-
1140387 Screw M8 x 30, WulockScrew M8 x 30, Wulock
-
1233201 Elastic flanged nut M8Elastic flanged nut M8
-
1340866 Locking screw M6 x 20Locking screw M6 x 20
-
1433200 Elastic flanged nut M6Elastic flanged nut M6
-
15539399 Foam, BackrestFoam, Backrest
-
165340917 CoverCover
-
17415050300 RH Grip (250 mm)RH Grip (250 mm)
-
-5344156 Hitch Assy. Includes 18 to 27, Safari 400 EHitch Assy. Includes 18 to 27, Safari 400 E
-
185344208 Hitch Weld. Safari 400 EHitch Weld. Safari 400 E
-
195440767 Lock. Safari 400 ELock. Safari 400 E
-
2041012 Spring Pin. Safari 400 ESpring Pin. Safari 400 E
-
2141029 Needle Pin. Safari 400 ENeedle Pin. Safari 400 E
-
22545693 Spring. Safari 400 ESpring. Safari 400 E
-
2340336 Screw M8 x 20. Safari 400 EScrew M8 x 20. Safari 400 E
-
24605450084 Bracket. Safari 400 EBracket. Safari 400 E
-
25605350085 Reinforcement. Safari 400 EReinforcement. Safari 400 E
-
2633200 Elastic flanged nut M6. Safari 400 EElastic flanged nut M6. Safari 400 E
-
2740866 Locking screw M6 x 20. Safari 400 ELocking screw M6 x 20. Safari 400 E
