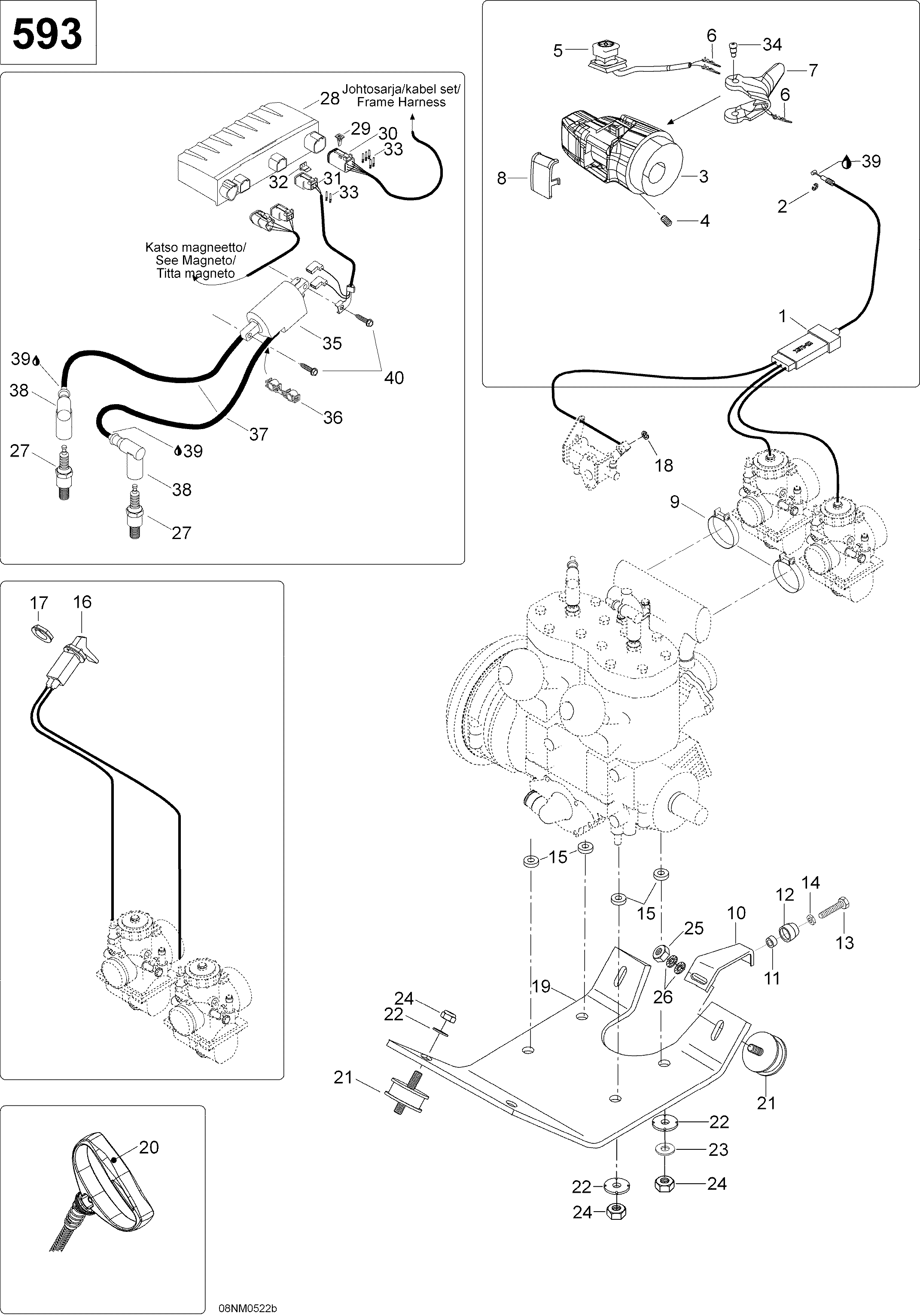

01- Engine And Engine Support, 593 для BRP Lynx ST600 - 2005
-
№АртикулНазвание
-
15246328 Throttle cableThrottle cable
-
231038 CirclipCirclip
-
3512059243 Throttle handle housingThrottle handle housing
-
4414440800 Screw M8 x 10Screw M8 x 10
-
5515175410 Switch killSwitch kill
-
642603 ConnectorConnector
-
7512059348 Throttle handleThrottle handle
-
8572100901 CoverCover
-
9414532700 ClampClamp
-
10539902 SupportSupport
-
112846014 Rubber sleeveRubber sleeve
-
12605449240 SleeveSleeve
-
1340121 Hex. screw M8 x 40Hex. screw M8 x 40
-
1433003 Nut M8Nut M8
-
155446347 SleeveSleeve
-
16535482 Choke cable. Includes 16 to 17Choke cable. Includes 16 to 17
-
17512059094 Plastic nutPlastic nut
-
1831035 CirclipCirclip
-
19605248305 Engine supportEngine support
-
20572084400 GripGrip
-
21570127700 Rubber damperRubber damper
-
22512056700 Lock washerLock washer
-
2320105 Washer, hardened M10Washer, hardened M10
-
2433012 Elastic stop nutElastic stop nut
-
2533004 Nut M10Nut M10
-
2620068 Lock washer D10Lock washer D10
-
27512059533 Spark plug , BR 9 ECSSpark plug , BR 9 ECS
-
28605350037 MPEM-moduleMPEM-module
-
29278000737 WedgeWedge
-
30278000736 Female connector housingFemale connector housing
-
31409207300 Female connector housingFemale connector housing
-
3242609 WedgeWedge
-
33278000632 ConnectorConnector
-
34732601143 ScrewScrew
-
355246315 Ignition coil ass'y. Includes 31 to 33 and 35-37Ignition coil ass'y. Includes 31 to 33 and 35-37
-
36410914600 ClipClip
-
37278001268 Spark plug wireSpark plug wire
-
38278000237 Spark plug protectorSpark plug protector
-
39293550004 Dielectric grease, 140gDielectric grease, 140g
-
4040377 Self tapping screw M6 x 20Self tapping screw M6 x 20
