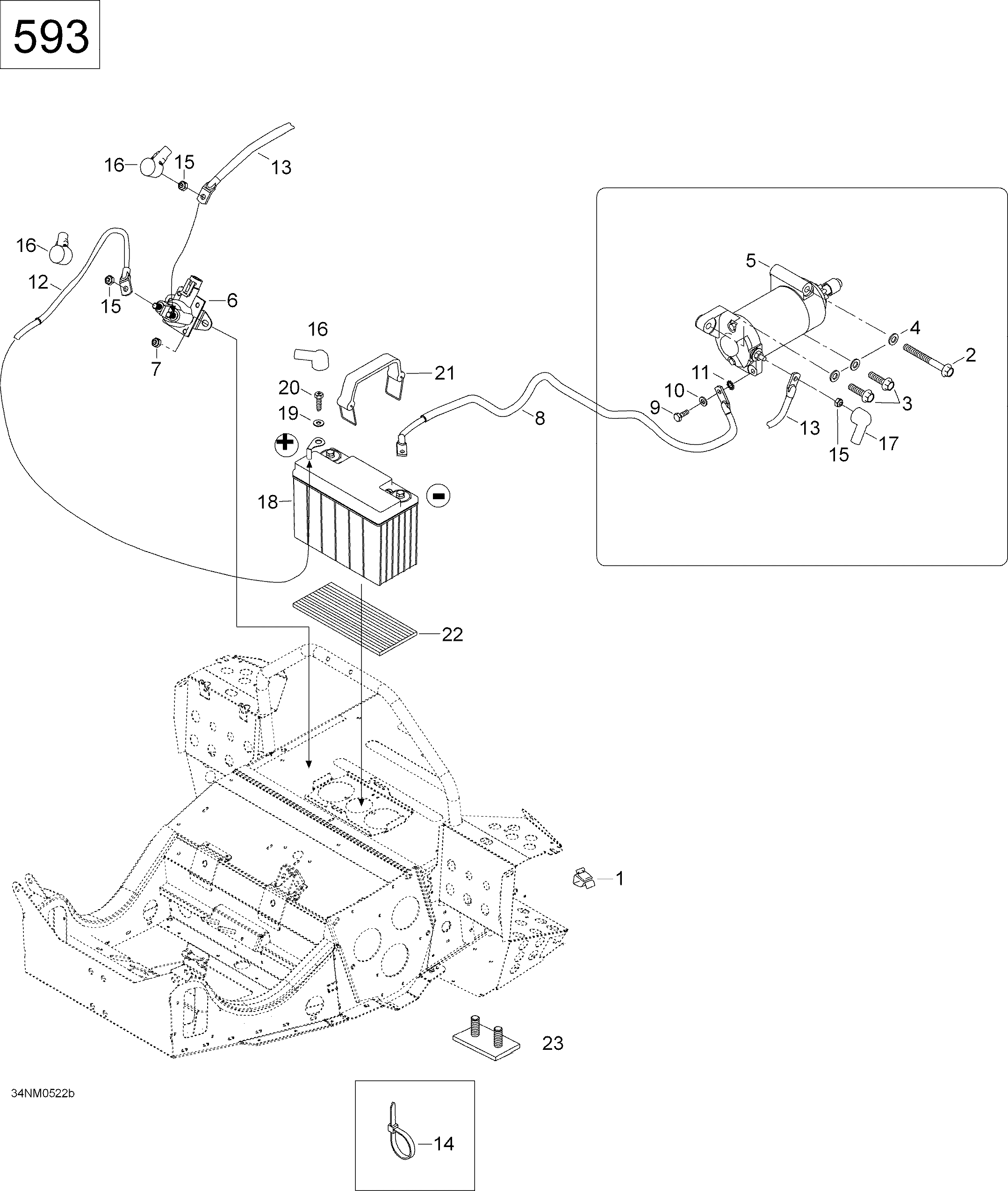

10- Battery And Starter, 600 для BRP Lynx ST600 - 2005
-
№АртикулНазвание
-
1414227300 ClipClip
-
2207587544 Screw M8 x 75Screw M8 x 75
-
3207583044 Screw M8 x 30Screw M8 x 30
-
4250200008 WasherWasher
-
5515176003 StarterStarter
-
6278001802 RelayRelay
-
733200 Elastic flanged nut M6Elastic flanged nut M6
-
85446597 Ground wireGround wire
-
9207361644 Hex. screw M6 x 16Hex. screw M6 x 16
-
1020003 Washer A6,4Washer A6,4
-
1120017 Serrated lock washer M6Serrated lock washer M6
-
12
-
13
-
1427100 Tie-rapTie-rap
-
1533010 Elastic stop nut M6Elastic stop nut M6
-
16570151000 Cap protectionCap protection
-
17278001771 Cap protectionCap protection
-
18515175642 Battery. Includes 18 to 20Battery. Includes 18 to 20
-
19391302100 WasherWasher
-
20207161644 ScrewScrew
-
21515175475 Battery strapBattery strap
-
22605350237 RubberRubber
-
235448286 Support plateSupport plate
