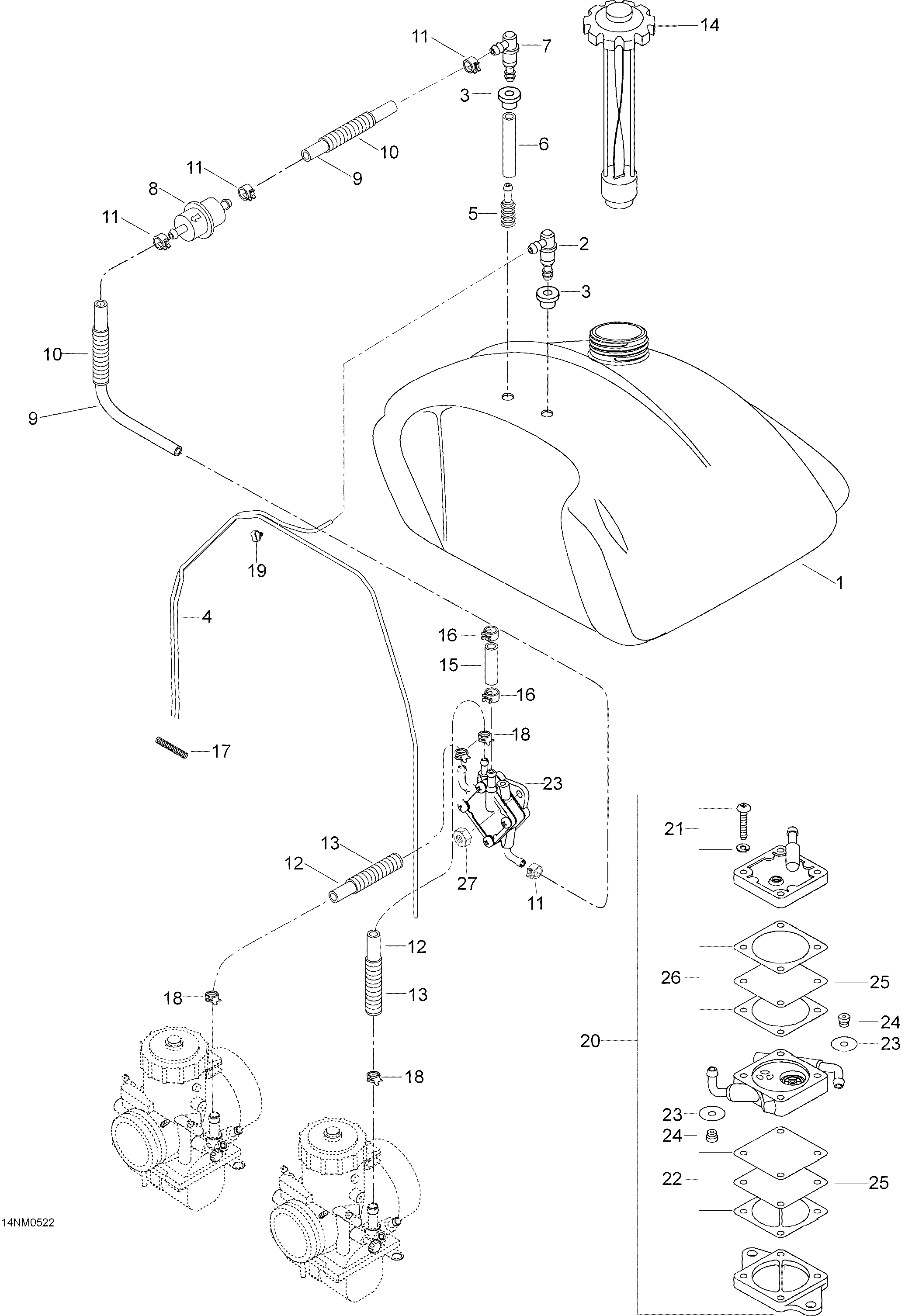

02- Fuel System для BRP Lynx ST600 - 2005
-
№АртикулНазвание
-
1519393 Fuel tankFuel tank
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 AirpipeAirpipe
-
5414872100 Fuel filterFuel filter
-
639048 Fuel hoseFuel hose
-
75341709 Connector-maleConnector-male
-
8414363600 Fuel filter. ST 550Fuel filter. ST 550
-
8414536500 Fuel filter. ST 600Fuel filter. ST 600
-
939004 Fuel hose. ST 550Fuel hose. ST 550
-
939046 Fuel hose. ST 600Fuel hose. ST 600
-
1028012 Spiral tube. ST 550Spiral tube. ST 550
-
1028015 Spiral tube. ST 600Spiral tube. ST 600
-
11414554800 ClampClamp
-
11414415200 ClampClamp
-
1239004 Fuel hoseFuel hose
-
1328012 Spiral tubeSpiral tube
-
14605349994 CapCap
-
1539001 Fuel hoseFuel hose
-
16414420700 ClampClamp
-
1725003 SpringSpring
-
1827086 ClampClamp
-
19513032923 Clamp tubeClamp tube
-
2019058 Fuel pump. Includes 20 to 26, ST 550Fuel pump. Includes 20 to 26, ST 550
-
2019113 Fuel pump. ST 600Fuel pump. ST 600
-
22404902300 GasketGasket
-
23404902100 GrommetGrommet
-
24275500042 ValveValve
-
25404902200 DiaphragmDiaphragm
-
26404902400 GasketGasket
-
2733010 Elastic stop nut M6Elastic stop nut M6
