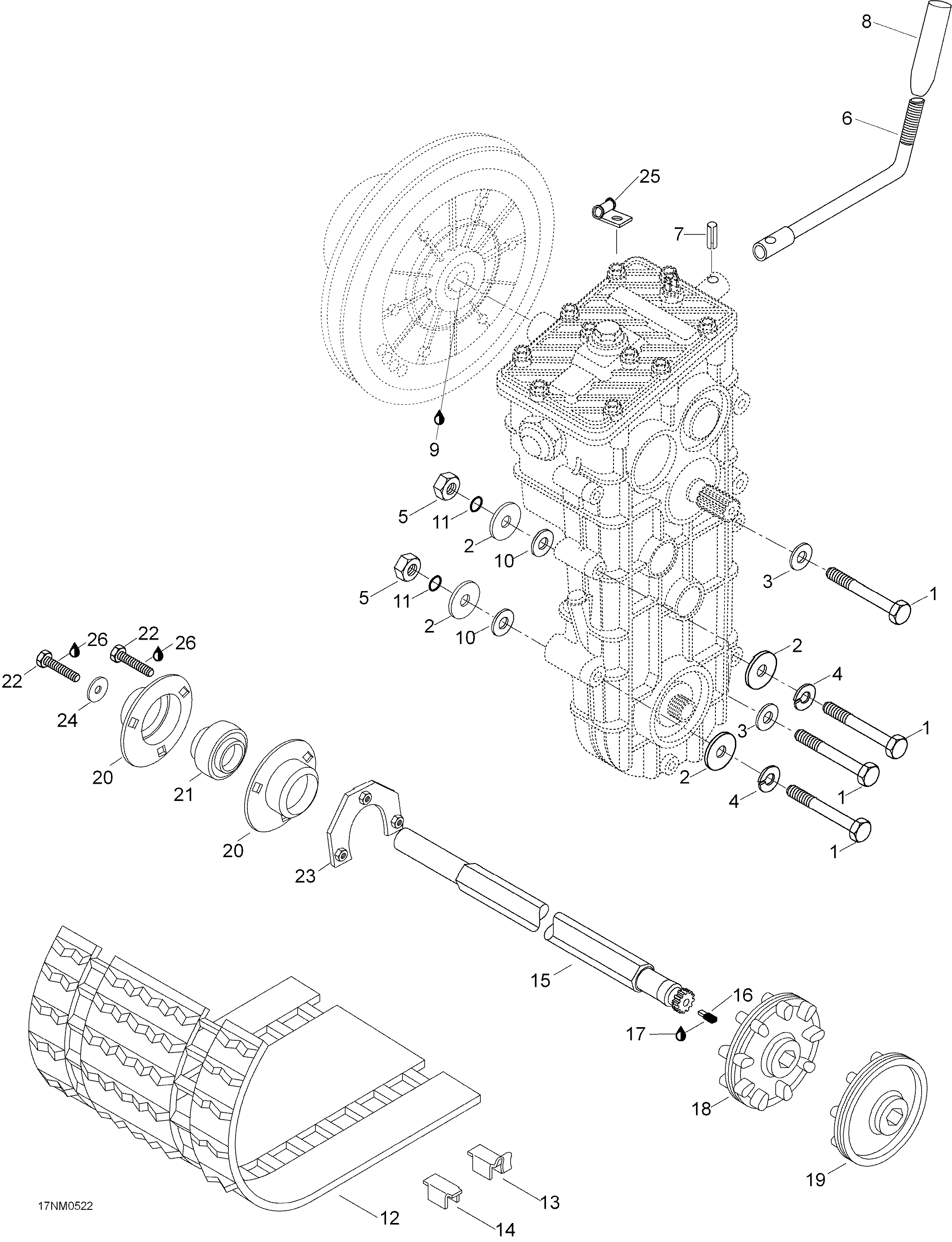

05- Drive System для BRP Lynx ST600 - 2005
-
№АртикулНазвание
-
140012 Hex. screw M8 x 80. Includes 1 to 3Hex. screw M8 x 80. Includes 1 to 3
-
220010 Washer A8.4Washer A8.4
-
320004 Washer A8.4Washer A8.4
-
420014 Lock washer A8. Includes 4 to 9Lock washer A8. Includes 4 to 9
-
533011 Elastic stop nut M8Elastic stop nut M8
-
65340902 Shift handleShift handle
-
741008 Spring key. ST 550Spring key. ST 550
-
741007 Spring key. ST 600Spring key. ST 600
-
828247 ButtonButton
-
9293800070 Loctite 767, Antiseize lubricant, 8ozLoctite 767, Antiseize lubricant, 8oz
-
1020077 Washer A8.4. ST 550Washer A8.4. ST 550
-
1020077 Washer A8.4. ST 600Washer A8.4. ST 600
-
11506151140 O-ringO-ring
-
1213055 Track. Includes 12 to 14, ST 550Track. Includes 12 to 14, ST 550
-
1213070 Track. Includes 12 to 14, ST 600Track. Includes 12 to 14, ST 600
-
135318323 Cleat guideCleat guide
-
145318322 Slide guideSlide guide
-
-5345116 Drive axle assy. Includes 15 to 19Drive axle assy. Includes 15 to 19
-
155345117 Drive axleDrive axle
-
16542013 InsertInsert
-
17293800005 Loctite 271, 10mlLoctite 271, 10ml
-
18414931800 Sprocket 8-teethSprocket 8-teeth
-
19415067400 Sprocket 8-teethSprocket 8-teeth
-
20534430 Bearing housing ass'yBearing housing ass'y
-
2131UC205 Ball bearingBall bearing
-
2240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
23546421 Thrust ringThrust ring
-
24546336 WasherWasher
-
255443134 ClipClip
-
26293800060 Loctite 243, 10mlLoctite 243, 10ml
