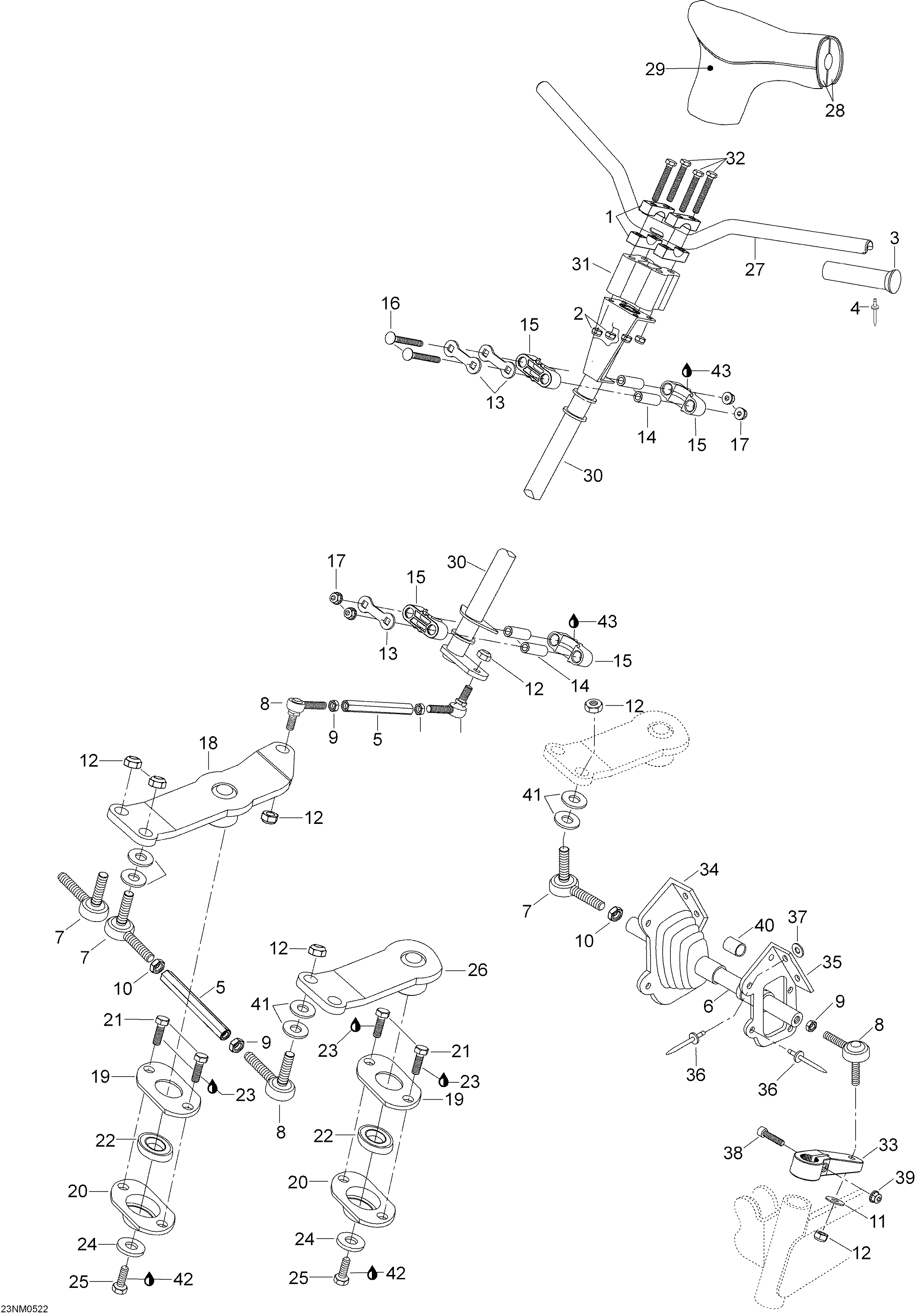

07- Steering System для BRP Lynx ST600 - 2005
-
№АртикулНазвание
-
1548448 FasteningFastening
-
233011 Elastic stop nut M8Elastic stop nut M8
-
35340464 HandleHandle
-
436005 RivetRivet
-
5605448308 Tie rodTie rod
-
6605448307 Tie rod. ST 550Tie rod. ST 550
-
6605450185 Tie rod. ST 600Tie rod. ST 600
-
7506151495 L.H. Ball jointL.H. Ball joint
-
8506151492 R.H. Ball jointR.H. Ball joint
-
933019 Nut M10 R.H.Nut M10 R.H.
-
1033017 Nut M10 L.H.Nut M10 L.H.
-
1120105 Washer, hardened M10Washer, hardened M10
-
1233023 Nut elastic M10Nut elastic M10
-
13506150600 Plate stopperPlate stopper
-
14506150500 Bushing-housingBushing-housing
-
15506150400 Half-housingHalf-housing
-
16207787044 Screw M8 x 70Screw M8 x 70
-
1733201 Elastic flanged nut M8Elastic flanged nut M8
-
18605348402 R.H. Lever weldR.H. Lever weld
-
195345380 PlatePlate
-
20605350644 Bearing SupportBearing Support
-
2140337 Hex. screw M8 x 16Hex. screw M8 x 16
-
22405404500 BearingBearing
-
23293800005 Loctite 271, 10mlLoctite 271, 10ml
-
245446279 WasherWasher
-
2540336 Hex. screw M8 x 20Hex. screw M8 x 20
-
26605348403 L.H. Lever weldL.H. Lever weld
-
27605249033 Steering handle barSteering handle bar
-
28605250306 Foam, rear partFoam, rear part
-
28605250305 Foam, front partFoam, front part
-
29605248761 CoverCover
-
30605250189 Steering paleSteering pale
-
31605349584 Extension, 60 mmExtension, 60 mm
-
3240124 Socket head screw M8 x 100Socket head screw M8 x 100
-
335348261 Steering armSteering arm
-
34570024800 R.H. Cap rod tieR.H. Cap rod tie
-
34570024900 L.H. Cap rod tieL.H. Cap rod tie
-
35517241200 R.H. plate-capR.H. plate-cap
-
35517241300 L.H. plate-capL.H. plate-cap
-
3636036 RivetRivet
-
3720008 Washer A5,3Washer A5,3
-
3840828 Socket head screw M8 x 35Socket head screw M8 x 35
-
3933201 Elastic flanged nut M8Elastic flanged nut M8
-
40572036500 CushionCushion
-
4120105 Washer , hardened M10. ST 600Washer , hardened M10. ST 600
-
42293800060 Loctite 243, 10mlLoctite 243, 10ml
-
43413711500 Synthetic greaseSynthetic grease
