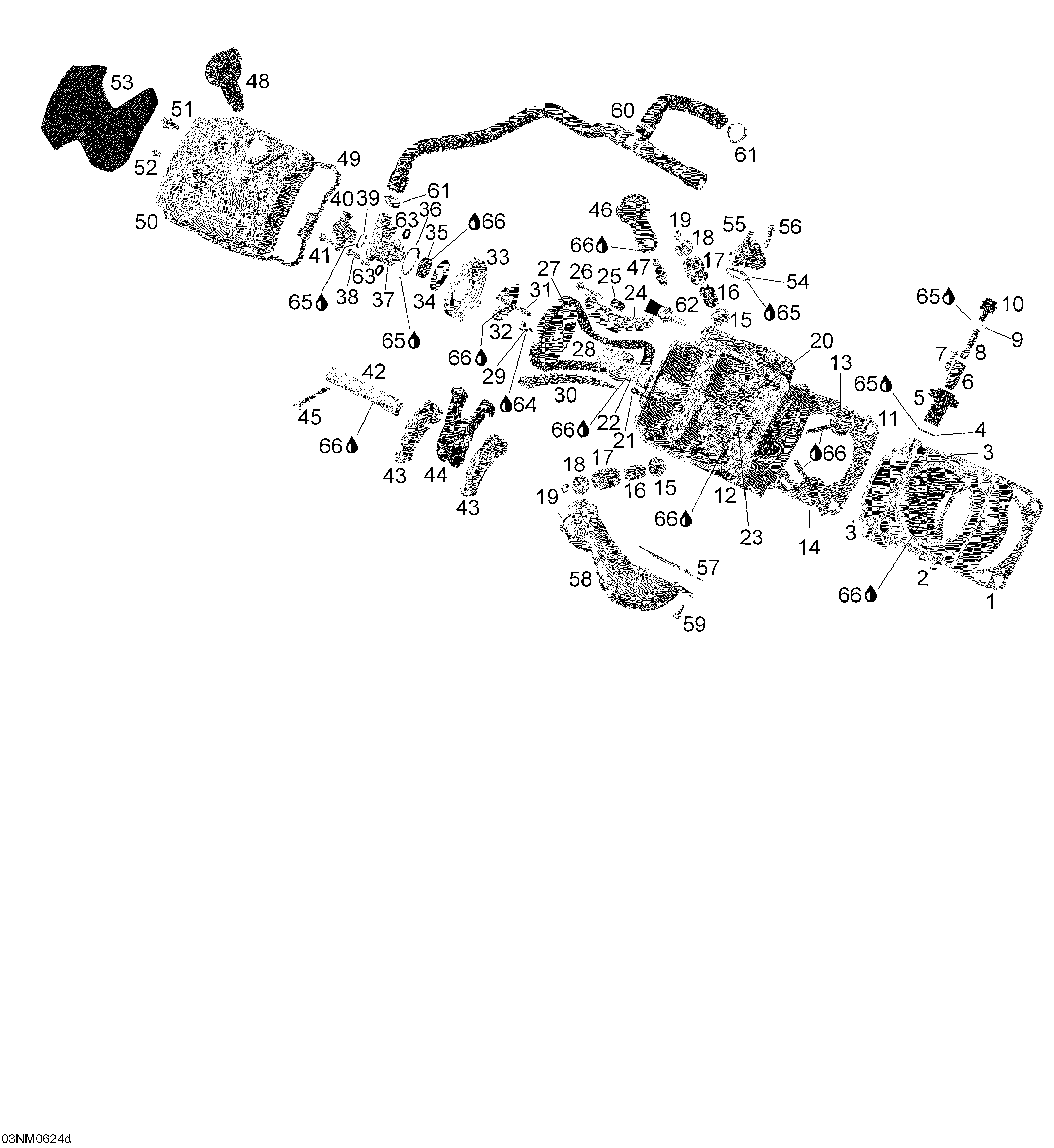

01- Cylinterhead front для BRP Lynx Expedition TUV V-1300 - 2006
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420623212 Cylinder ass’y. Includes 2 to 3Cylinder ass’y. Includes 2 to 3
-
3420929650 Drive pin 5 x 10Drive pin 5 x 10
-
4420430370 O-ringO-ring
-
5420236510 Chain tensioner housingChain tensioner housing
-
6420236520 Chain tensioner plungerChain tensioner plunger
-
7420440232 Screw M6 x 25Screw M6 x 25
-
8420238120 SpringSpring
-
9420250890 O-ringO-ring
-
10420641150 Plug screwPlug screw
-
11420950660 GasketGasket
-
12420613475 Cylinder head ass’yCylinder head ass’y
-
13420254027 Exhaust valve 31 mmExhaust valve 31 mm
-
14420254290 Intake valve 38 mmIntake valve 38 mm
-
15420630200 Valve stem sealValve stem seal
-
16420838280 Valve spring insideValve spring inside
-
17420238180 Valve springValve spring
-
18420254281 Valve spring retainerValve spring retainer
-
19420253645 Valve cotterValve cotter
-
20420641020 Screw M11 x 215Screw M11 x 215
-
21420440612 Screw M6 x 105Screw M6 x 105
-
22420837575 Camshaft (front)Camshaft (front)
-
23420851692 Camshaft guideCamshaft guide
-
24420236540 Chain tension guideChain tension guide
-
25420247100 Distance sleeveDistance sleeve
-
26420440272 Screw M6 x 35Screw M6 x 35
-
27420297957 Camshaft chainCamshaft chain
-
28420254307 Timing gear (38 teeth)Timing gear (38 teeth)
-
29420840031 Screw M6 x 12Screw M6 x 12
-
30420236500 Chain guideChain guide
-
31420220790 Deko shaftDeko shaft
-
32420231064 Centrifugal weight ass'yCentrifugal weight ass'y
-
33420660036 CoverCover
-
34420627494 Thrust washerThrust washer
-
35420630125 V-ringV-ring
-
36420950870 O-ringO-ring
-
37420610272 Camshaft coverCamshaft cover
-
38420440162 Screw M6 x 16Screw M6 x 16
-
39420430220 O-ringO-ring
-
40420660275 Connecting coverConnecting cover
-
41420440162 Screw M6 x 16Screw M6 x 16
-
42420854599 Rockerarmshaft ass'yRockerarmshaft ass'y
-
43420254328 Rockerarm ass'y, exhaustRockerarm ass'y, exhaust
-
44420254315 Rockerarm ass'y, inletRockerarm ass'y, inlet
-
45420641080 Screw M8 x 72Screw M8 x 72
-
46420851751 Spark plug pipeSpark plug pipe
-
47707000246 Spark plug, DCP-R8ESpark plug, DCP-R8E
-
48420664020 Stick coilStick coil
-
49420630071 Profile sealing ringProfile sealing ring
-
50420610185 Valve coverValve cover
-
51420440307 Screw M6 x 30Screw M6 x 30
-
52420641488 Screw M6 x 10Screw M6 x 10
-
53420660201 Valve coverValve cover
-
54420950890 O-ringO-ring
-
55420811700 Connecting coverConnecting cover
-
56420440232 Screw M6 x 25Screw M6 x 25
-
57420950680 gasketgasket
-
58420250640 Exhaust manifoldExhaust manifold
-
59420660713 ScrewScrew
-
60420853153 TubeTube
-
61420222425 ClampClamp
-
62420230415 Temperature sencorTemperature sencor
-
63293800060 O-ringO-ring
-
64293800080 Loctite 243 10 mlLoctite 243 10 ml
-
65293550014 Multi purpose greaseMulti purpose grease
-
66293600054 Oil, 0 W 40, 12 x 1 literOil, 0 W 40, 12 x 1 liter
